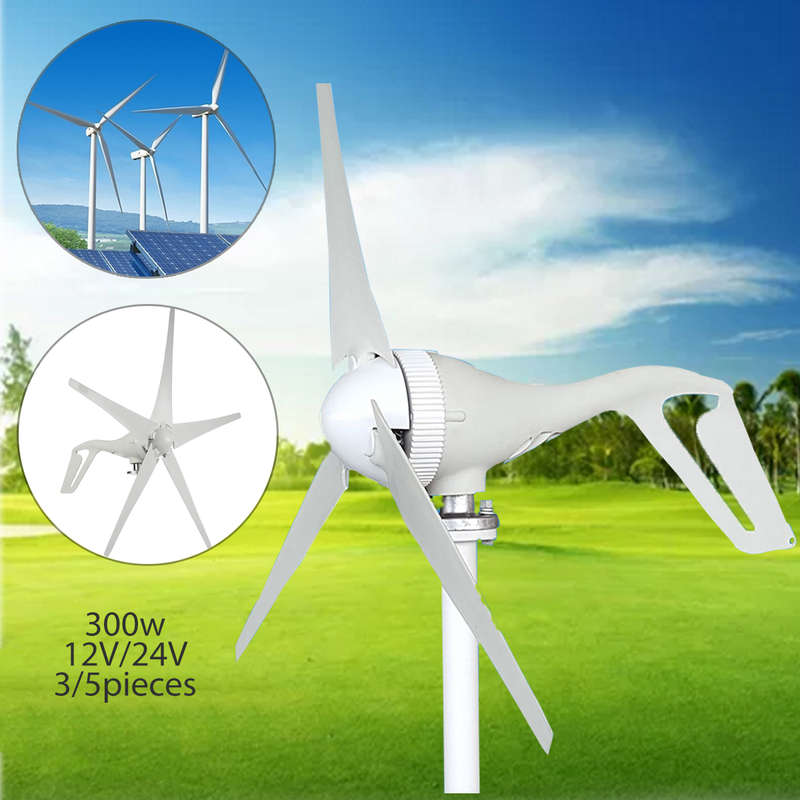

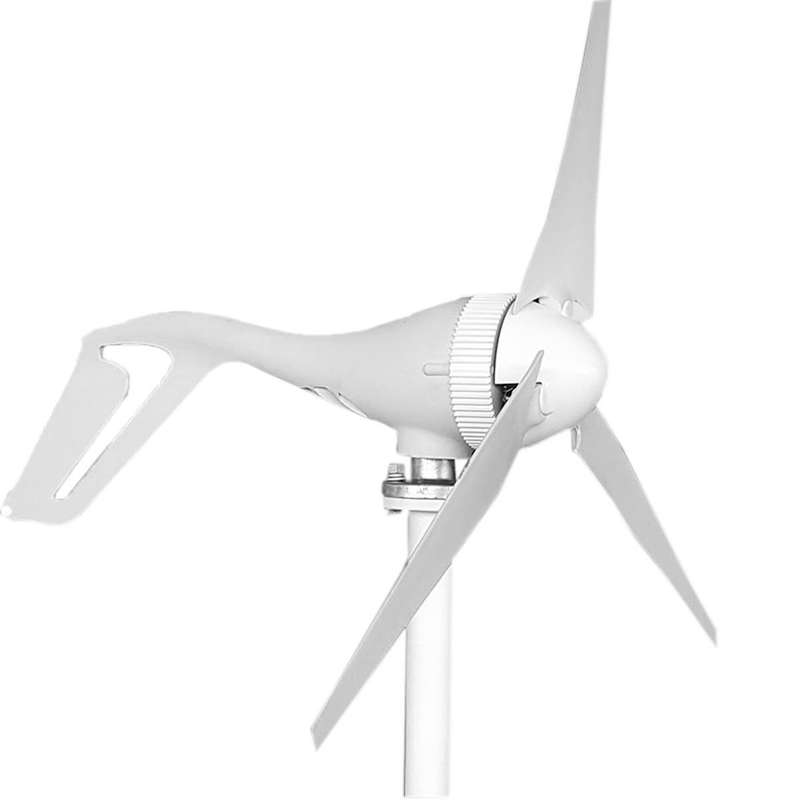

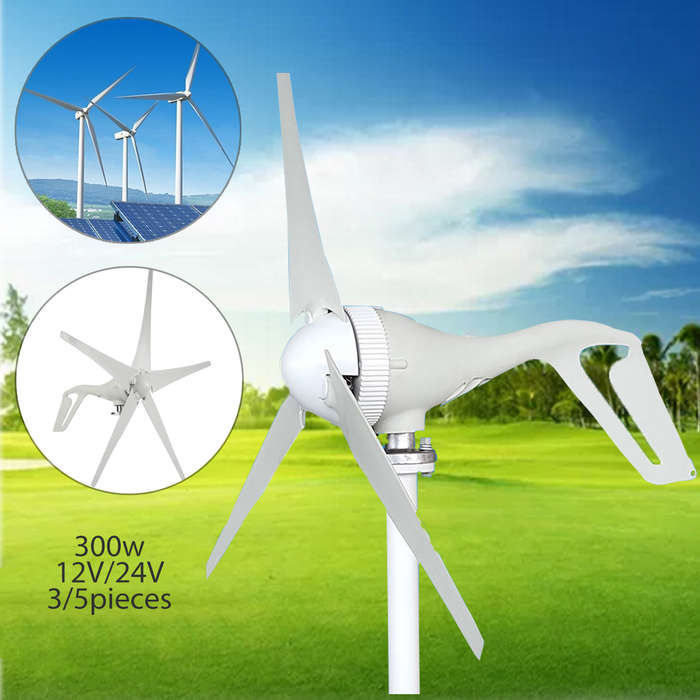

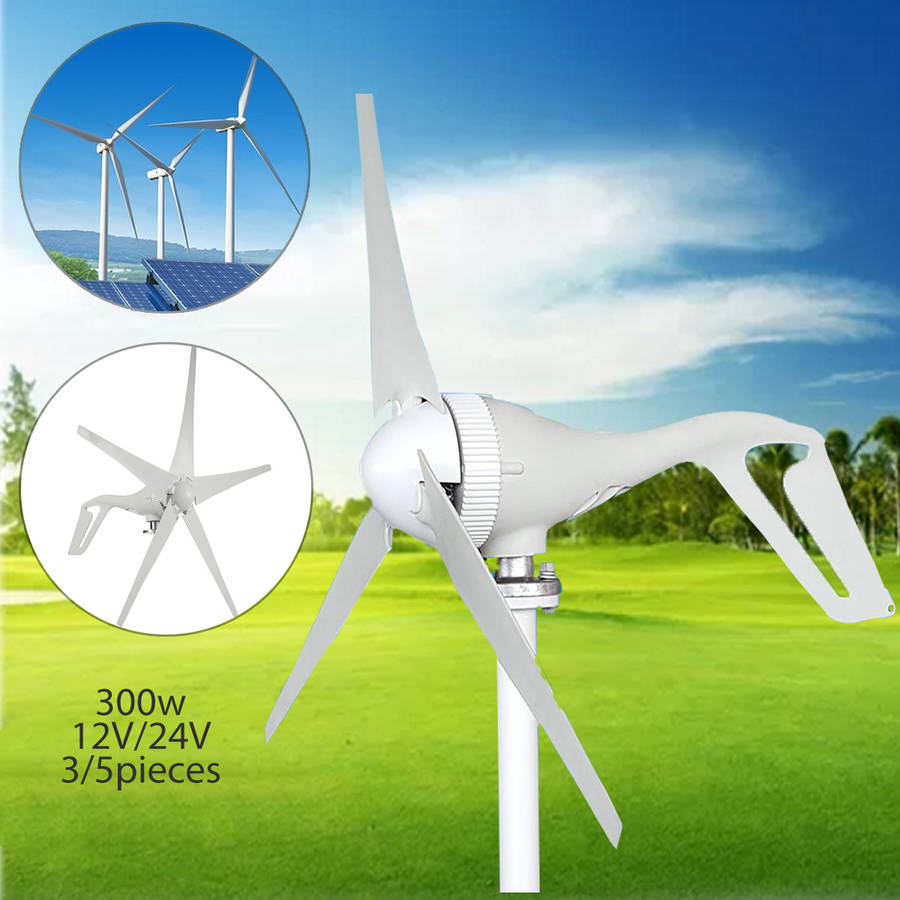

Package weight: 7.66 kgSpecifications:
- Material:
Leaf material: nylon fiber
Magnet material: neodymium Iron boron
Generator housing material: die-cast aluminum
- Colour: white
- Size:71*28*20.5cm
-Weight:7000g
-Rated power: 300W
-Rated voltage: 12 / 24V
-Starting wind speed: 2.0m / s
Rated wind speed: 10m / s
-Safe wind speed: 55m / s

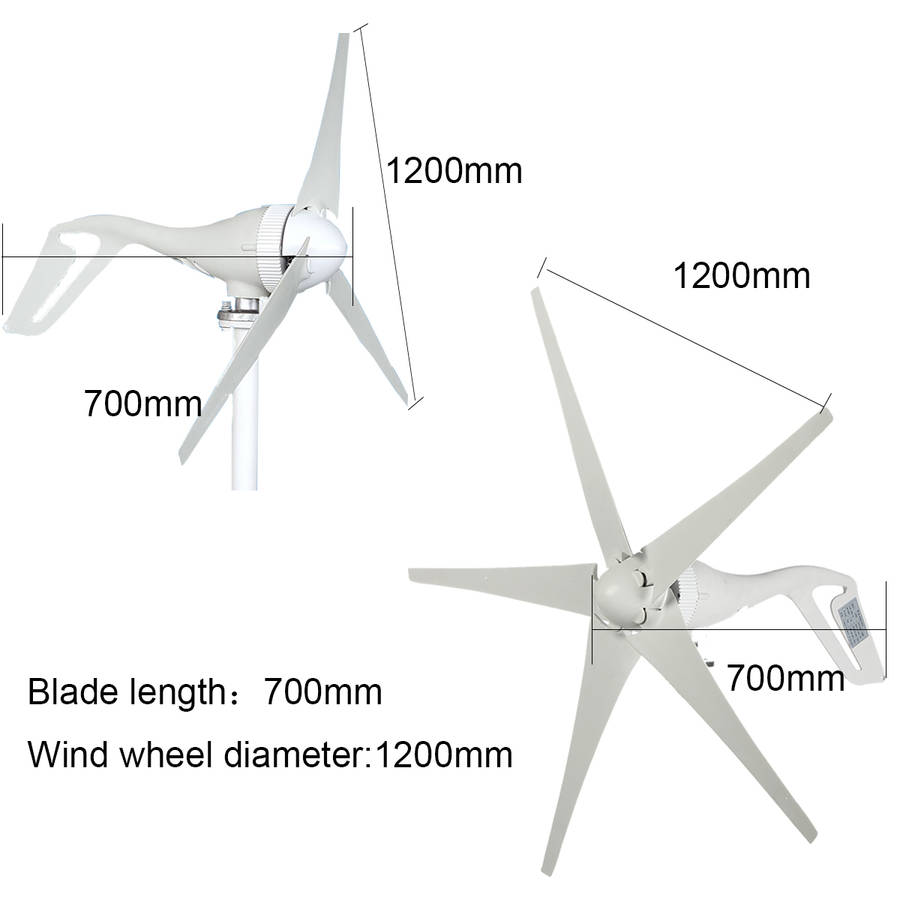

-Wind wheel diameter: 1.2m
-Number of leaves: 3 pieces / 5 pieces
-Wind power and type: three-phase AC permanent magnet synchronous generator
-Control system: electromagnetic, wind wheel side
-Speed control mode: automatically adjust the wind angle
-Operating temperature: -40 ￢ﾄﾃ - 80 ￢ﾄﾃ
-Lubrication method: filling grease
Style Note:
#1: 12V 3pcs fan blades
#2: 12V 5pcs fan blades
#3: 24V 3pcs fan blades
#4: 24V 5pcs fan blades
Features:
- Human-friendly design,easy to install and maintain;
-Patented generator, low torque at start-up, high conversion rate;
- Low start-up speed,high wind power utilization, light,cute, low vibration;
-The hub groove and the blade are designed to match the blade and the hub;
-The use of double groove ball bearings thicker, when the machine is running, not easy to shake.
- The use of high temperature Teflon wire, the generator overload heat, easy to burn the wire;
-Blade built-in copper inserts, bolts will not damage when the nylon fiber damage, it is not easy to deformation or fracture;
Package Includes:
1 x Small wind turbines
