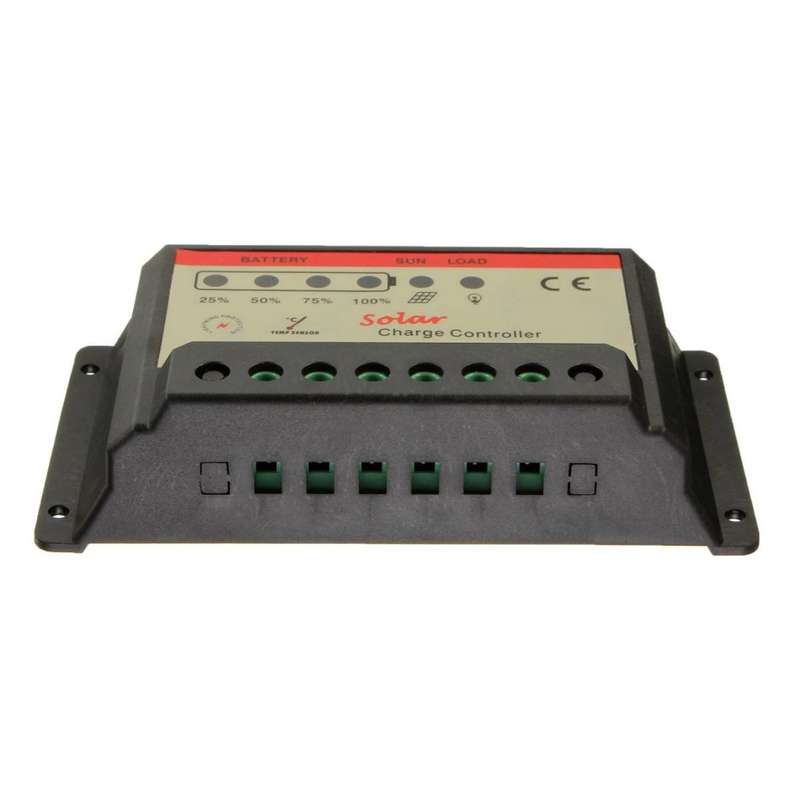

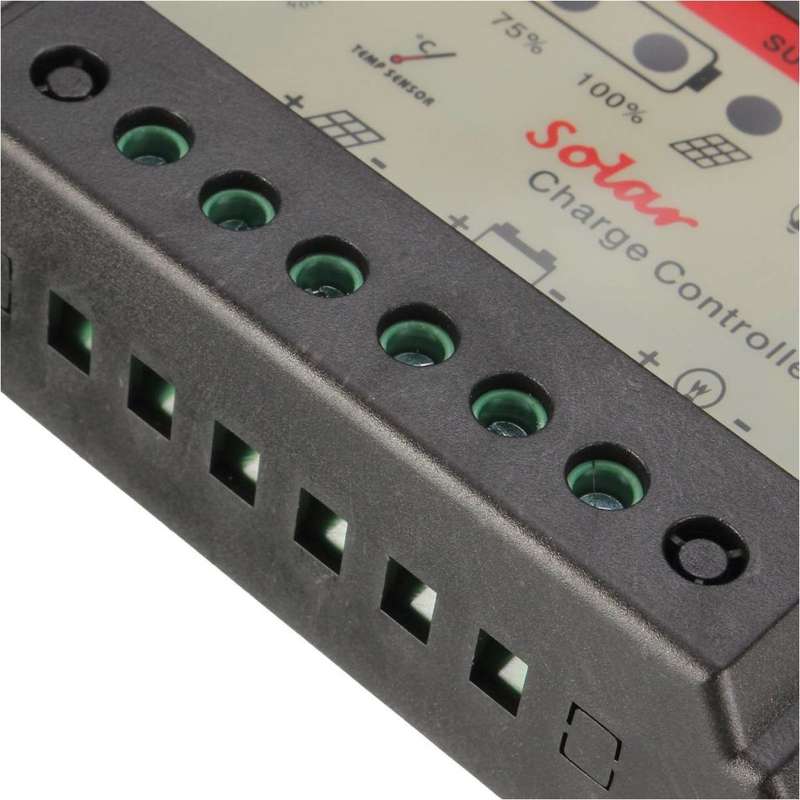

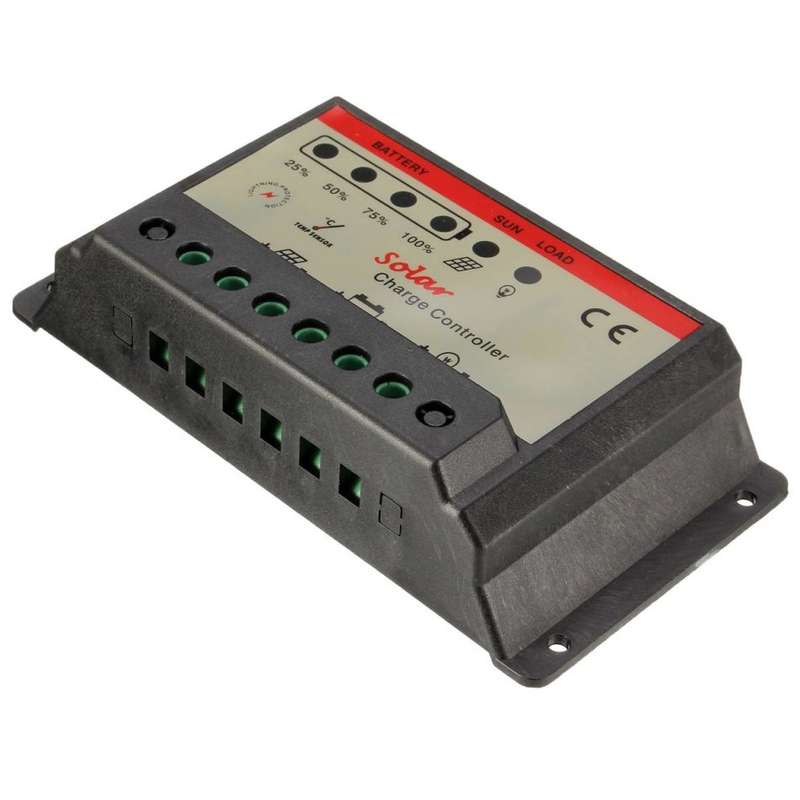

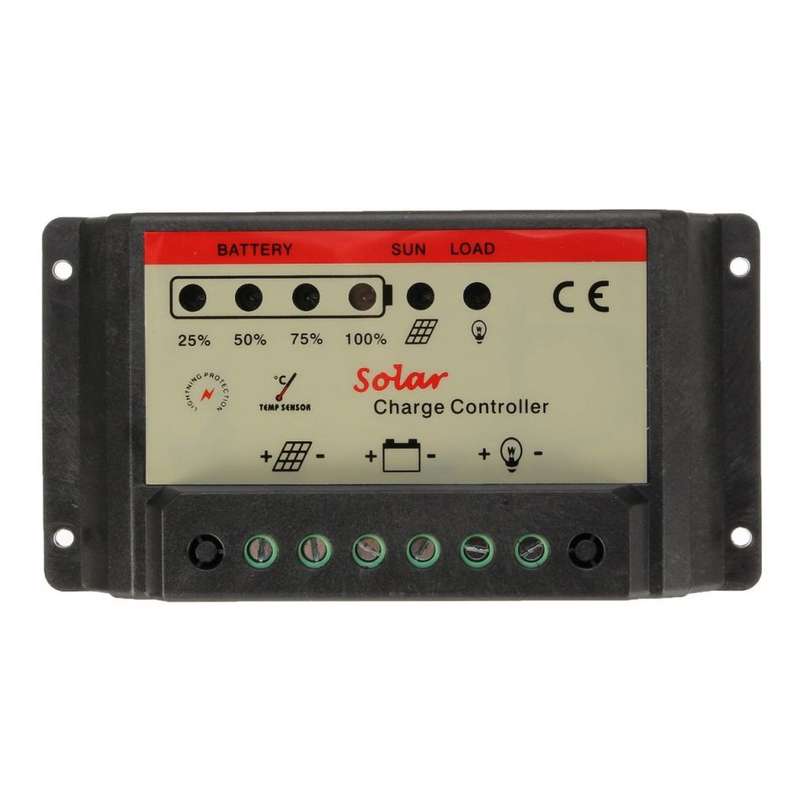

12V/24V 30A PWM Solar Charger Controller Battery Charging Regulator
Features:
Build-in industrial mirco controller Intuitive 25%-100% power indicator Fully 4-stage PWM charge management Reverse current protection, low heat production Build-in short-circuit protection, open-circuit protection,reverse protection, over-load protection
Specification:
Batt voltage: 12V/24V Auto Adapt Current: 30A Max solar input: 41V Charge drop: <0.2V Disharge drop: <0.25V Equalization: 14.6V Bulk: 14.4V Acceptance: 14.2V PWM Float: 13.8V Charge reconnect: 13V Disharge stop: 10.8V Disharge reconnect: 12.6V Self-consume: <10mA Voltage of open light: Solar panel 8V(Light lights delay) Voltage of close light: Solar panel 8V(Light off delay) Temperature compensation: N/C Operating temperature: -35ￂￂￂ~60ￂￂￂ Size: 134x70x32mm(Length,Height,Thickness)
Note: this charger only works to charge lead acid batteries (OPEN, AGM, GEL), NOT lipos, nickel metal hydride, or other batteries.
