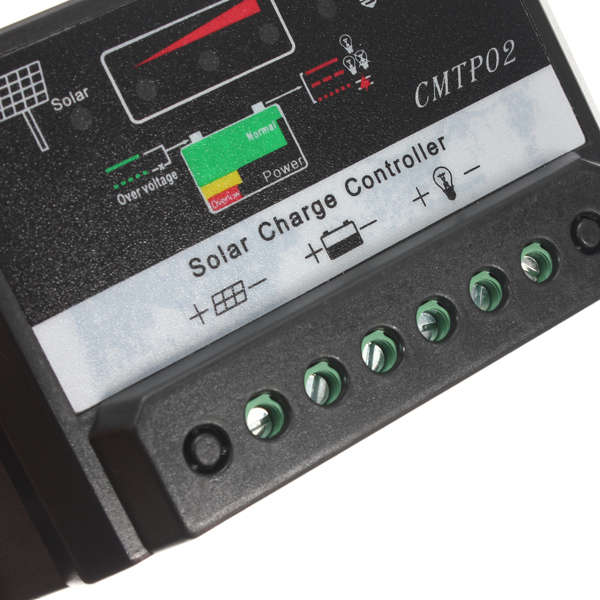

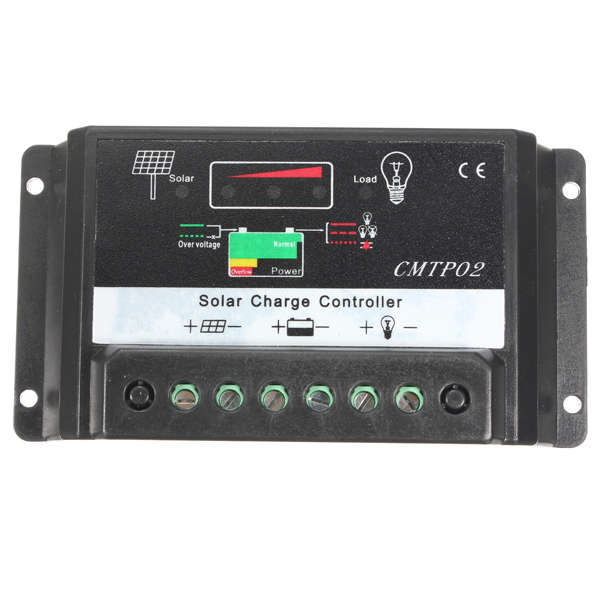

12V 24V 30A Solar Lighting Panel Battery Regulator Charge Controller CE.
MPPT solar charge controller MPPT10-60 : Compared with normal solar charge controller, this MPPT controller
could increase efficiency by 10%-30%.
This controller can charge and discharge at the same time.
This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.
Feature : ISO 9001 Certified
30A Solar Panel Battery Regulator Charge Controller
Electronic protection
Fully automatic operation
PWM charge mode(SOC)
Micro-controller digital accuracy
Suitable for all 12/24V DC lamps

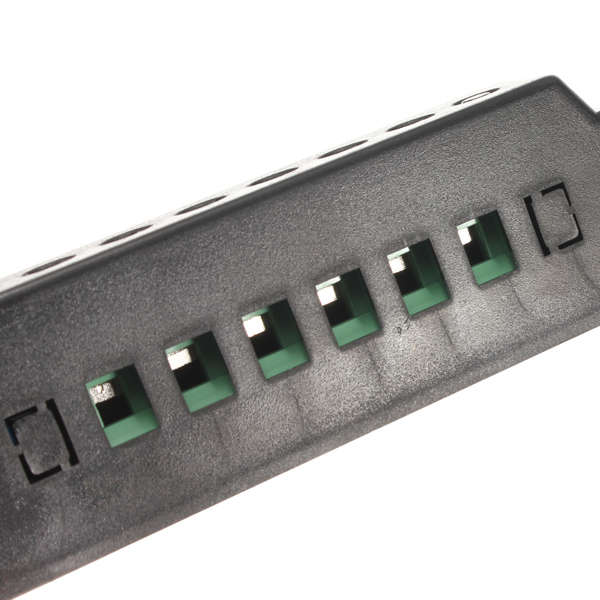

Big terminals,big distance between terminals
Double digital LED display, numbers equal to timer setting
Temperature compensation(with external temperature sensor)
Function :
Always keep the battery on fill voltage condition.
Prevent the battery from over-charging.
Prevent the battery from over-discharging.
Prevent the battery from reverse charging to solar panels during nights.
Reverse Polarity Protection for Battery
Reverse Polarity Protection for Solar Panels
When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of
battery is back to normal and the load will restart working.
Thunder protection :
According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage,
the load- restore voltage. (The parameter is default under 25¿¿¿ condition, locked by the CPU procedure, cannot adjust.)
The controller will automatically compensate the temperature of the charging voltage according to the changes of
ambient temperature.
TROUBLE SOLUTION :
Phenomenon : Green LED off, battery indicator LED is Red.
Reason : Low voltage of battery
Solution :
A : Cut off the power, disconnect the load; reconnect the load after the charge become normal.
B : Battery charge problem : Increase the solar panel power or change the battery.
Phenomenon : Battery indicator LED is orange and Load indicator LED is green, the loads cannot work.
Reason : Over load or short-circuit causes the controller inner fuse cut off
Solution : 10-20 minutes after eliminated the malfunction, the fuse will automatically back to working.
Package Includes : 1 x MPPT Solar Charge Controller
1 x User Manual
