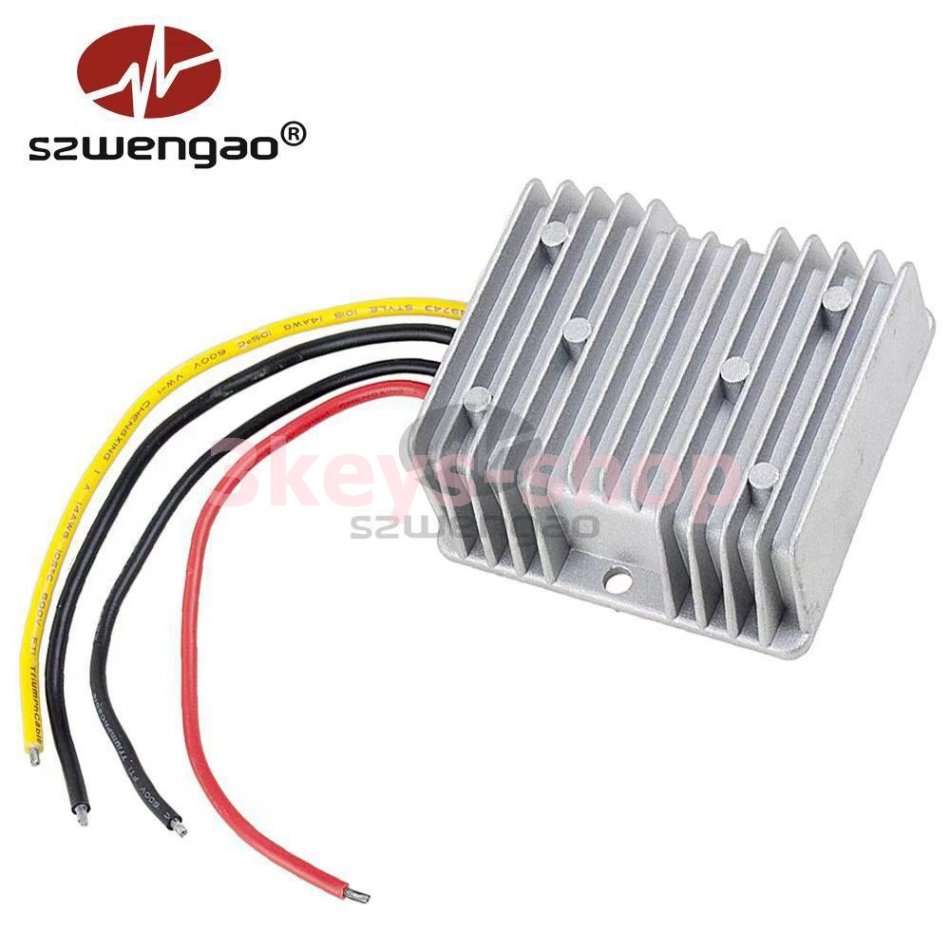

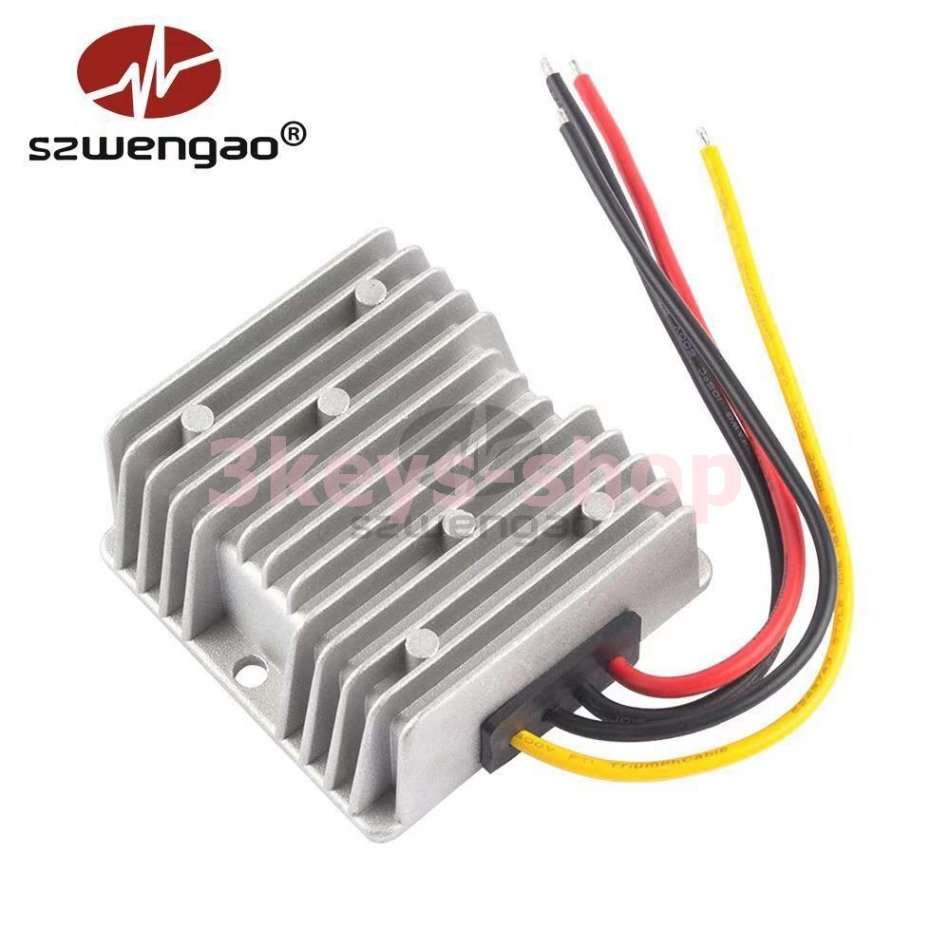

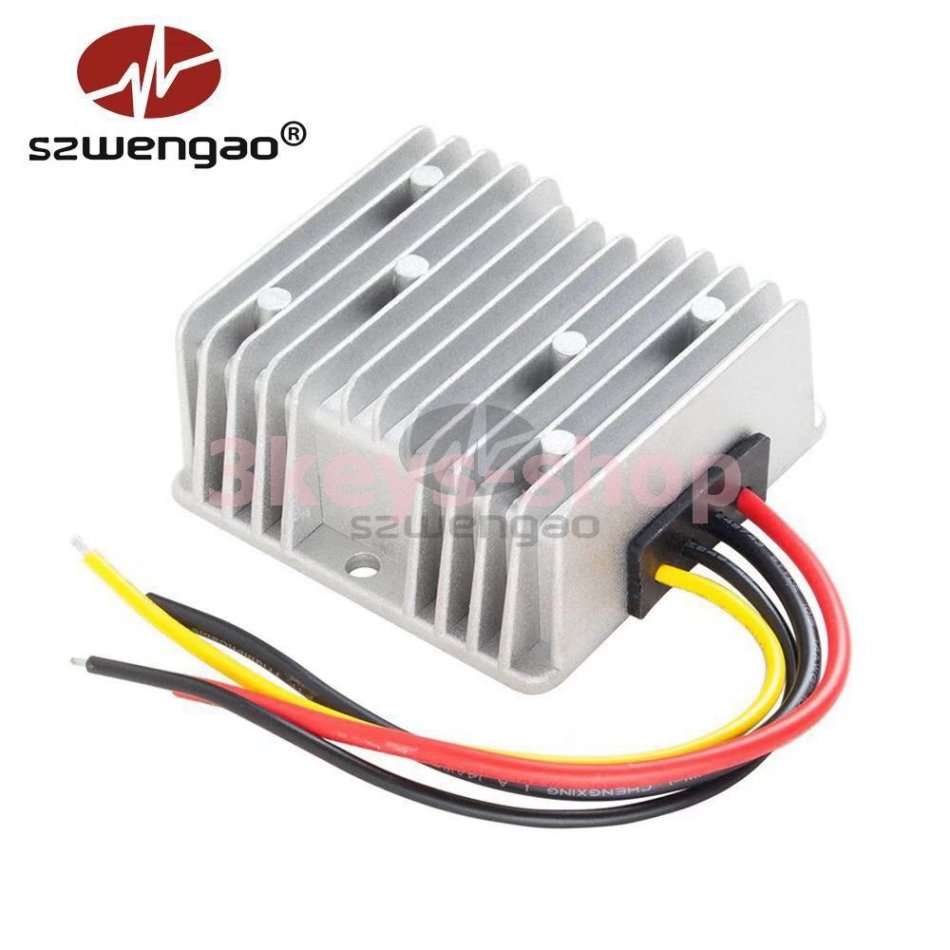

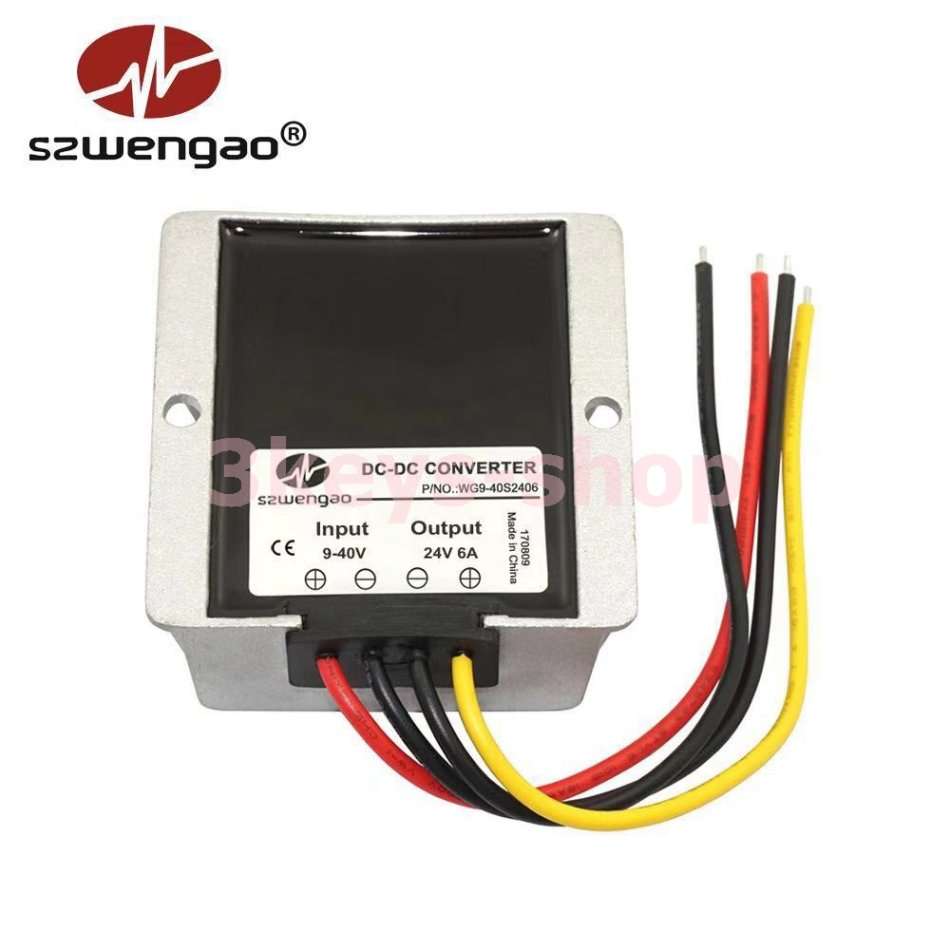

12V 24V 32V to 24V DC Step Up Down Power Voltage Regulator Converter 9V-40V to 24V 6A 144W
Professional manufacturing quality assurance Service life up to 100,000 hours
Input Rated Voltage: 12V 24V DC
Input Voltage Range: 9-40V DC
Output voltage: DC 24V 6A
Output Rated Power: 144W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -30~80°C
Weight: 0.5kg
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC9-40V to DC 24V step-down converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
