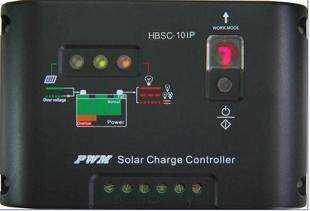

12V 24V 5A/10A/20A/30A Solar charge Controller Solar
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
TECHNICA INFORMATION
Charge current: 10A
Load current: 10A
Regulations point: 14.4 Volts
Low voltage Disconnect: 11.1V Volts
Low voltage Reconnect: 13.1 Volts
Microcontroller digitaaccuracy
Type of Charging Series PWM & stat of charge(SOC)
4 Stages: equalization, PWM, Boost and Float,
temperature compensated charging
Electronic protections Short circuit and over current-solar and load
Reverse polarity-solar, load, battery
Reverse current at night
Limits high voltage to protect loads
Lighting protection
Weights: 200g
Dimension: 140*90.5mm
Self-consumption: 6mA maximum
Temperature:-35to 55
Enclosure: IP22
Compliance: CE
Reduce Cost of Battery Replacements
The low voltage disconnect will increase battery life. The loads are automatically disconnected when the battery is low and automatically reconnected after the battery is recharged.
Complete charging will increase battery life and storage capacity.
The controller will maximize the amount of solar energy into the battery and avoid drying out the battery.
Provides Useful Information LEDs display status information and battery level
SCCS-05A
SCCS-10A
SCCS-15A
SCCS-20A
SCCS-30A
