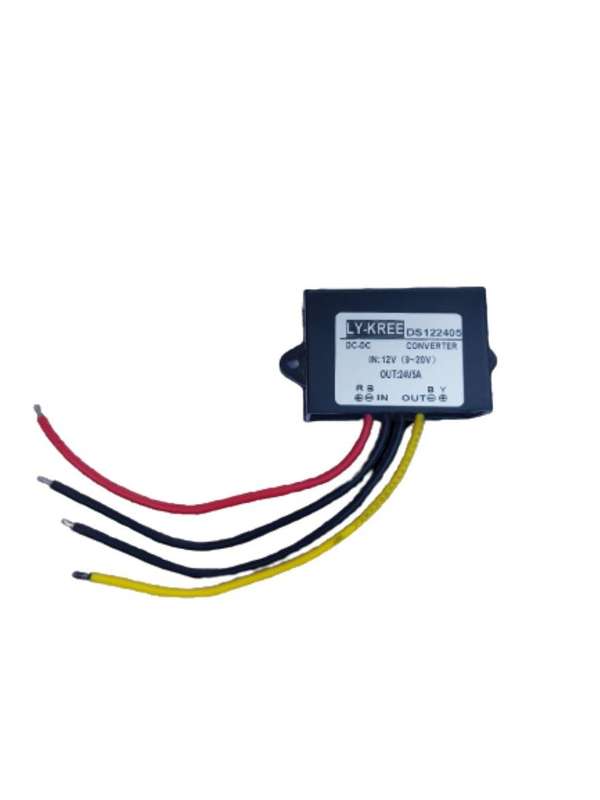

12V 24V 5A Boost Module
Ready to add some serious power to your projects? Look no further than the 12V - 24V 5A Boost Module! This small, slim module has all the features that you need for powering up your projects. It features a silicone sealant waterproof and shockproof design, making it perfect for even the toughest of conditions.
A boost converter is a DC-to-DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage. Since power must be conserved, the output current is lower than the source current.
Boost converters are used in electronics to generate a DC output voltage that is greater than the DC input, therefore boosting the supply voltage. Boost converters are often used in power supplies for white LEDs, battery packs for electric automobiles, and many other applications.

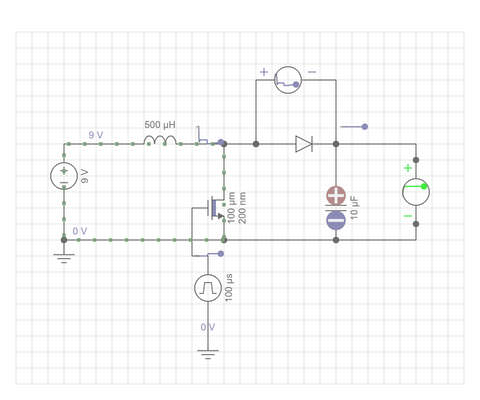

Boost Converter Circuit Diagram
The above image should give you a basic idea of what a boost converters circuit looks like to understand exactly how it works please watch the below video.

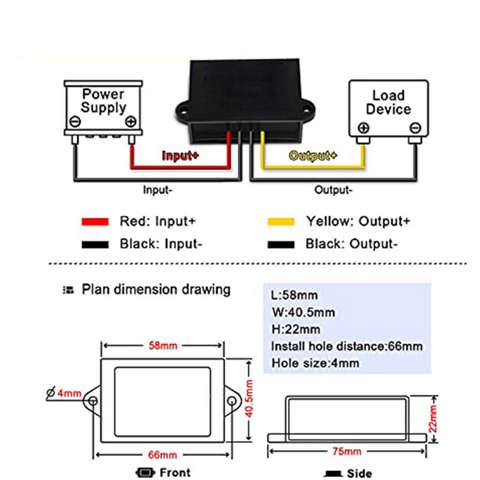

Wiring Diagram
The above image should give you enough information on how to connect the boost converter safely and correctly.
Note: Please remember to make sure the wiring is done carefully & correctly
12V - 24V 5A Boost Module Feature:
- Silicone sealant, waterproof, shockproof design.
- Thin, small in size, has high efficiency, and is easy to install.
- ABS flame retardant shell material is long-term stable and reliable.
- Multifunction: input transient overvoltage, output short circuit, over temperature protection.
- Purpose: Car alarms, radio, intercom, electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, industrial electrical equipment, etc.
- Input: red(+)black(-); Output: yellow(+)black(-)
12V - 24V 5A Boost Module Specification
- Item Name: Boost Module Product
- Material: ABS
- Input Voltage: 12V (9V to 20V)
- Output Voltage: 24V±0.25V
- Output Power: 120W
- Output Current: 5A
- Conversion Efficiency: 96%
- Protection Grade: IP67 (Short-Term Water Invasion)
- Installation Line Length: 13cm
- Working Temperature: -20 Degree Celsius to 80 Degree Celsius
- Reverse Connection Protection: None
- Module: Non-Isolated Step-Down Module
- Features: Waterproof, Moisture-Proof, High Stability
- Size: 58mm(75mm with mount holes) x 40mm x 22mm
