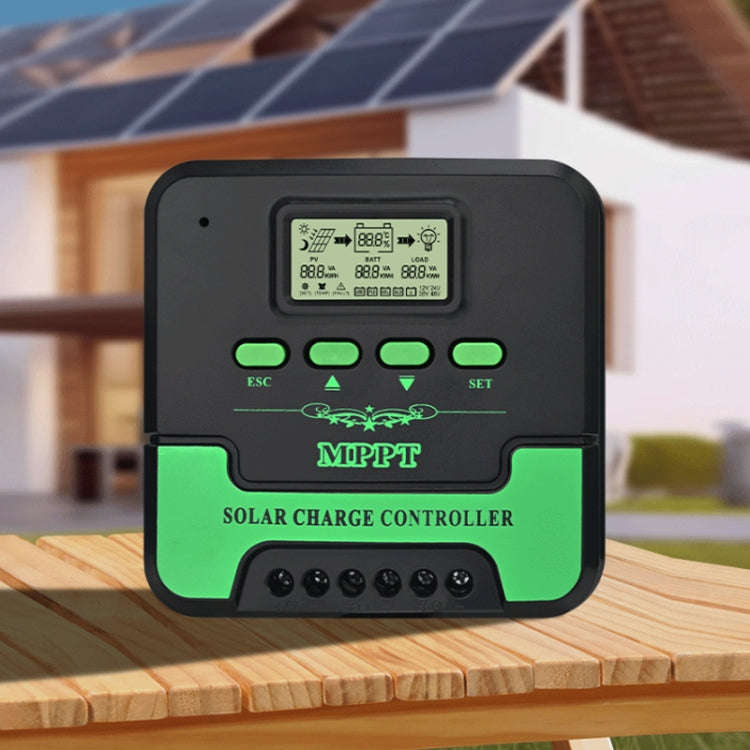

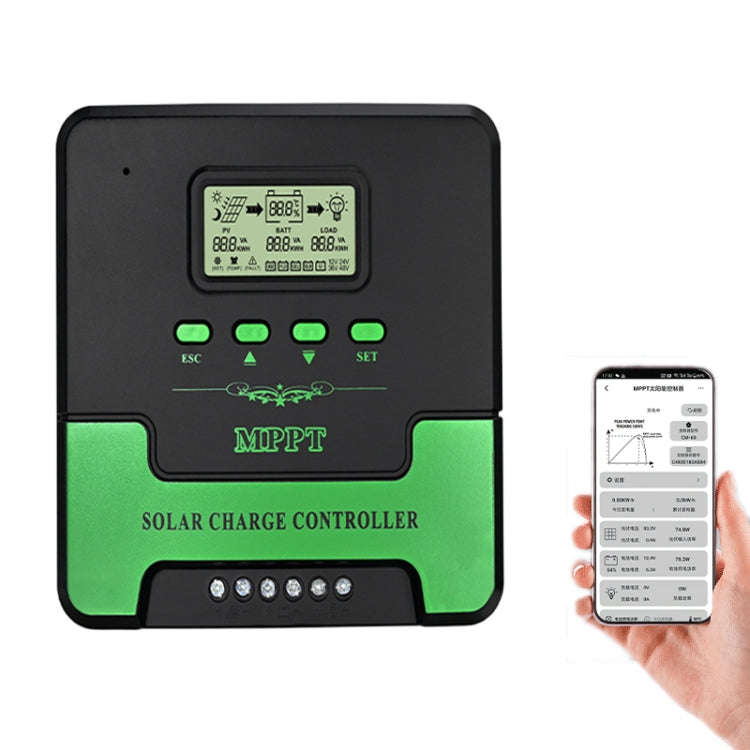

12V-24V 60A WIFI Remote MPPT Home Energy Storage Control System Solar Controller, Model: CM-D60

1. Material: ABS+metal
2. System voltage: 12V/24V self-identification
3. No-load loss: less than 0.4W
4. Solar input voltage: 100V VOC (MAX)
5. Battery voltage: 9-32V
6. Voltage range: battery voltage +2V~100V (MAX)
7. Rated charging current: 60A
8. Rated load current: 20A
9. USB output: 5V/3A
10. Panel input power (MAX): 720W/12V; 1440W/24V
11. Temperature compensation coefficient: -2mv/degrees Celsius/2V (default value)
12. Working temperature: -10~+65 degrees Celsius
13. Protection level: IP21
14. Electromagnetic compatibility: in compliance with EN61000, EN55022, EN55024
15. Solar controller application scope: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards, etc.

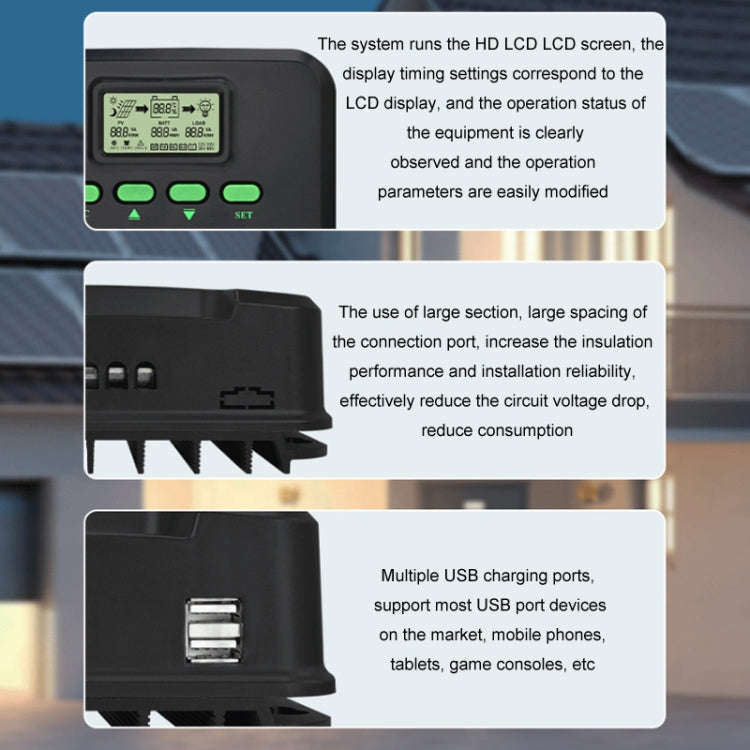

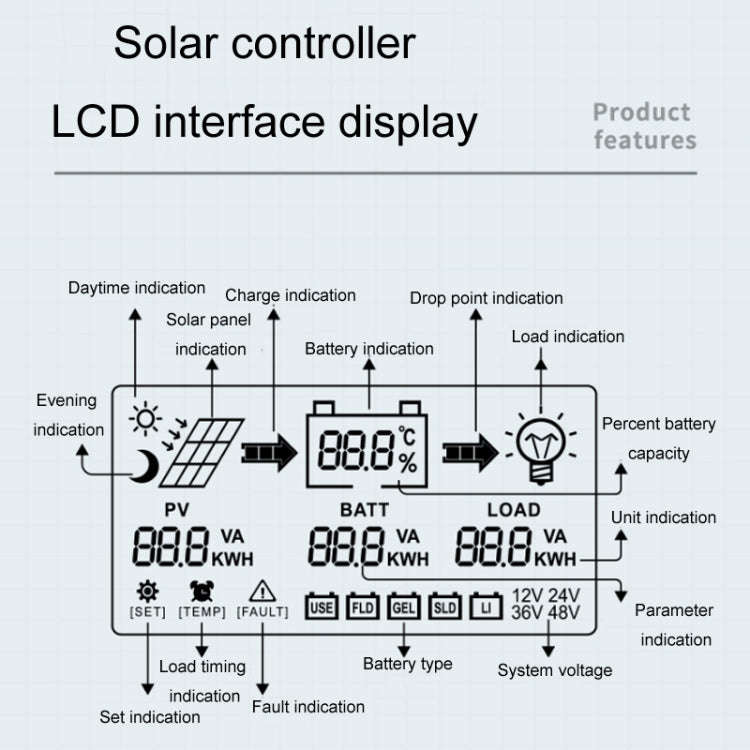

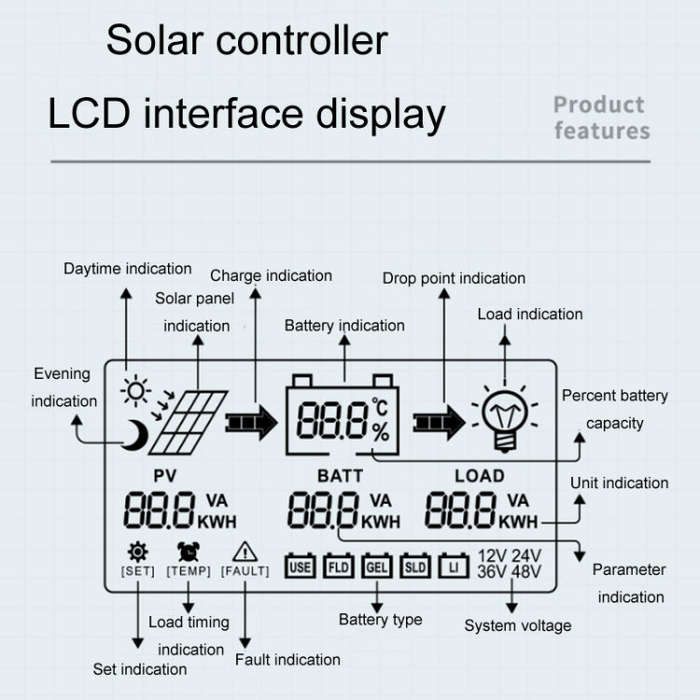

16. The system runs on a high-definition LCD display screen, which displays the timing settings corresponding to the LCD display, clearly observing the operating status of the equipment and conveniently modifying the operating parameters
17. The use of large-section, large-pitch wiring ports increases the insulation performance and installation reliability, effectively reduces the circuit voltage drop, and reduces consumption
18. Multiple USB charging ports support most USB port devices on the market, mobile phones, tablets, game consoles, etc.

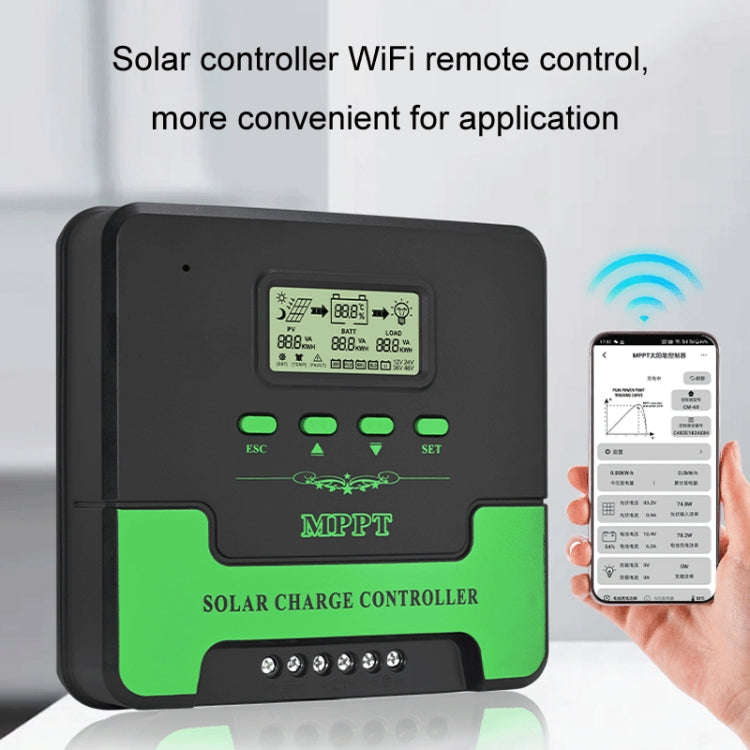

19. Solar controller WiFi remote control, more convenient to use

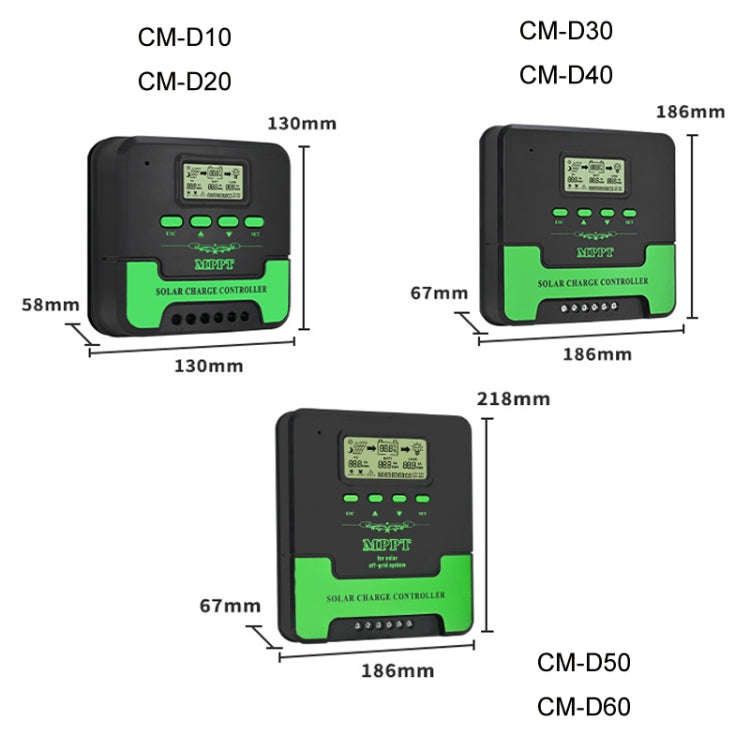

20. Size: 21.8x18.6x6.7 cm
21. Weight: 1226 grams
