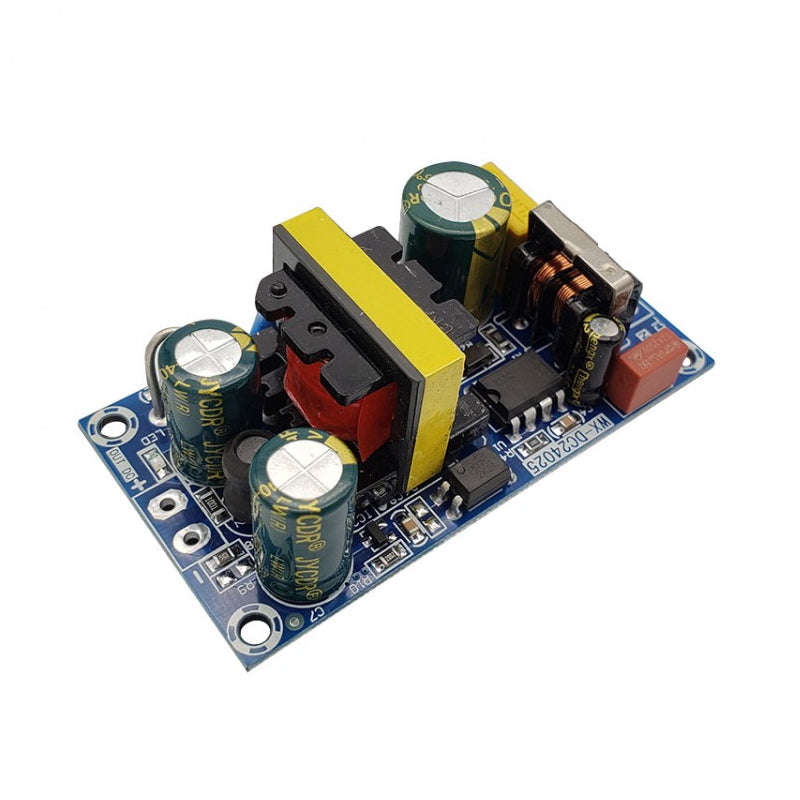

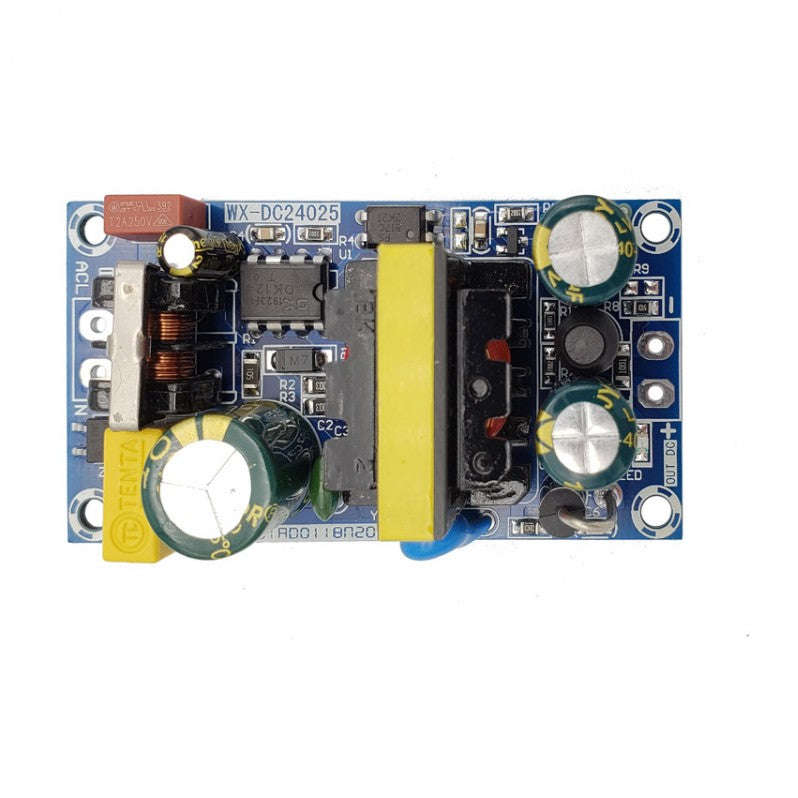

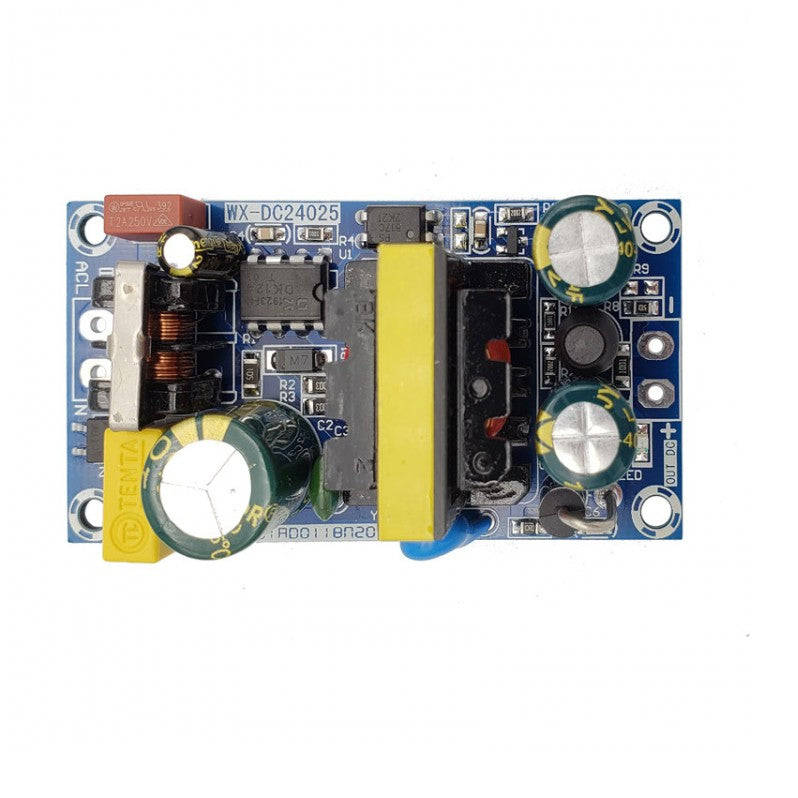

12V 2A power supply module

Are you an aspiring hobbyist looking for reliable power to make your projects come to life? Look no further than the 12V 2A Power Supply Module! This top-of-the-line module is designed to help take your hobbies and projects to the next level.

A DC power supply module converts AC power from a standard outlet into a stable DC power source. This regulated direct current is then used to power a device, module, or component. DC power supplies come in varying levels of input and output voltage, output current, and power rating.

The main advantage of the 12V 2A power supply module is greater efficiency (up to 96%) and lower heat generation than linear regulators because the switching transistor dissipates little power when acting as a switch.

Other advantages include smaller size and lighter weight from the elimination of heavy and expensive line-frequency transformers. Standby power loss is often much less than transformers.

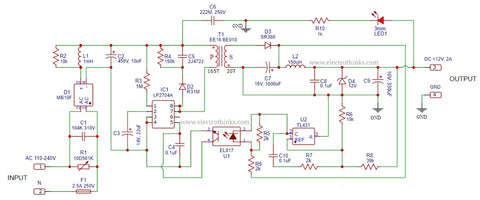

12V 2A power supply module schematic

The above schematic is a general schematic of a power supply module but can also be used to give us a good idea of how the 12V 2A power supply module works and how it takes 220VAC and turns it into an output of 12V.

12V2A power supply module 220V AC to 12V DC Specification

• Voltage input: AC 100 ~ 240V
• Frequency input: 50HZ~ 60HZ
• Output voltage: DC12V
• Output current: rated 2A / peak 4A protection
• Output power: 24W
• Protection: Short-circuit protection, overload protection, over-temperature protection
• Size: 75x37x23mm
• Weight(gm): 44
