Feature:
1.High-pre-cision circuit board.
2.Built-in intelligent control chip.
4.Universal three-hole socket, strong compatibility,most appliances are suitable.
5. Pure Sine Wave Inverter. Greater drive capability, better protection to sensitive equipment. Smart filter, no interference on the electrical, to protect electrical appliances.
6.Up to 93% conversion rate, reduce the conversion loss of 30%, increase 30% continuous power.
7. Multiple Protection. Built-in primary fuse and safe charging technology to protect your battery and devices.
8. Smart Temperature Control.

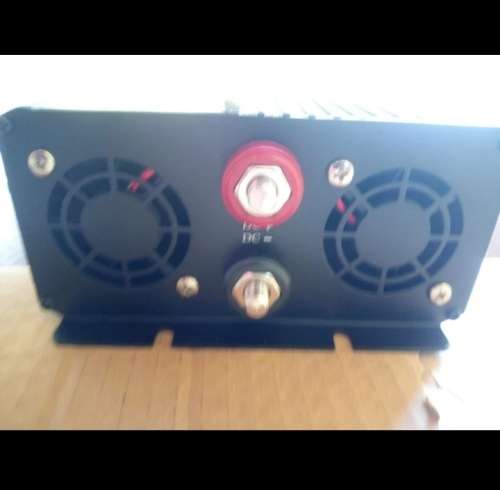

-Cooling fans automatically start when the temperature exceeds 45 to prevent the inverter from overheating to extend the life of the inverter.
-Alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.

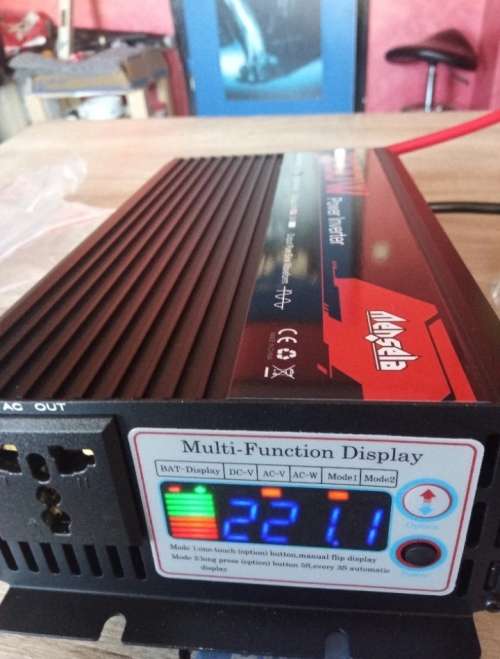

9. Multifunctional Digital Display. Color LCD screen integration. Can display the remaining battery capacity, input voltage, output voltage and load power.
10. Audible alarm. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.
11.50Hz/60Hz Frequency Adjustable. Easily switch between 50Hz and 60Hz by pressing the button after power-on.
Specification:
Brand
Mensela
Model
IT-PS1 Pro
Type(Max Power)
3000W
Continous Power
1500W
Input Voltage
12V
Output Voltage
220±10V
Output Frequency
50Hz/60Hz (adjustable)
Output Waveform
Pure Sine Waveform
Conversion Rate
93%+
Display
Digital Color LCD
AC Outlet
1
Dimensions
26*15*7cm
Net Weight
2.35kg
Package Included
2 x Connecting Cables
2 x Battery Clamps
2 x Fuses
1 x User Manual
Correct Connet Way:
POSITIVE FROM THE BATTERY TO POSITIVE OF INVERTER and NEGATIVE FROM THE BATTERY TO NEGATIVE OF THE INVERTER!
(+...connect...+,-...connect...-)
Notice:
1. In case of failure or improper operation, an audible alarm will be triggered and auto power off.
2. Cooling fans automatically start when the temperature exceeds 45 to prevent the inverter from overheating.
3. The inverter voltage must be the same as the battery voltage
4. Before connecting the battery, make sure that the switch of the inverter is turned off
5. For security, the power of electrical appliances should be lower than the rated power of the inverter.
6. Product production setting is 50Hz, which can be adjusted to 60Hz.
