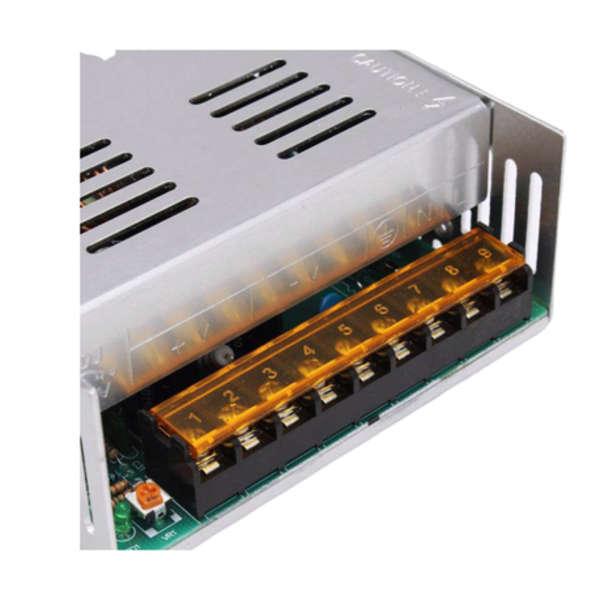

Specifications:
-Case Material: Metal case / Aluminum case
Size: 115x215x46 mm
Input voltage: AC110V or 220 V
Output voltage: DC12V
Power: 360 W
Operating temperature: -10 ~ 50
Features:
-Imported components, high reliability. Built-in WMI filter, anti-jamming.
- DC ripple is small, high efficiency. Soft start circuit design, AC overvoltage limit.
- Low working temperature and long service life. Wide input voltage range, in accordance with international standards.
-Insulation performance, high dielectric strength. Short circuit, overload, overvoltage, protection.
Note:
-the metal sheath of the power line and the sheath are usually connected to ground (FG), reliable ground for safety,
not mistakenly connected to the sheath on the zero lines.
- before commissioning, please check and check the wiring on the terminals again to make sure that the input and output are AC and DC,
single-phase and multiphase, positive and negative values ?? of voltage and current, before starting.
-For a high power supply, as a rule, they have three or more than three "+" input terminals and "-" output terminals, in fact, they
refer to the output polarity, only for the convenience of users.
What's in the box
-1 x Switching Power Supply
