12V 4.8W 37-520 High Torque Reducer AB Dual Phase Hall Encoder DC Motor for Smart Car DIY Part

Introduction:

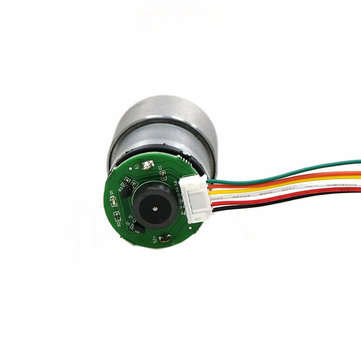

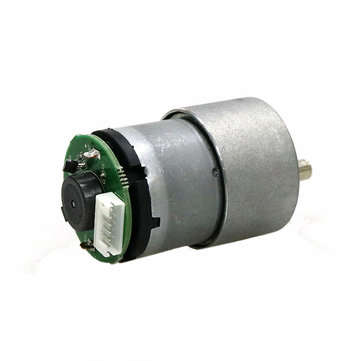

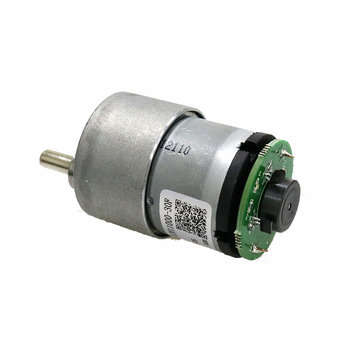

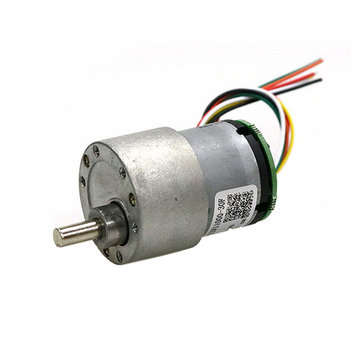

The 37-520 motor comes with a high-precision magnetic encoder and equipped with a Hall encoder. It has the characteristics of high precision and strong anti-interference ability. It is the best choice for DIY balance car.

Motor parameters:

-?Rated voltage: 12V -?Rated power: 4.8W -?Motor type: permanent magnet brush -?Stall current: 2.8A -?Blocking torque: 10kgf.cm -?Rated current: 360mA -?Rated torque: 1.0kgf.cm -?Original speed: 11000rpm -?Reduction ratio: 1:30

Regrading the?code disk speed measurement:
If there is a deviation, the code disk can measure the speed in time to ensure that the speed of the two motors of the car is consistent.

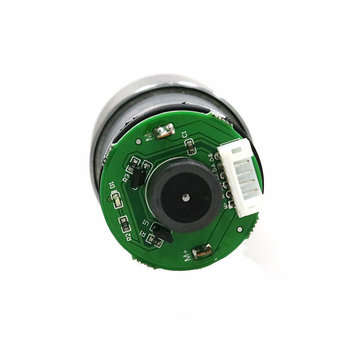

Code disk parameters:

- 22 pole magnetization; -?AB phase incremental Hall encoder; -?The wheel turns one turn and outputs 330 complete pulses; -?Highly support DIY high-precision balance trolley;

Package List:

1 x 37-520 motor 1 x motor line












?
