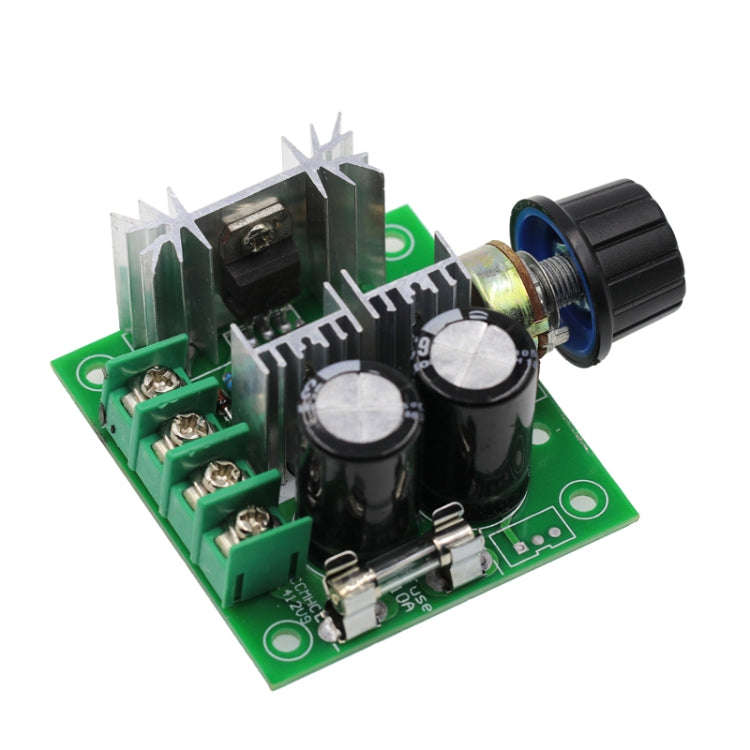

12V-40V 10A DC Motor Speed Controller PWM Stepless Speed Switch, Style: Without Stand
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0604391101
Bob Shop ID
607118382
1. Input voltage: DC12V-40V
2. Control power: 0.01-400W
3. PWM frequency: 13khz
4. PWM pulse width speed range: 10-100 percent
5. Applicable current: rated current 8A, through the current up to 10A, static current 0.02A (standby state)
6. Weight: without stand about 62.6 g, with stand about 68.6 g

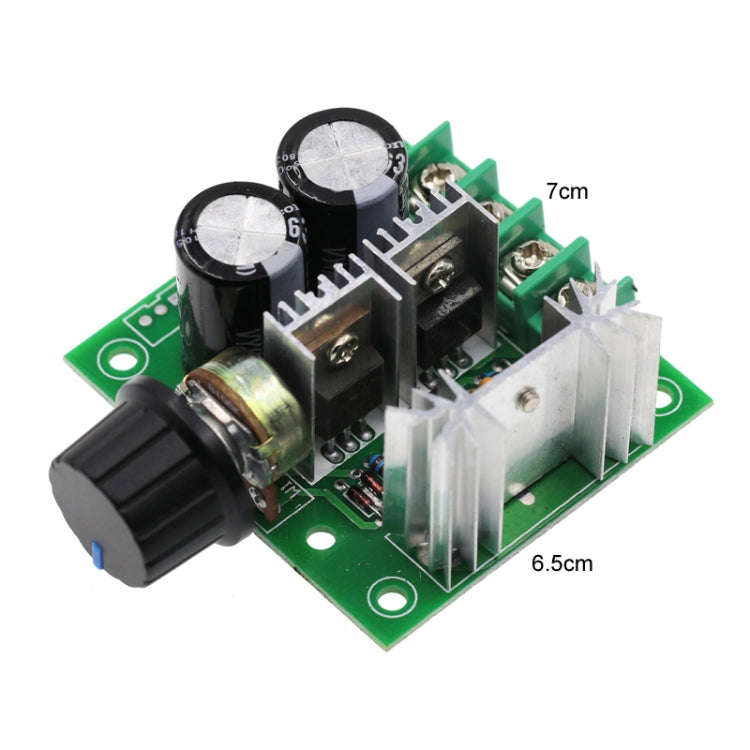

7. Size: about 7 x 6.5 cm
Features:
1. Using this controller to control the speed of DC motor, high efficiency, high torque, low heat generation, with reverse polarity protection and high current protection function
2. The circuit board is made of military-grade boards with meticulous workmanship and reliable quality, which is widely used in industrial production
3. Power tube using IRF3205 the bull, do not worry about not moving your motor. (parameters leakage current Id large value: 82A; voltage Vds large: 75V; open-state resistance, Rds (on): 0.013ohm)
4. Terminal use 8500 high current terminal, labeled 300V20A
Precautions and instructions for use:
1. DC motor governor input is DC, not directly connected to AC power (such as: household 220V AC), otherwise it will be burned out
2. DC power supply positive and negative poles can not be reversed, otherwise the governor will be damaged
3. The motor can not be divided into positive and negative, when the running direction is inconsistent with the expectation, you can change the direction by adjusting the wire sequence
4. Adjusting the potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor
