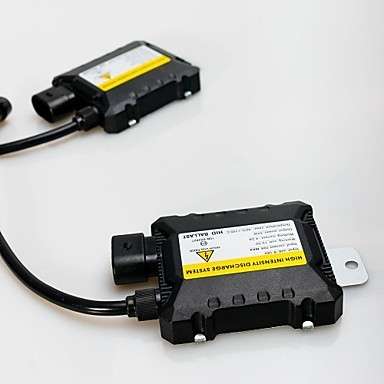

12V 55W H3 Slim Hid Xenon Replacement Ballast for Hid Lights (Black)..!

Product Information

DSP slim canbus ballast Main parameters & features

Slim HID Xenon Replacement Electronic Digital Conversion Ballast Kit
100% waterproof and 100% dustproof. Resistance to heat and aging,as well as vibration tested.
Life time: More than 3500 hours average lifetime.

Compatible with:
H series: H1,H3, H3C,H4-1,H4-2,H7,H7C,H7R,H8,H9,H10,H11,H13,H13-2
9 Series:9004,9004-2,9005,9006,9007-2, 9007, 9007-3
D Series: D2S,D2C,D2R;
Moving Series:H4-3,H13-3,9004-3;
Double Lamp Series:H4-4 9004, 9007-4, H13-4

Shape: Slim Size
Working Voltage Rate: 6-18V (normal ballast: 9-16V)
Input Voltage: 13.5V
Cold Boot current: < 5.0A
Hot Boot current: < 4.0A
Stable working current: 3.2A
Output Power: 55W
Rated working efficiency: over 90%
Lamp Holder: H3
Power (W): 55
Working Temperature: -40 to 105 degree Celcius
Unit Dimensions / LxWxH (cm): 11*7*1.5
Net Weight (kg): 0.22

1. Cold light low current, quick start light
2. DSP intelligent start, no impact on light bulb, prolong the life by more than three times
3. Intelligent power compensation, stable brightness output
4. Low pressure drop power, safety protection original car circuit
5. Fewer Components, less consumption, high efficiency, low temperature and low failure rate

Package Contents

1 x Ballast
