12V-80V LED Front Light with Built-in Horn 36V-60V 5W Rear Light with Brake and Turn Function Switch

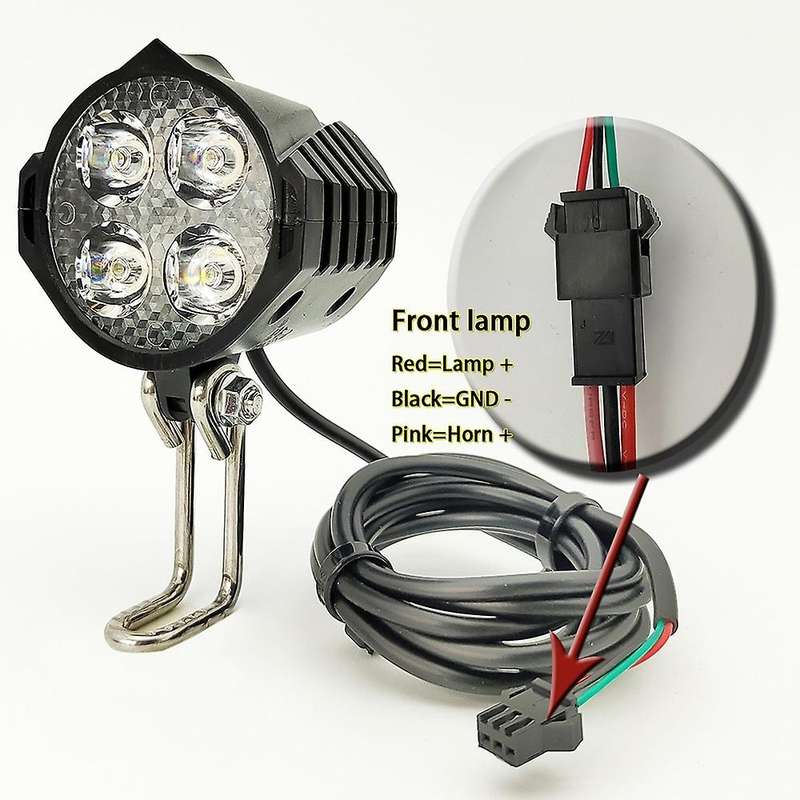

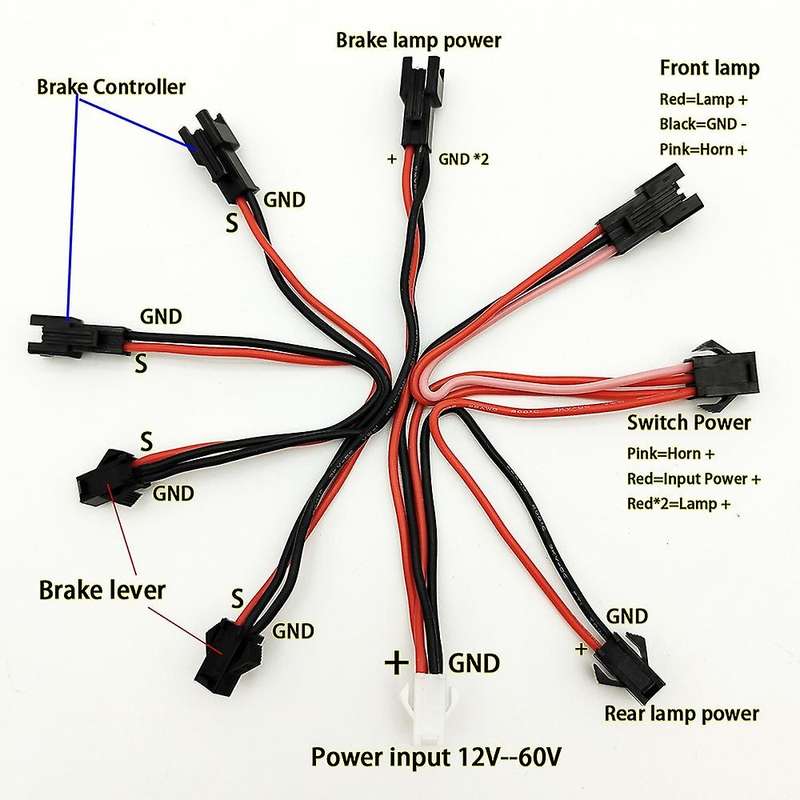

Scope of application: LED headlights for electric bicycles, LED headlights for shared electric vehicles, and LED headlights for motorcycle lightsWork status description: Driving lights: When the driving lights switch is turned on, the headlights and tail lights are onHorn: When the horn button is pressed, the horn starts to work, release it to cancelBrake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while , and the brake light will go out when the brake is cancelledTurn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each timeHeadlight parameters:1. material: plastic2. Applicable voltage range: 12V-60V3. Power: 59mA\/2.8W4. Luminous flux: 180-220LM5. Speaker power: 44mA\/2.1W6. Speaker volume: 80-100dB7. Wire sequence: Red-Horn+ Black-GND Green-Lamp+8. Product size: 62 x 50 x 70mm9. Cable length: about 1.5MTaillight parameters:1. material: plastic2. Applicable voltage range: 12-80V3. Power: 1.5W4. Number of light sources: 145. Luminous flux: 15LM6. Line sequence:Taillight power supply=red+\/black-Brake light power supply: blue+\/white-Turn signal: yellow right+\/green left+7. Product size: 132 x 65 x 40mm8. Cable length: about 1.5MSwitch parameters:1. material: plastic2. Line sequence:White = driving light output +Red = power input +Yellow = speaker output +Product size: 26 x 53 x 61mmCable length: about 1.5MLight group connection line:1. Wire specification: 22AWG high temperature resistant soft silicone wire2. Length after folding: 140mmColour: black + redMaterial: plasticPackage Contents:1 x headlight1 x tail light1 x switch1 set x connecting wiresOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
