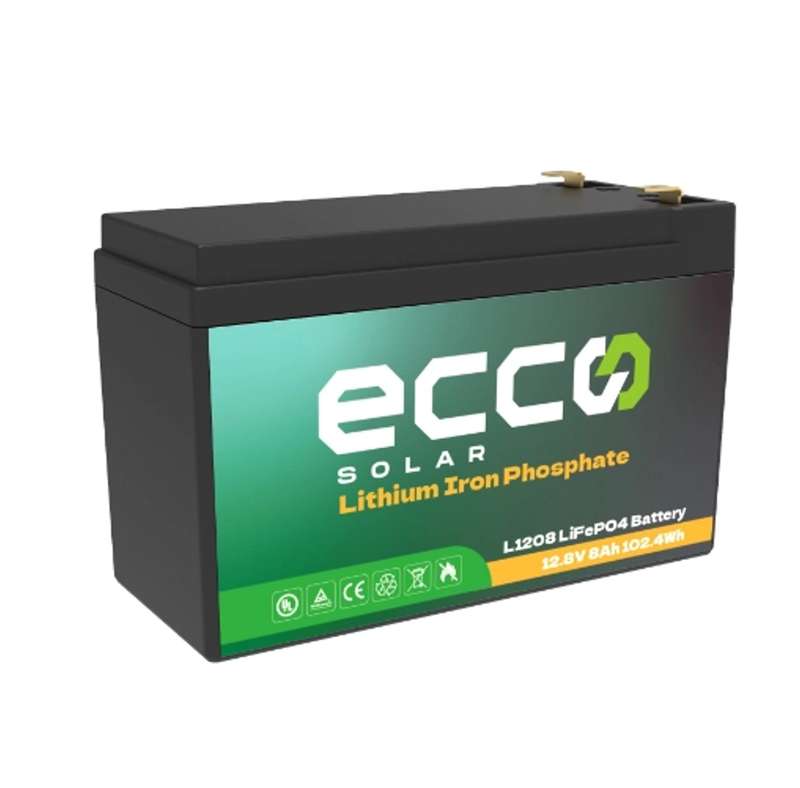

12V 8AH Ecco Lithium Li-ion Battery L1208

12V 8AH Ecco Lithium Li-ion Battery L1208

Li-ion Battery Series L1208

Longer Cycle Life: Provides up to 20 times longer cycle life and five times longer
float/calendar life than lead acid, helping to minimize replacement costs and
reduce total cost of ownership.
Lighter Weight: Approximately 40% of the weight of same capacity lead acid
battery. Easy replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate,
while maintaining high energy capacity; Supports 4 parallel or series groups.
Superior Safety: Eliminates the risk of explosion or combustion due to high
impact, overcharging or short circuit situation with safe lithium iron phosphate
chemistry.

Technical Parameters

Nominal Voltage (V) 12.8
Nominal Capacity (Ah) 8
Total Energy (Wh) 102.4
Operating Voltage Range (V) 9.2 ~ 14.6
Cut-off Discharge Voltage (V) 9.2
Standard Charge/Discharge Current (A) 4 CH / 8 DCH
Maximum Charge/Discharge Current (A) 8 CH / 12 DCH
Best Charge/Discharge Current  0.5C
Efficiency of Charge 100% (0.5C)100% (0.5C)
Efficiency of Discharge 100% (1C)
Lithium Chemistry LiFePO
Dimension (mm) W175 * D65 * H94
Weight (kg) 1.5
Protection Rating IP 65
Cycle Life >6000 @ 0.5C 80% DOD

24 Months Warranty
