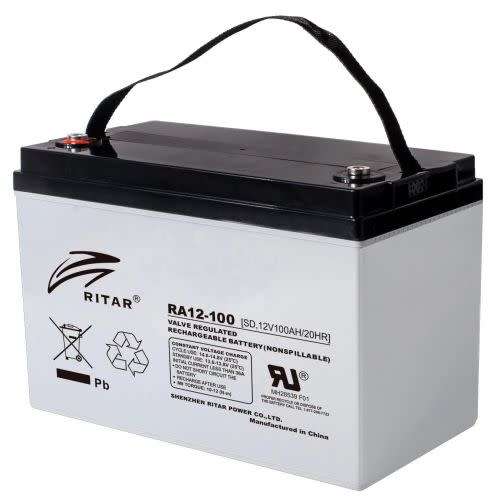

12V Battery Ritar RA 12-100 12V 100AH/10hr Battery 100AH (12v100ah)

100 ah battery

12V Battery Ritar RA 12-100 12V 100AH/10hr Battery 100AH (12v100ah)

RA series is a general purpose battery with

12 years design life in float service. It meets

with IEC, JIS, BS, GB/T and YD/T standards.

With advanced AGM val ve regulated

technology and high purity raw material, the

RA series battery maintains high consistency

for better performance and reliable standby

service life. It is suitable for UPS/EPS,

Telecom, power grid, medical equipment,

emergency l ight and security system

applications.

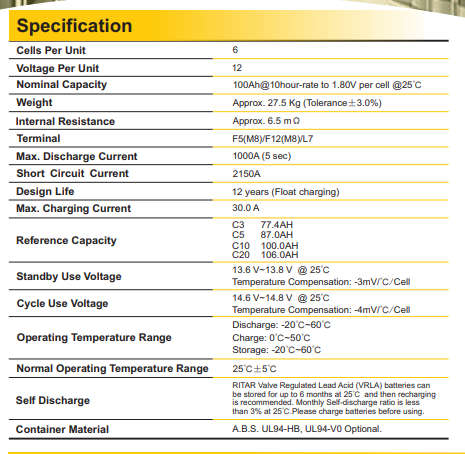

Specifications :

• • Cells Per Unit 6
  • Voltage Per Unit 12
  • Nominal Capacity 100Ah@10hour-rate to 1.80V per cell @25
  • Weight Approx. 27.5 Kg (Tolerance±3.0%)
  • Internal Resistance Approx. 6.5 m
  • Terminal F5(M8)/F12(M8)/L7
  • Max. Discharge Current 1000A (5 sec)
  • Short Circuit Current 2150A
  • Design Life 12 years (Float charging)
  • Max. Charging Current 30.0 A
  •


Dimensions :(mm)

328 x 172 x 220

What's in the box
1x 12V BatteryRitar DC/RA 12-100 12V 100AH/10hr Battery 100AH (12v100ah)

(Please note boxes may be different due to alot of boxes been damaged in Transport)
