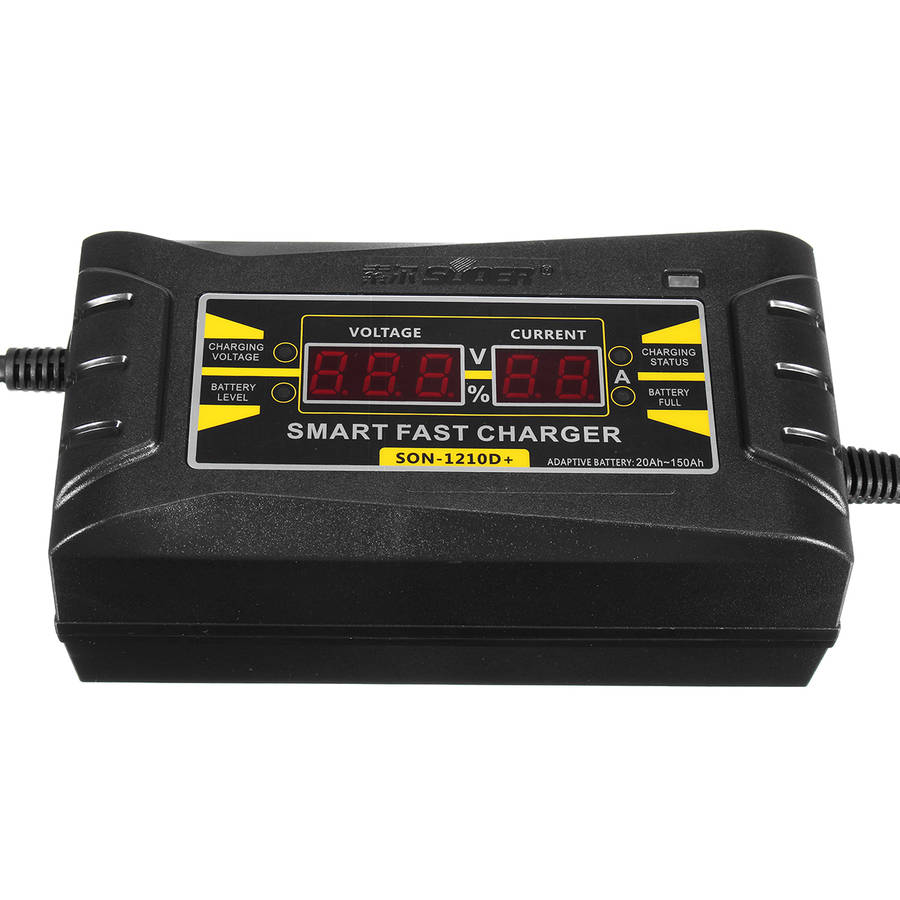

Description:
Protect the battery all-around ,full automatic trickle charge.smart three-phase charging mode makes it charge quickly.it has the function of reverse connect protection and short circuit protection.the device can judge whether there is a battery intelligently.
1. This battery charger uses micro MCU controller to manage the process of the battery charging.
The charger will automatically stop charging when it is getting fully charged.
2. This battery charger uses three-phase charging mode(PWM charging mode),
which includes constant current charging phase, constant voltage charging phase,floating charging phase.
3. With online battery detection, short circuit protection, over voltage protection,Anti - reverse connecting protection,etc.

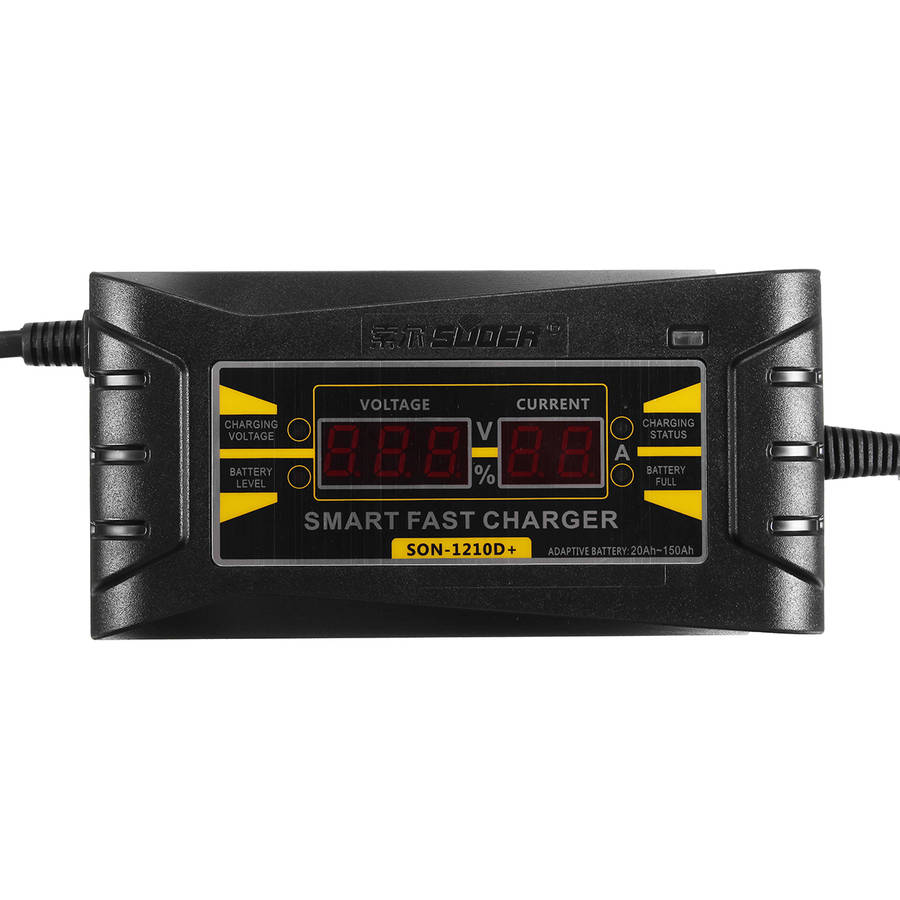

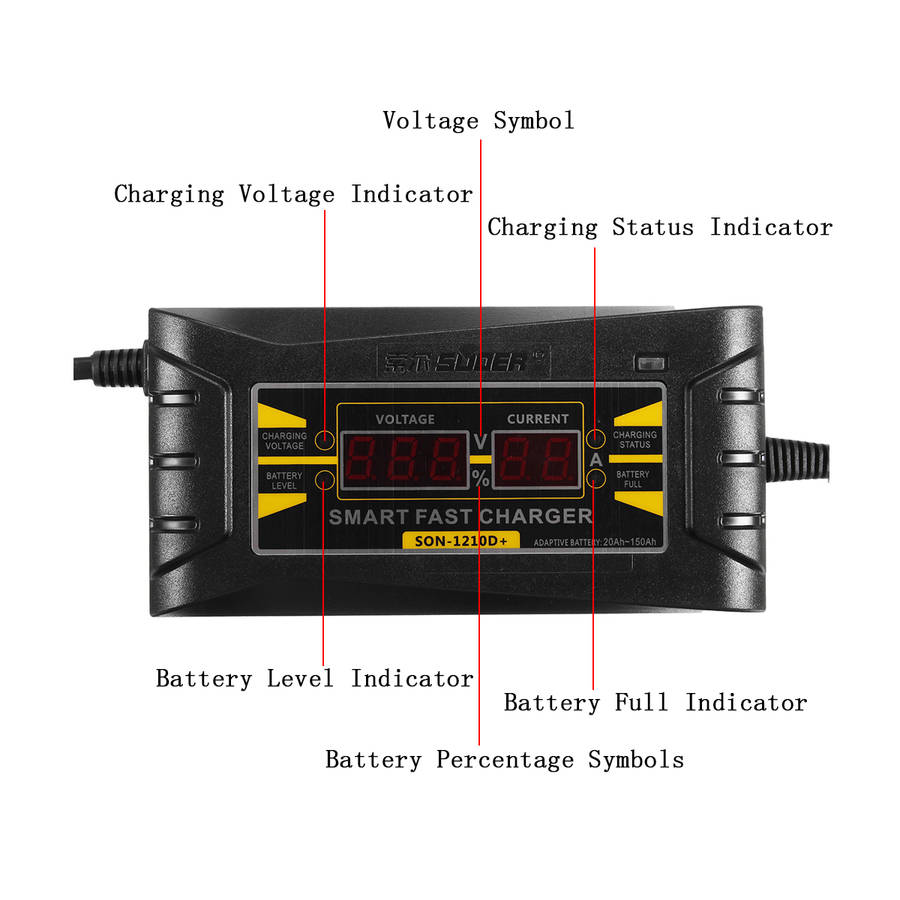

4. The smart charging indicator shows charging process directly, which facilitates users to manage the current of the battery.
5.Three-phase charging mode
Constant current mode:
When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply
the constant current for the battery.
Constant voltage mode:
Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures
the battery is fully charged and avoids over charging.
Floating charge mode:
When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually,
that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.
The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.

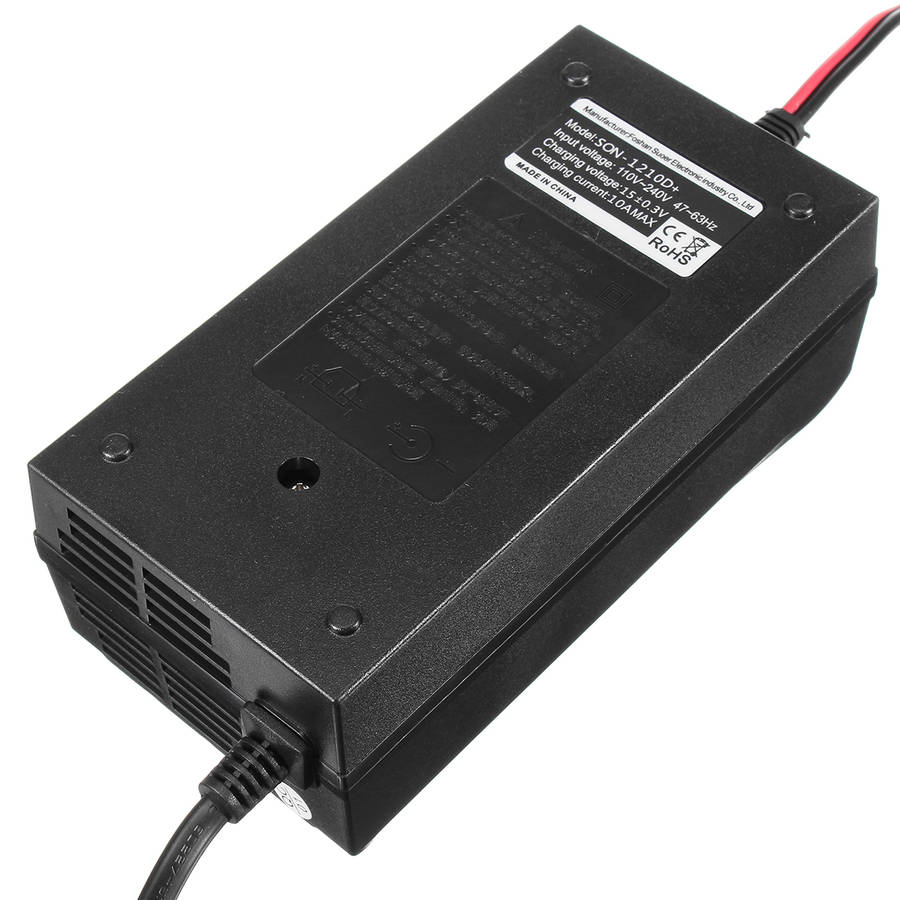

Specification:
Color: Black
Input Voltage: 110V-240V
Output Voltage: 12V
Rated Frequency: 47-63HZ
Charger Current: 10A
Charger Mode: Three-phase
Full load efficiency: ≥ 87%
Working Temperature: -20~+90￢ﾄﾃ
Plug type: US
Note:
This charger is designed for 12V lead/gel battery charging design,can not be used for other electronic devices
Package Included:
1 X Battery Charger
1 X User Manual
