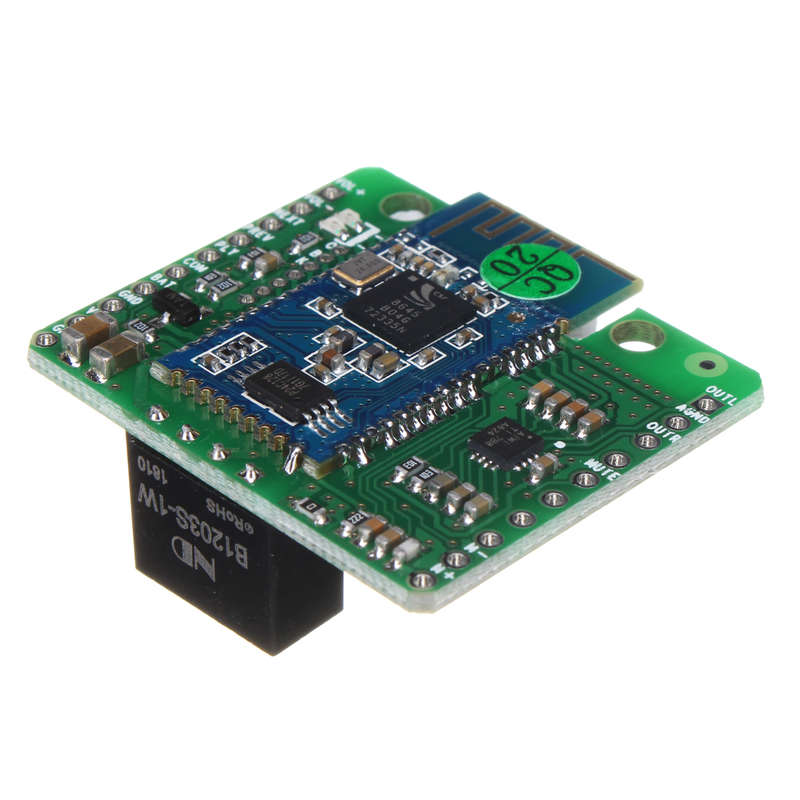

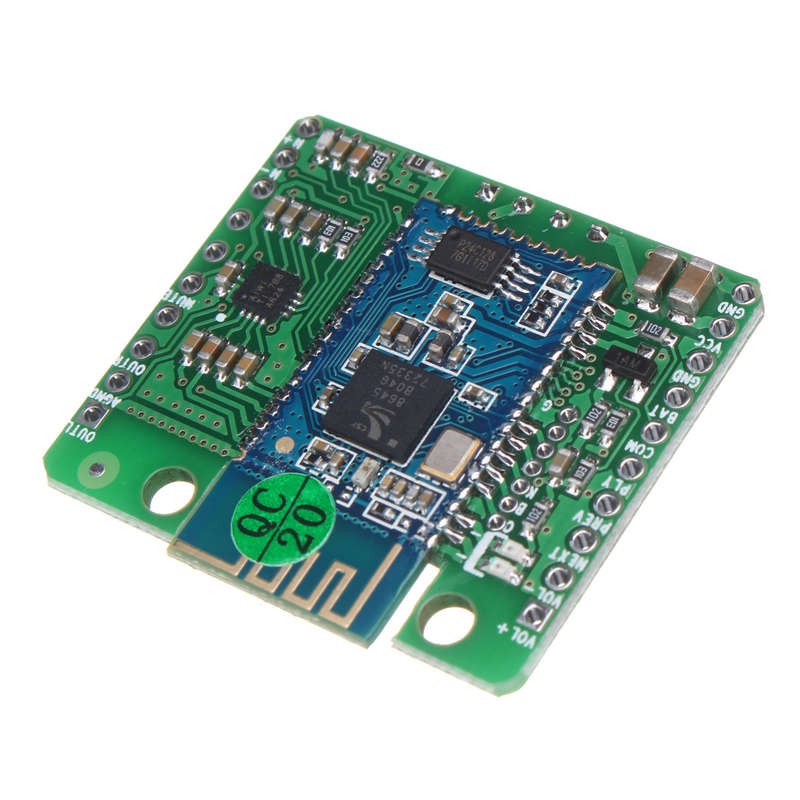

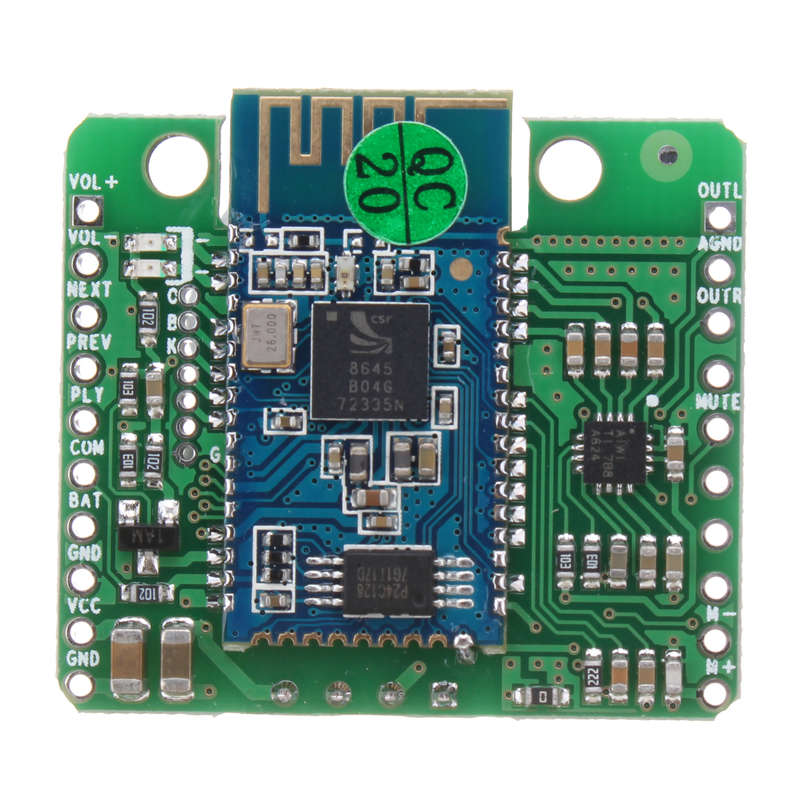

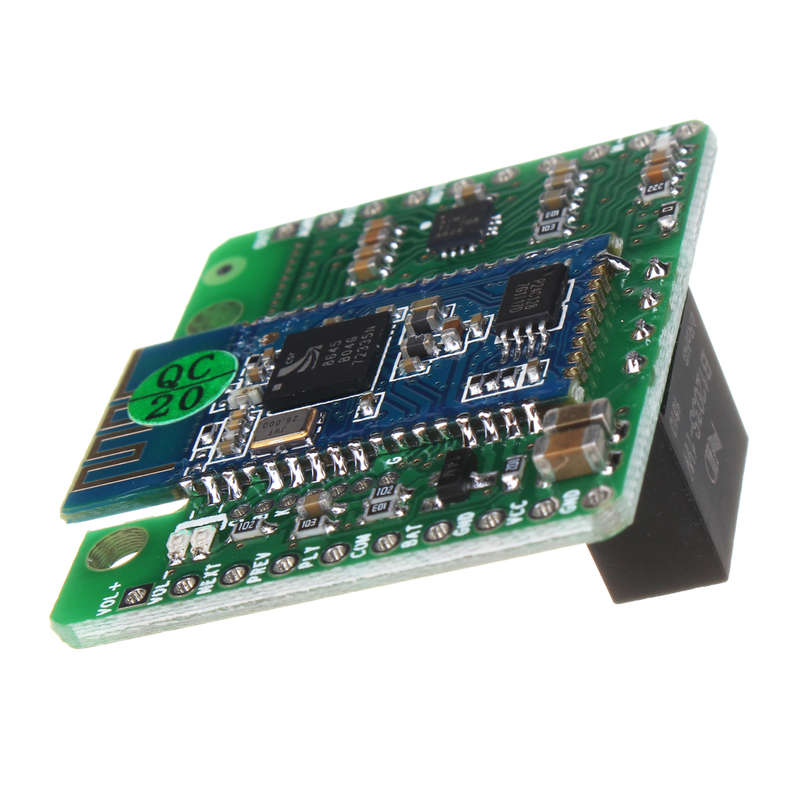

12V CSR8645 Hifi bluetooth 4.0 Stereo Amplifier Board Receiver Amp Module

20 available / new

R613.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3528

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643357290

Specification:

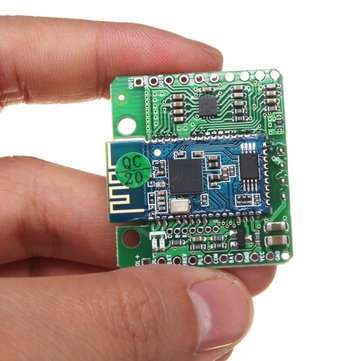

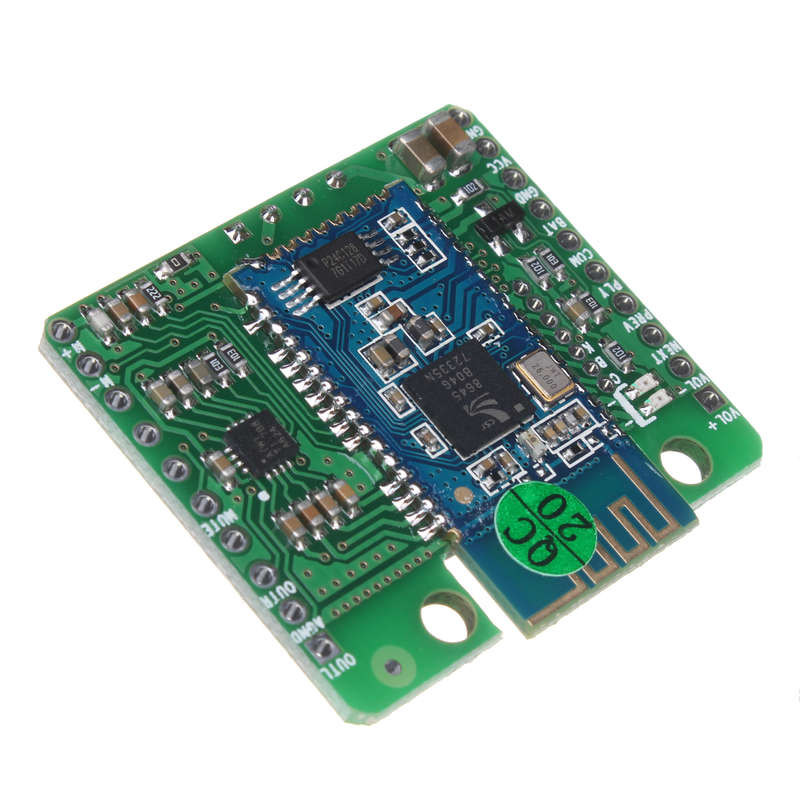

Name: CSR8645 bluetooth 4.0 Receiver Module

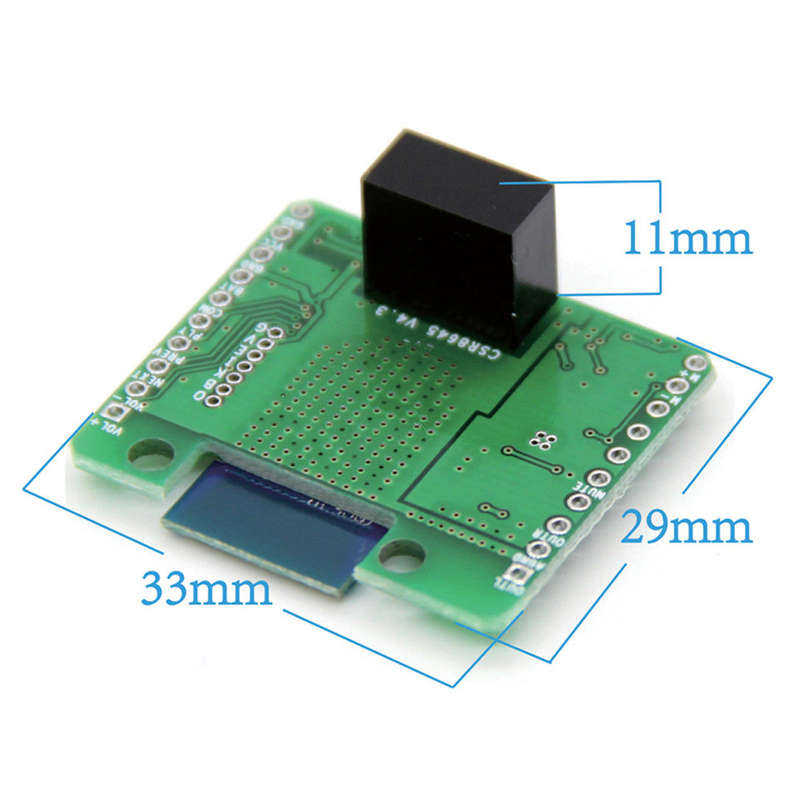

Size: 2.9x2.9cm

Features:

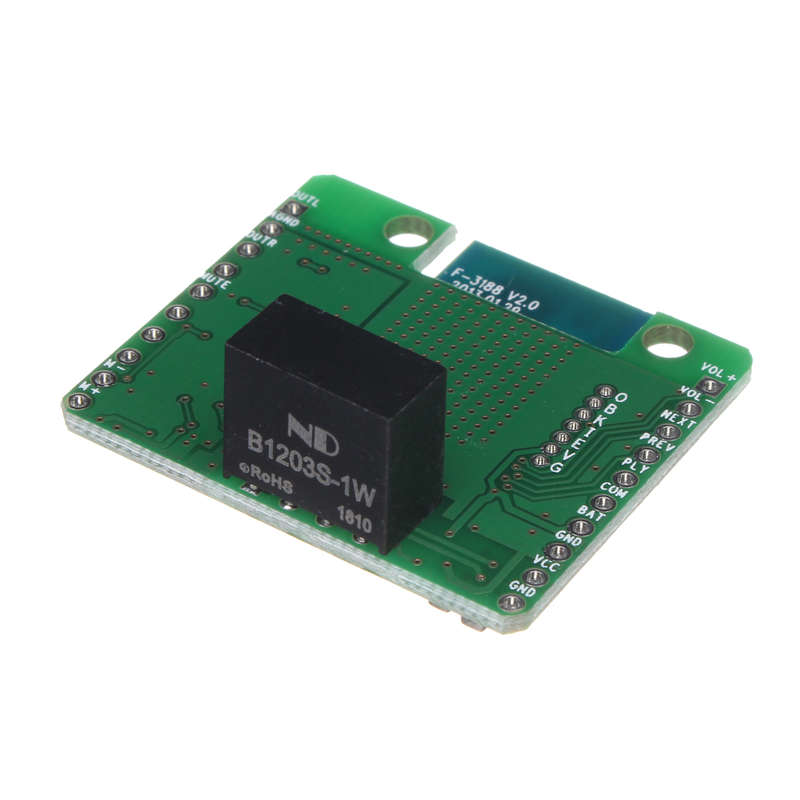

DC isolated power supply: suitable for modified speakers, power amplifiers, car bluetooth, perfect solution to common ground current sound, noise.

You can connect 2 mobile phones at the same time (the only way is to automatically back-chain the last paired mobile phone, and the second paired mobile phone needs to be manually connected).

With call function, CSR8645 low power, power on, the default volume is maximum.

Using TI amp TPA6132, better sound quality.

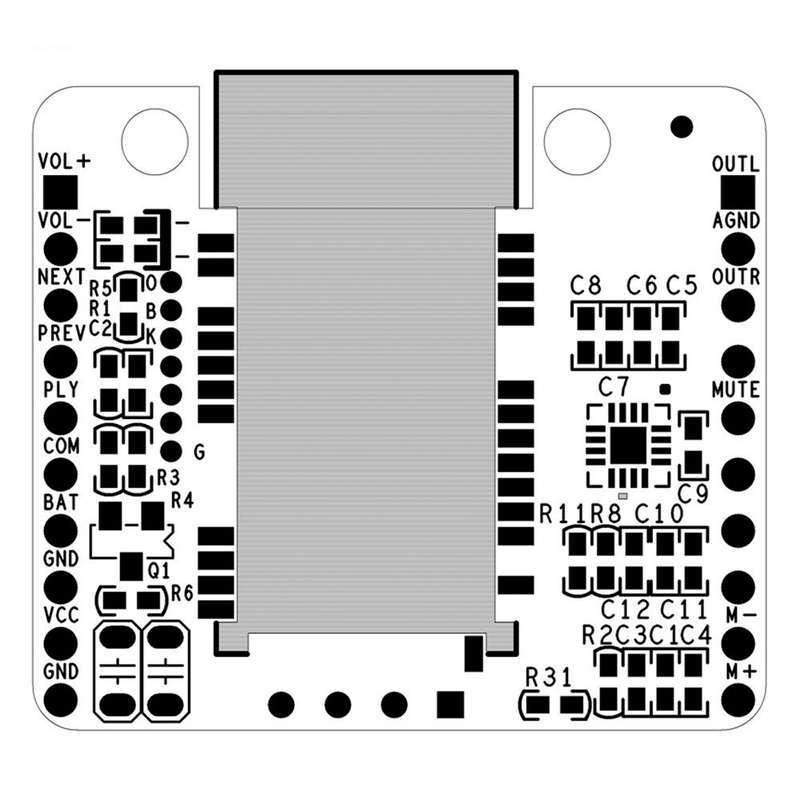

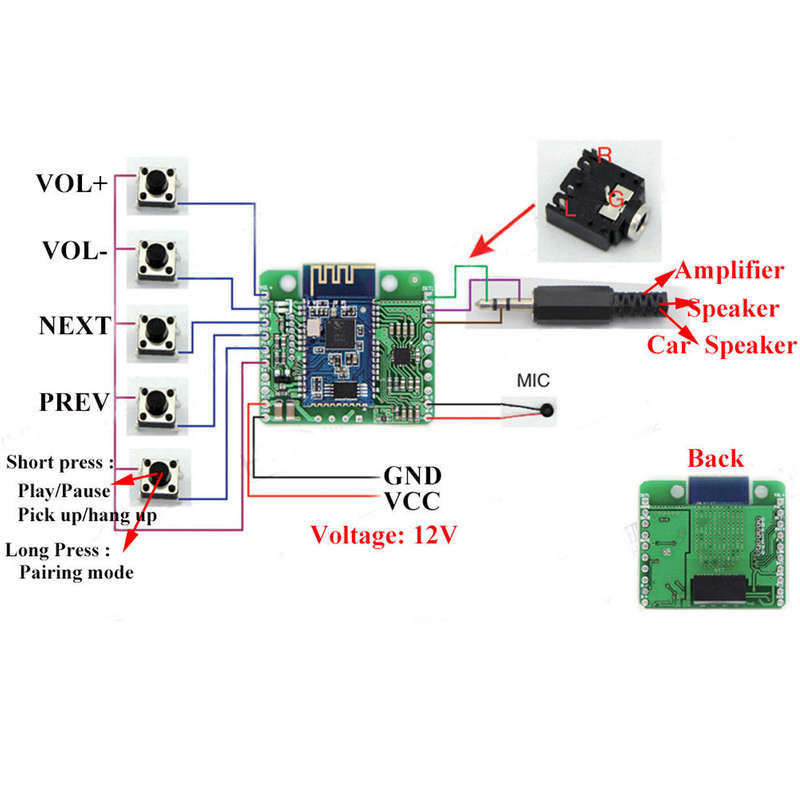

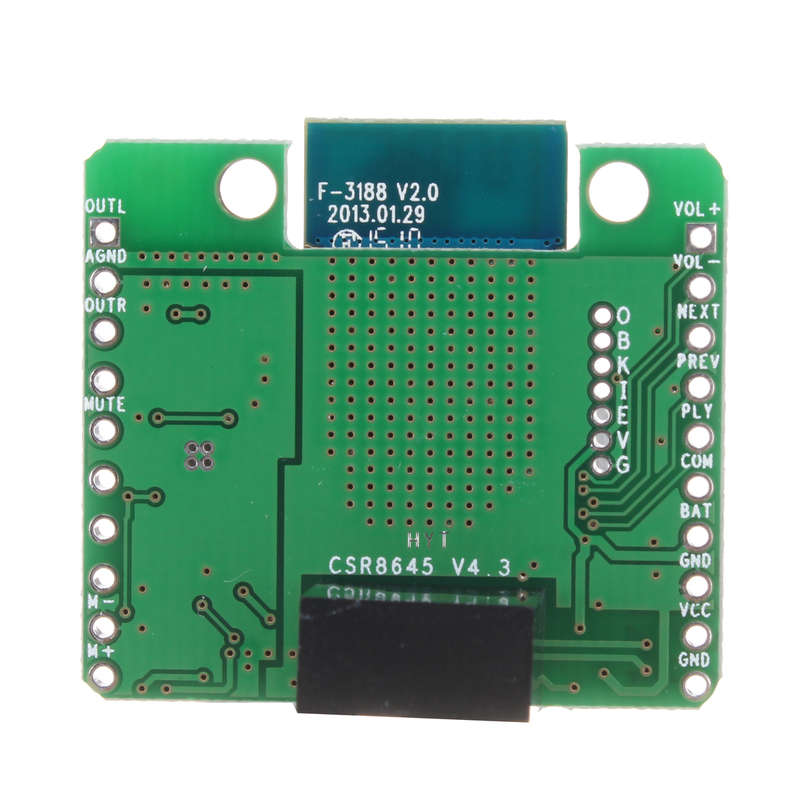

GND and BAT power the 3.7V lithium battery.

GND and VCC are 5V or 12 and are selected according to DC isolation.

OUTL, AGND, and OUTR are balanced outputs and can be directly connected to input devices such as headphones, amplifiers, and stereos.

COM is the public end of the button. Connect the other end of the button to VOL+, VOL-, PREV, NEXT, and PLY.

M+ and M- are the positive and negative sides of the microphone.

Package included:

1 x CSR8645 bluetooth 4.0 Receiver Module
