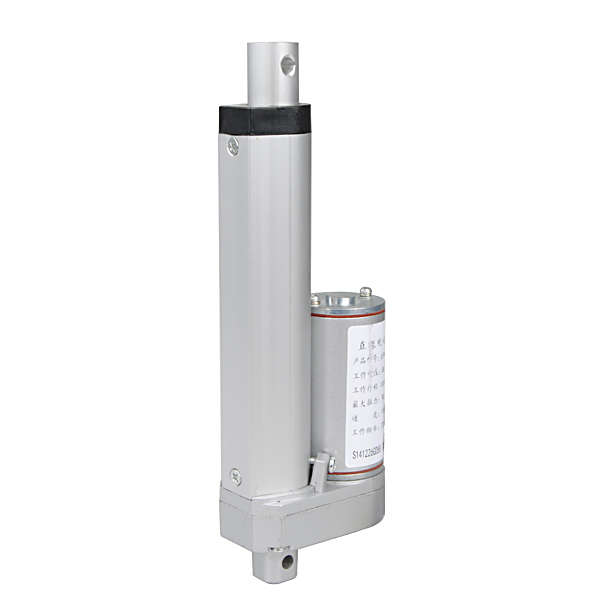

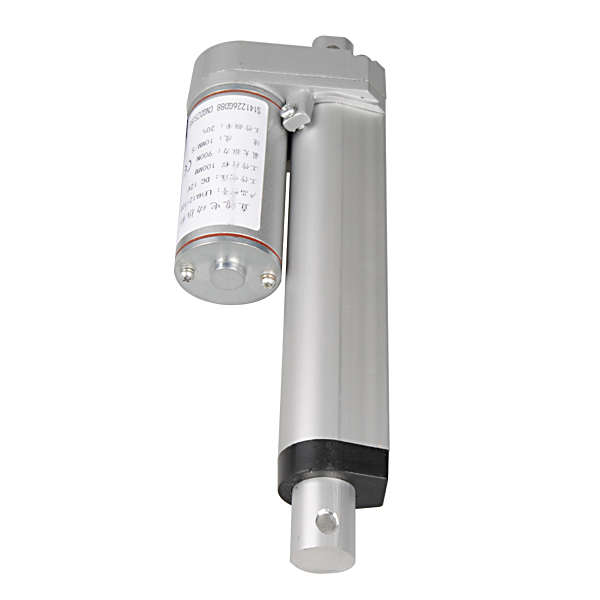

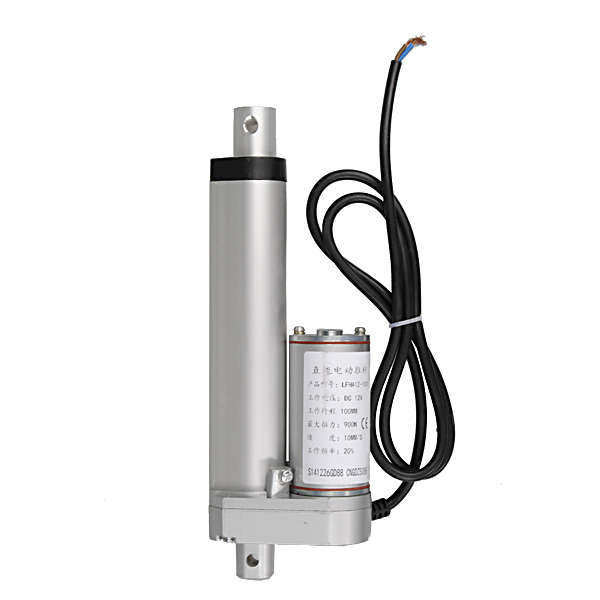

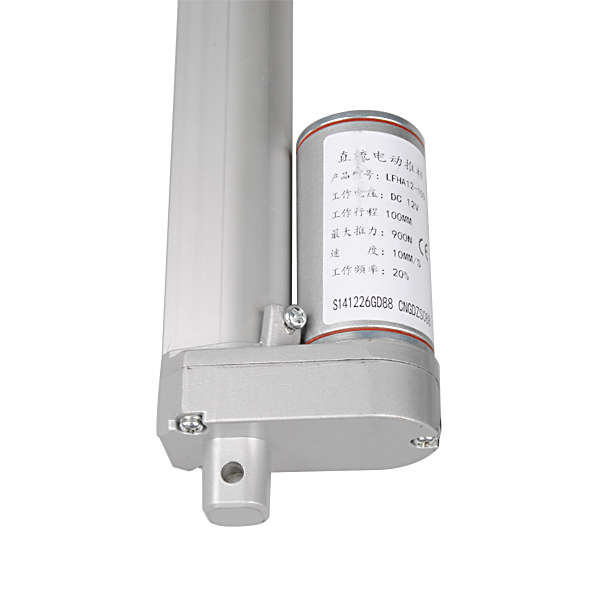

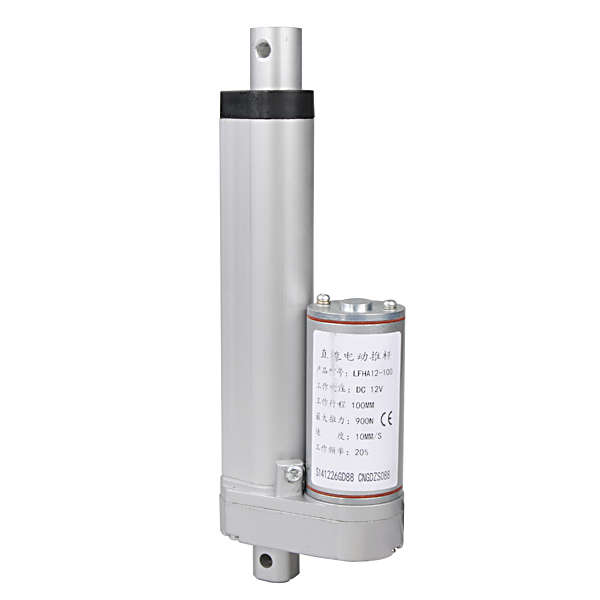

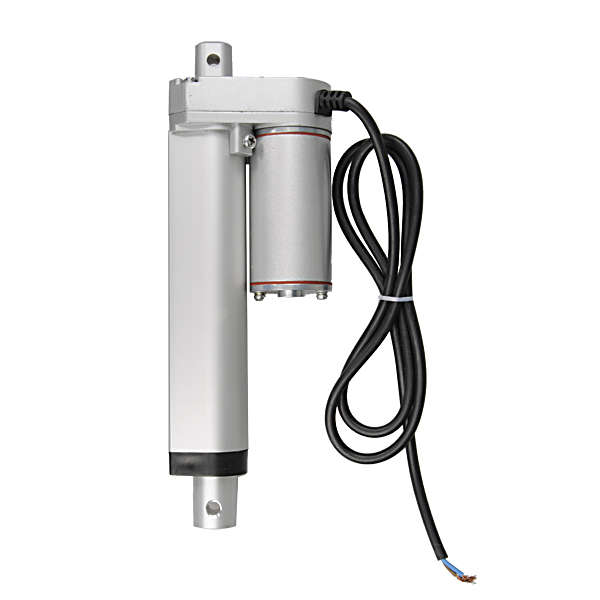

12V DC 50/100/150mm(2/4/6 inches) Stroke Mini Linear Actuator
New
25 were available
Indicative market price:
R1,319.56
R659.78
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

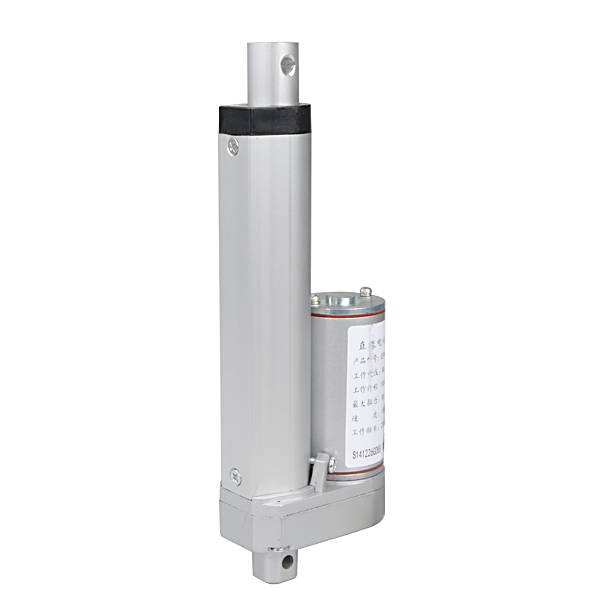

12V DC 50/100/150mm(2/4/6 inches) Stroke Mini Linear Actuator 900N(90KG/198LBS) load 6mm/sec(0.24inch/sec) Speed
Features :
1. Input : 12V DC 2. Load : 900N = 90KG = 198LBS 3. Speed : 6mm/sec = 0.24inch/sec (no-load 10mm/sec) 4. Limited switch : Yes 5. Duty cycle : 10% 6. House material : Aluminum Alloy 7. Inner tube material : Aluminum Alloy 8. Stroke length : 50mm = 2inch/ 100mm = 4inch/ 150mm = 6inch for option ~ 9. Color : Silver 10. Operation temperature : -26 to +65 ??br />11. IP Class : IP54
12. Application : Car, Electric Bicycle, Fan, Window, Printer, etc.

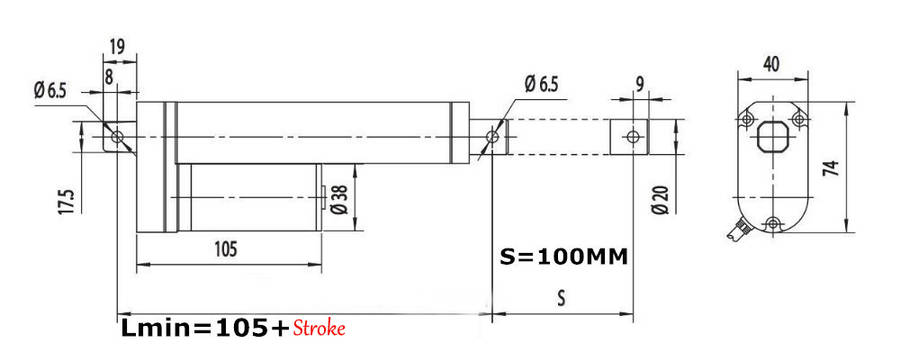

Diagram :
1. Retracted length = Lmin = 105+Stroke. Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop automatically. 2. Stroke means the movement length of linear actuator. 3. Lmax = Lmin+Stroke = 105+Stroke+Stroke Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop automatically.

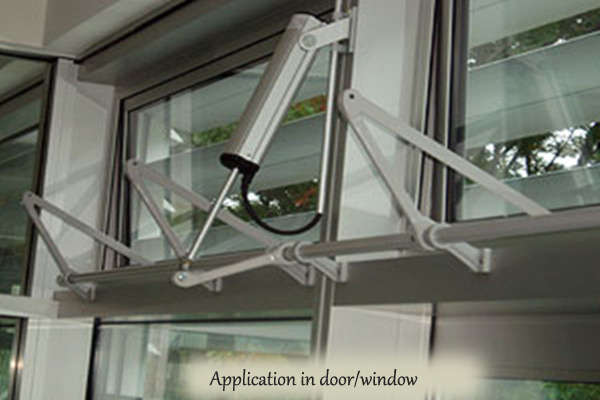

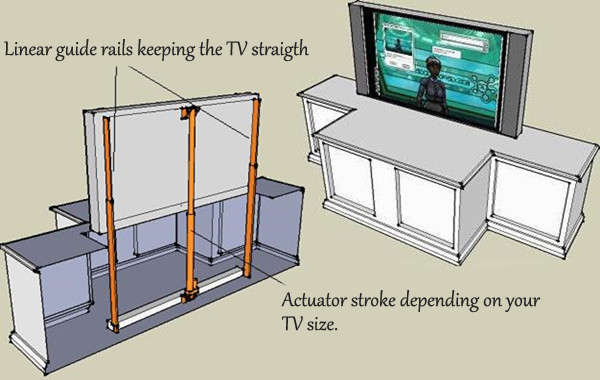

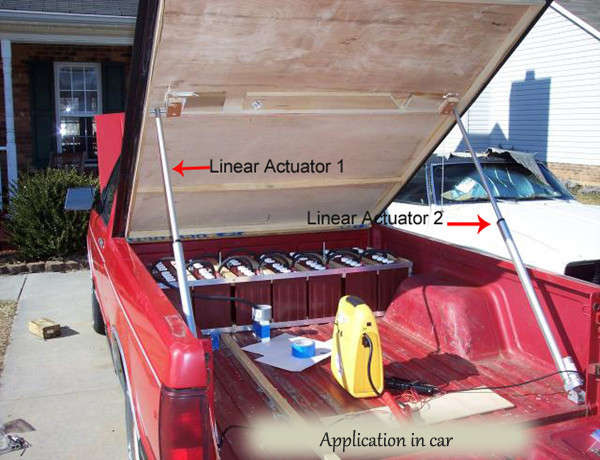

Application :
Package includes :
1 x 12V DC Mini Linear Actuator (50/100/150mm stroke optional)
