How to use:
*Start to run the car engine for a while, when oil temperature turns to be about 50 degrees, start pumping oil.
*Then connect the pump to the power, run it for a while, and observe whether the inlet and outlet is normal.
*Next,open the filler cap,get dipstick out, force the tube into the bottom of the joint, until the tube does not move; then put the inlet pipe from the oil dipstick into in end (the tube into the bottom of the tank, the bottom concave place, in order to pump the oil completely); as no oil or pumping up very slowly or intermittently, it is generally caused by loose pipes and fittings. You have to install the pipes and fittings again.
*After oil pumping, remove the tube, and then run the pump for a while, pump the remaining oil inside the pumping clean, or pump water for a while until the pump head gets clean.
*If you have not used it for a long time, it may have no suction, then just pour the water in the pump, and run the pump for a few minutes until the air is all out.
Specification:
Rated Voltage: DC 12V
Rated Power: 60W
Maximum Pressure: Max. 0.8MPA
Maximum Flow: 5L/min
Color: Black
Pump Diameter: Approx. 4.8cm
Length: Approx. 14.5cm
Outlet pipe size(Dia.*L): Approx. 10mm*137cm
Inlet pipe diameter: Approx. 8mm,6 mm Length: Approx. 110cm
Cable Length: Approx. 68cm
Clips Length: Approx. 8cm
Application: Widely used in general industrial equipment, medical equipment, chemical equipment, vehicle cleaning, agricultural spraying, zo pipeline pressure, air cleaning cooling, coal and metallurgical industries,shipbuilding, drinks, carpet and floor cleaning, water purification and water treatment equipment.
Note: If you want to connect this pump to AC power, you will need a power converter.

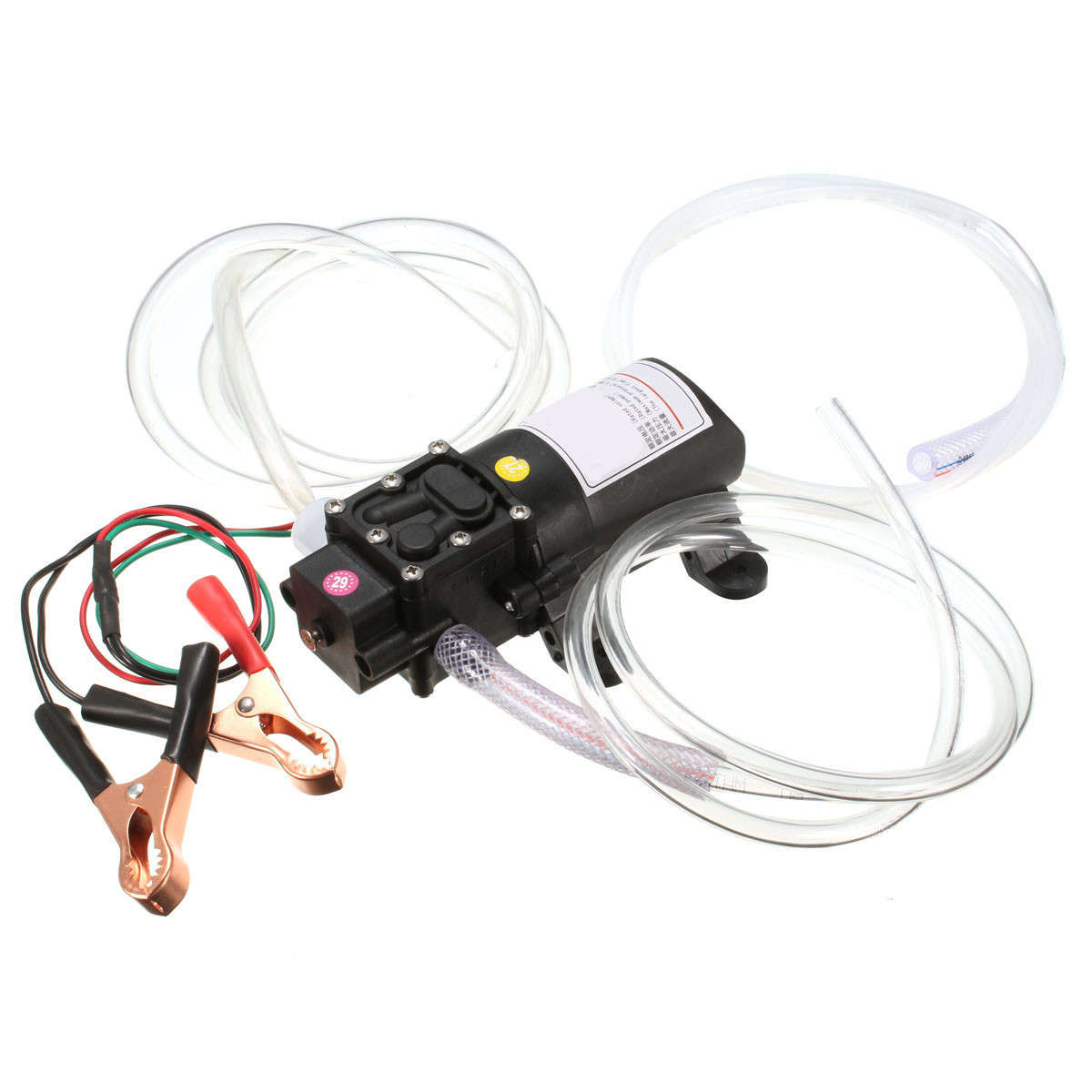

Package includes:
1 x Oil Pump
1 x 10mm outlet pipe
1 x 8mm hosepipe
1 x 6mm hosepipe
Details pictures:
