12V Digital Timer Switch (12V DC, 16 Schedules)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
12V timers in South Africa are often used in remote battery- and solar-powered systems (solar panel, battery and solar charge controller):
- Low consumption wall lights and security lights scheduled to work on specific hours of specific days
- Fans in a cattle shed or chicken coop during day time
- Gates to open and close at regular times
- Drip irrigation systems that come on and off once or twice a day for a few minutes
- Fish feeders and animal feeders
- Small 12V pumps for fish ponds, water tanks
- Water circulation systems for solar geysers

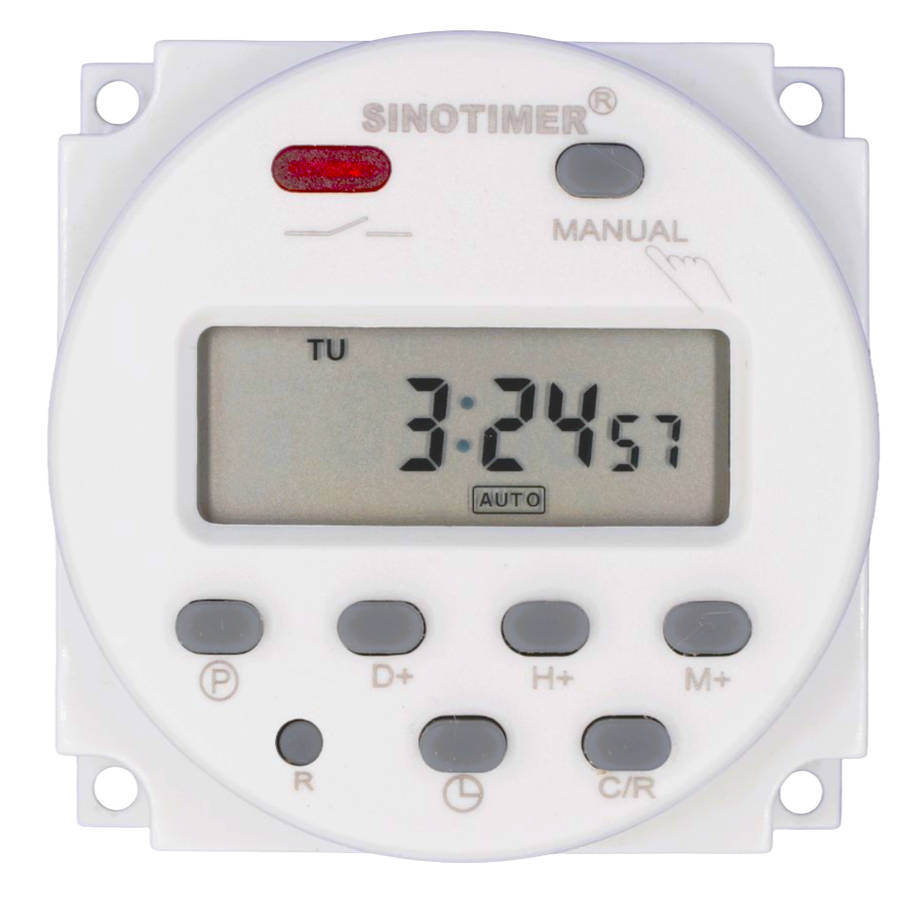

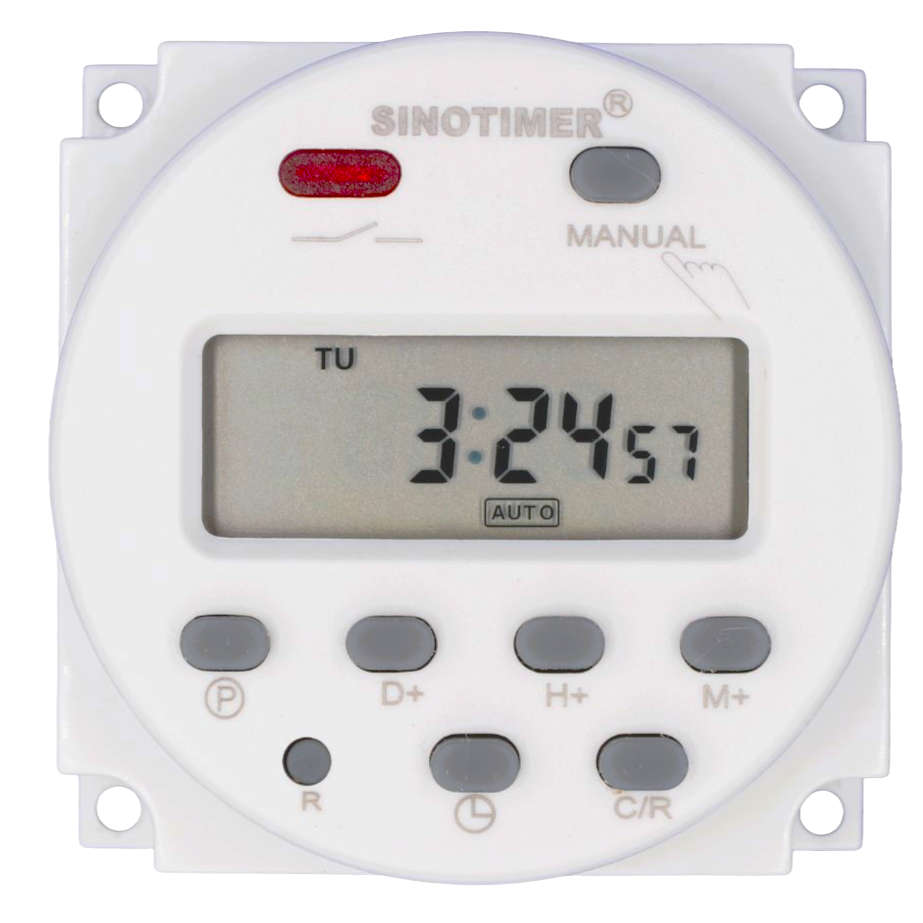

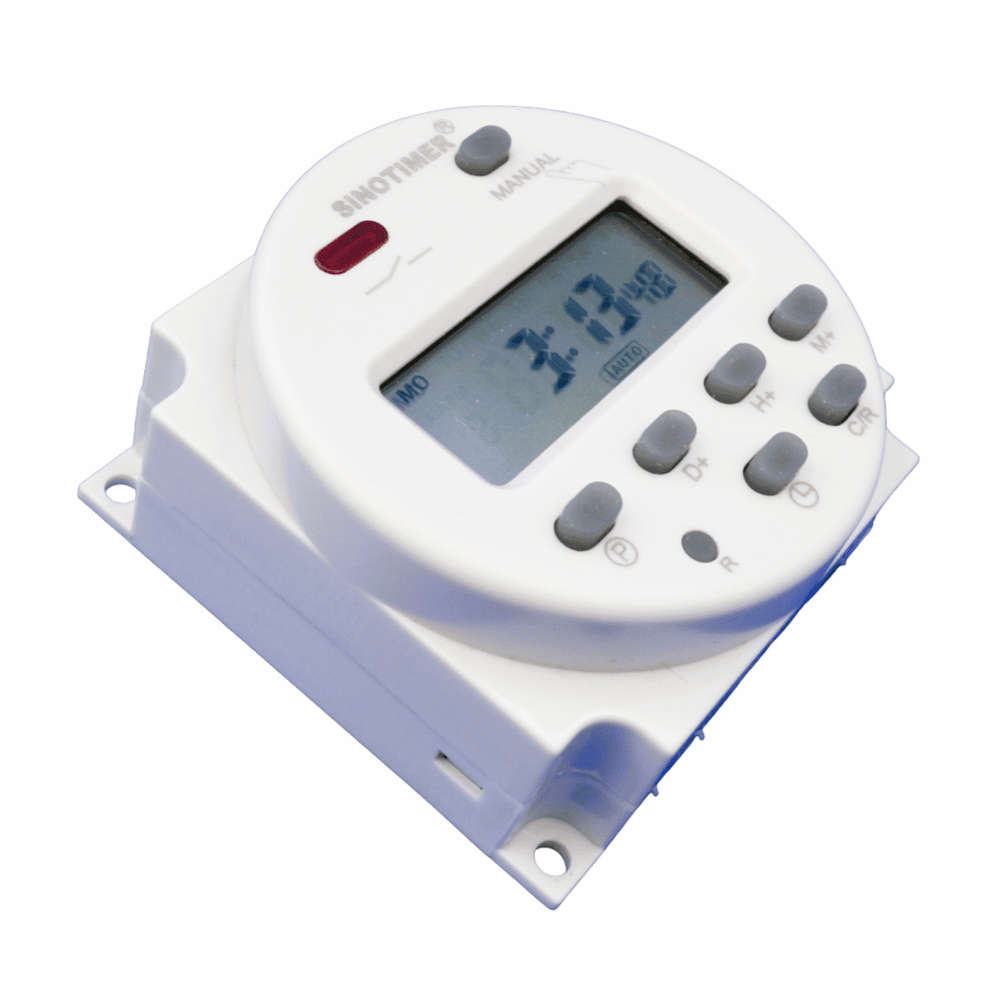

The Altimus 12V Timer Switch is a programmable digital timer with 16 ON/OFF schedules and 1-minute intervals. It is a practical solution to manage a battery- or solar-powered system at certain times on certain days of the week (open at 7:45am and close at 6:00pm Monday to Friday for example).
- 12V DC makes it ideal for solar or battery-powered installations
- Can set up to 16 ON/OFF schedules for any chosen days of the week or groups of days
- Features: clock, timer, day, h+(setting hours), m+(setting minutes), manual override, reset
- Built-in Lithium battery: schedules are are kept in memory even in absence of power
- Safe lock: all buttons will automatically lock after 30 seconds of no operation, preventing children or others from accidentally messing with the schedules

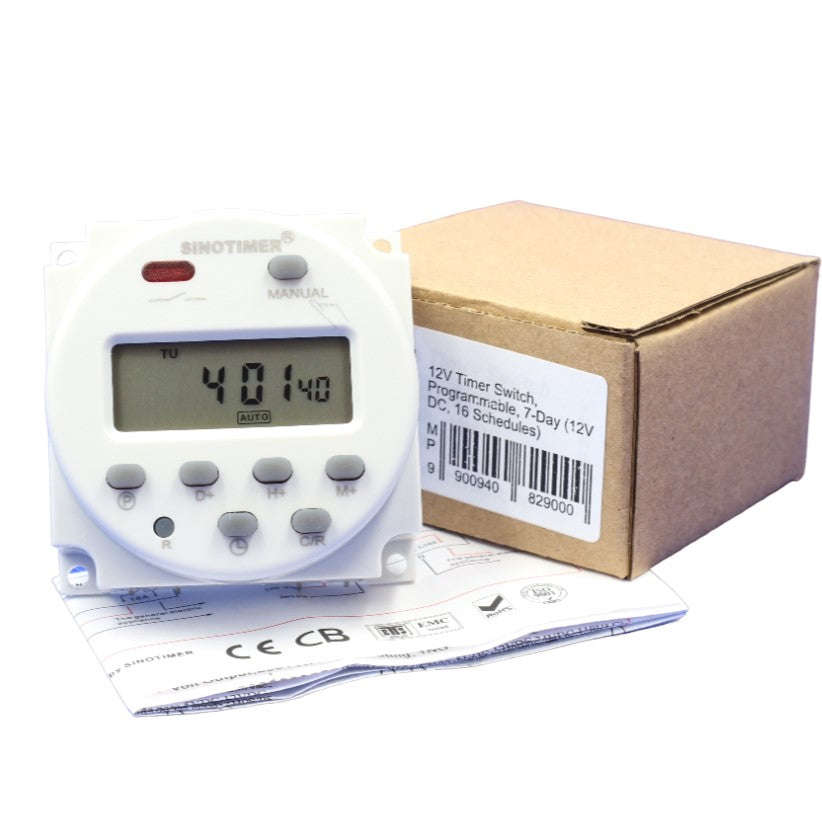

- User manual in English included in the box

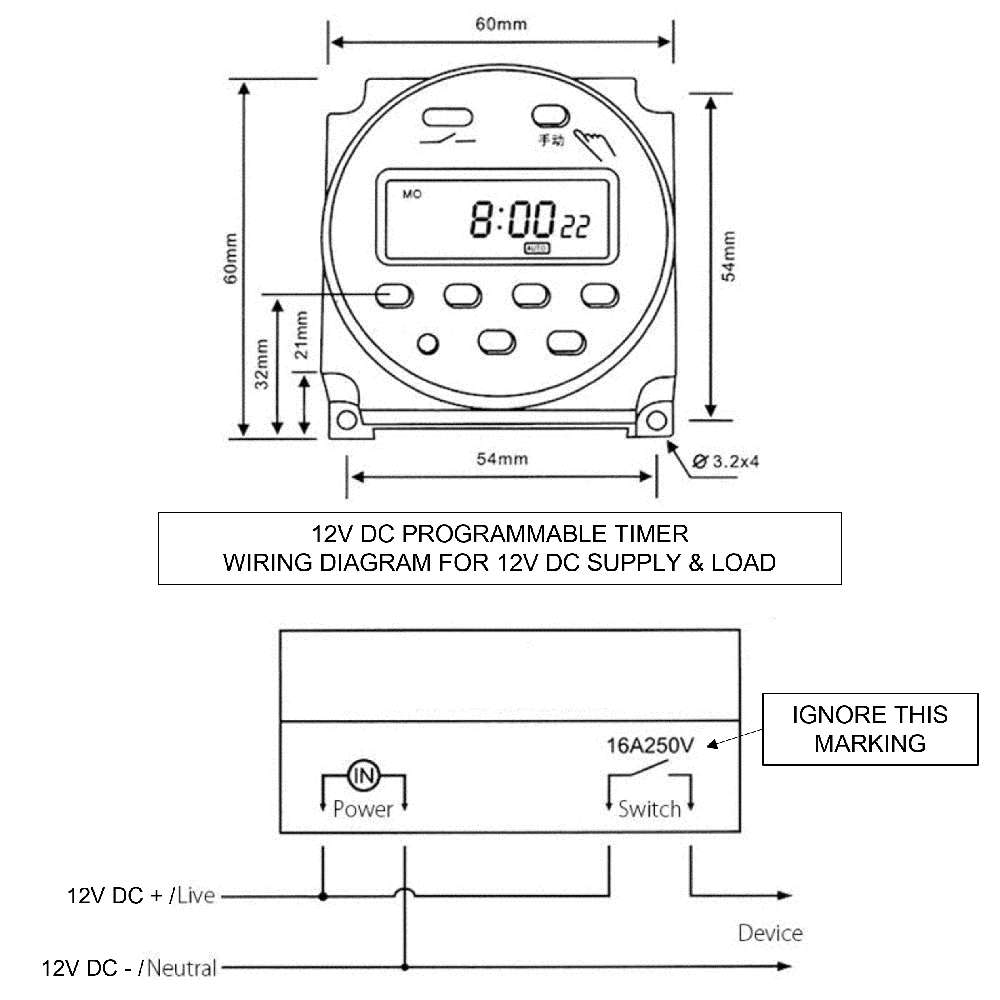

This 12V timer is designed to be used with 12V DC power supply and 12V DC load: use "Connection diagram A" in the user manual (don't get confused - the user manual is for 12V DC and 230V AC timers, hence multiple diagrams). The connection diagram is visible in one of the picture on the left of this text.
Specifications
- Type: Weekly Programmable LCD Electronic Timer
- Color: White
- Rated voltage: 12V DC
- Full time range: 1min - 168hrs
- Internal battery: 1.2V/40mA (rechargeable batteries)
- Operating temperature :-10 to +40C
- Operating temperature :-10 to +40C
- Max output current: 16A
- Minimum interval: 1 minute
- Panel mounting (4 screws)
- Dimensions: 60 x 60 x 32mm
- Weight: 40g
If you're looking for a timer with a 1-second interval (to operate gate drives, locks, feeders for example), we recommend you look at the 12V 1-second interval digital timer.
Click here to view all timer switches available for sales in South Africa.
