1 | Rated voltage | 12VDC |
2 | Operating voltage | 6-15 VDC |
3 | Rated current (mA) | Max.20mA, at 12VDC |
4 | Output sound pressure (dB)10cm | Min.95dB, at 12VDC |
5 | Resonant whisker rate (Hz) | 3500±500 Hz |
6 | The tones | Continuous |
7 | Operating temperature () | -20 - +70° C |
8 | Storage temperature (° C) | -30 -+80° C |
9 | Environmental protection | Yes |
10 | Net weight (g) | Approx 3g |

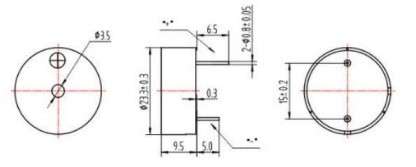

Unit of size drawing: mm
Basic tolerance: Unless otherwise indicated, the general tolerance is 0.5mm
Shell material: black PPO
