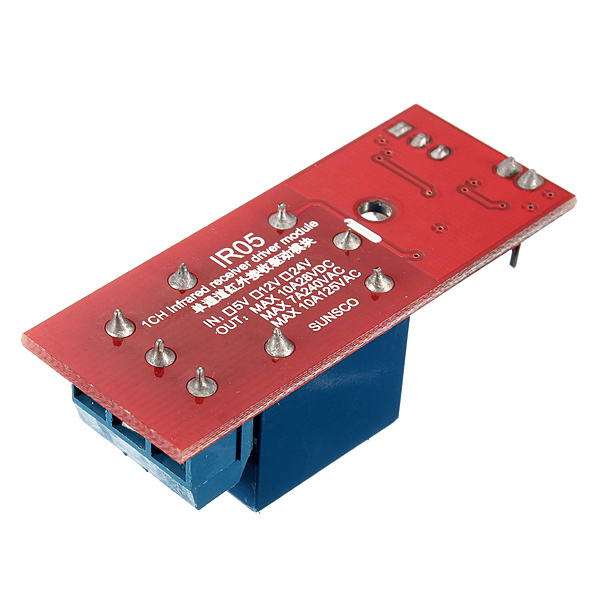

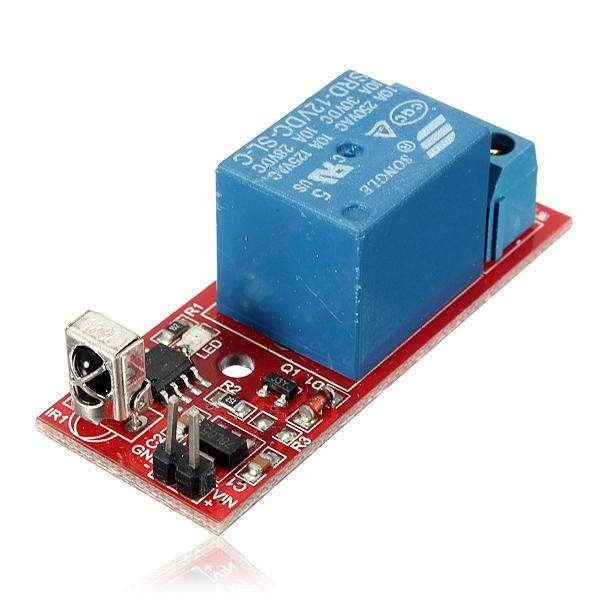

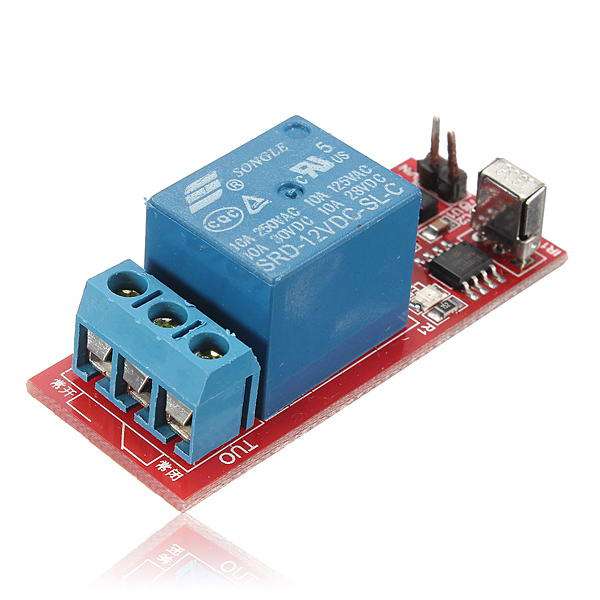

12V IR Control Receiver Board 1 Channel Relay With 2 Key Remote Control
Description:This is the self-locking Receiver + Remote Control Kit. When you press the ON key, the relay of receiver board close, LED lights; when you press OFF key, the relay release, LED off.
1 channel Self-locking IR Receiver Controller:Operating voltage: DC 12V
Quiescent current: ≤ 1mA
Pick-up current: ≤ 80mA
Remote control distance: MAX 8 meters
Work status: Self-locking
Size: 50 x 20 x 20(MM)
Infrared Remote Controller:Using UPD6122 chip, NEC encoding format
User code: 0x00FF
Key value: "ON" Button is 40; "OFF" Button is 19
Battery powered: 1 x CR2025
Size:
86 x 40 x 6(MM)
Note:The receiver board must be equipped with a suite of remote control, it cann't recognize other remote controls.
The load capacity of this relay is 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A.
Package included:1 x Receiver Board
1 x Remote Controller
