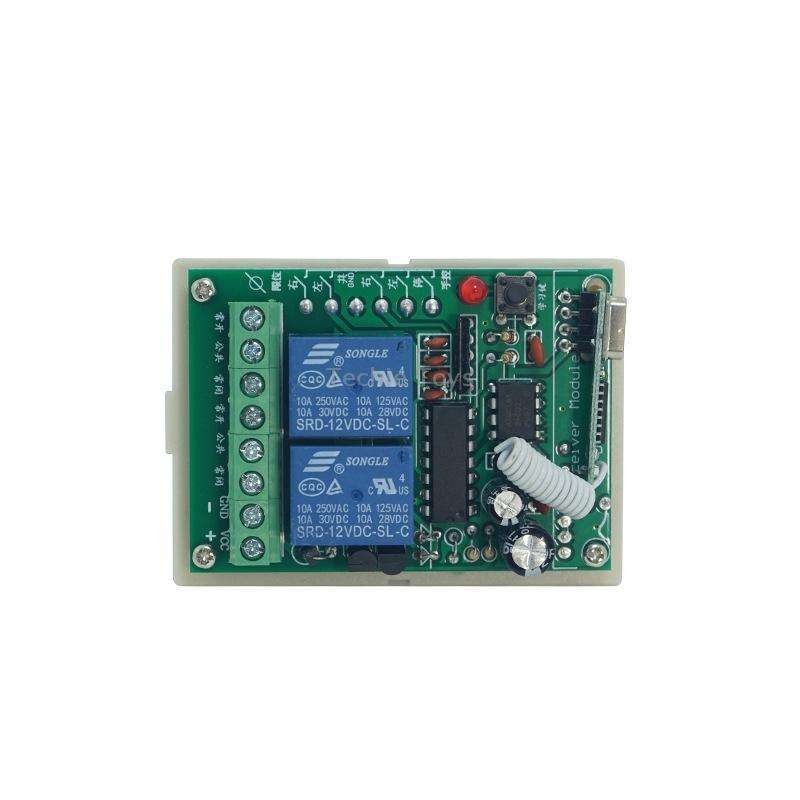

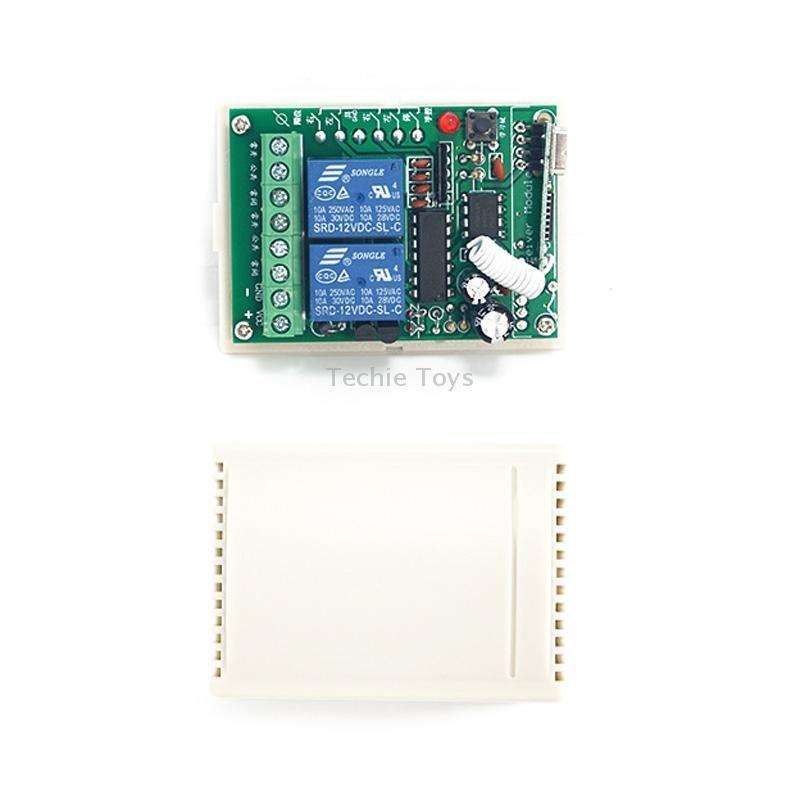

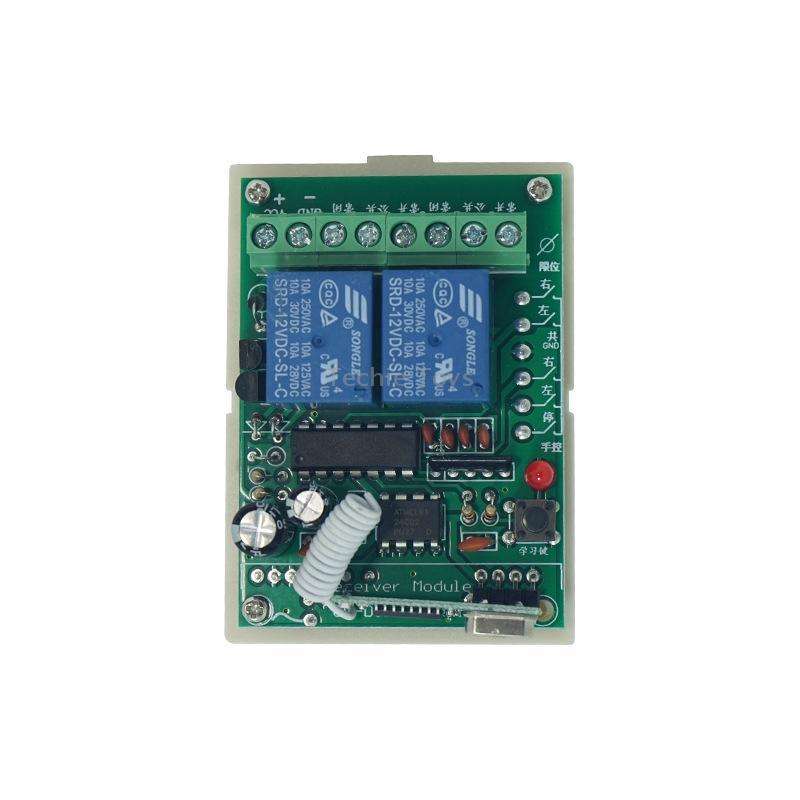

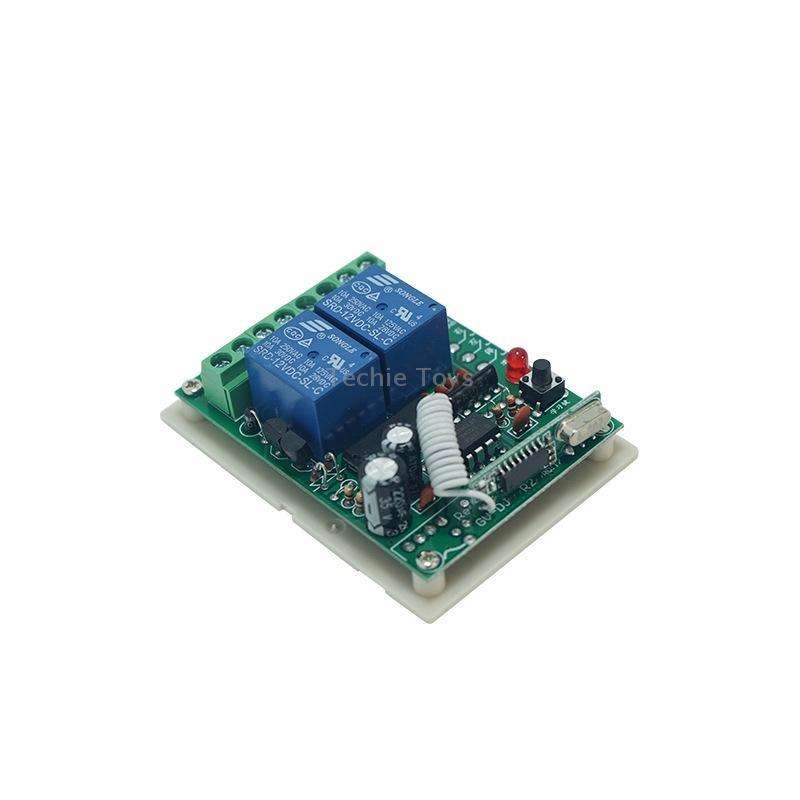

12V Motor Positive and Reverse Remote Control Receiver Board(Without Remote Control)

1. Two passive outputs, can be independent output, also can be non-lock and latch output. dual control function, both hand control and remote control. learning button for stop function
2. High receiving sensitivity, remote control distance up to 50-100m, using high-capacity relays, can control on the kilowatt of electrical appliances and equipment
3. Adopt wireless coding technology, no direction, the switches do not interfere with each other. double limit, normally open type limit function. to the bit to give signal to the single-chip computer control output
4. Operating voltage: DC12V
5. Receiving frequency: 315MHZ
6. Receiving sensitivity: -105db
7. Working mode: pointing, interlocking, self-locking
8. Load: up to 10A
9. Coding type: learning type
10. Coding mode: learning code
11. Remote motor forward and reverse controller can change the working mode by learning different ways
12. Scene application: mainly used to control the motor forward and reverse and stop, automatic doors, rolling shutter doors, etc.


TBD0603391001A
