12V Universal Electronic Antenna Van Radio Window FM AM Stereo Adhesive

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Description:

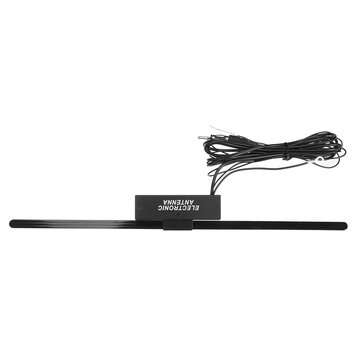

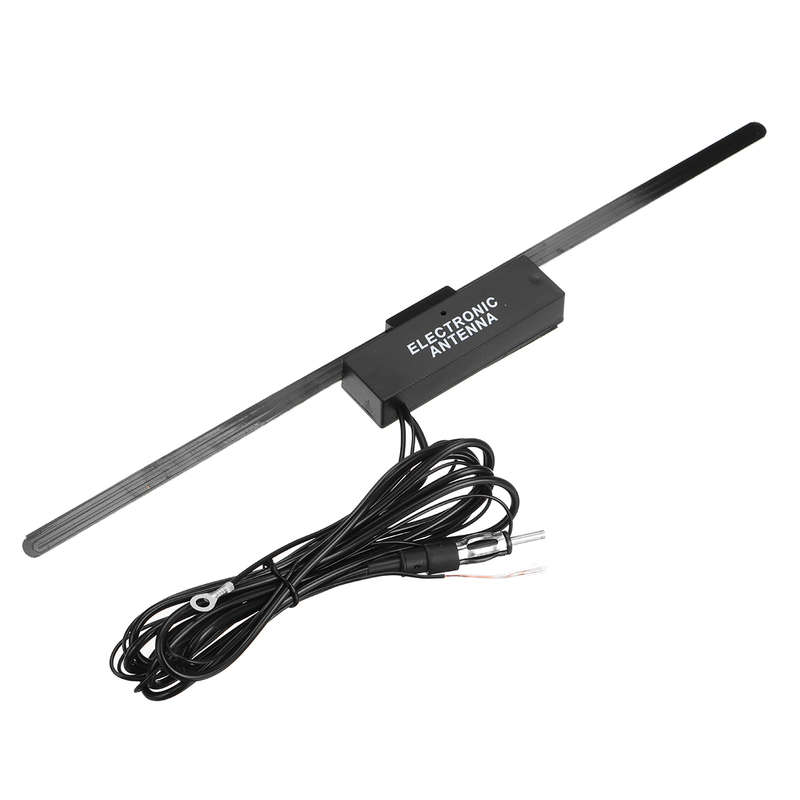

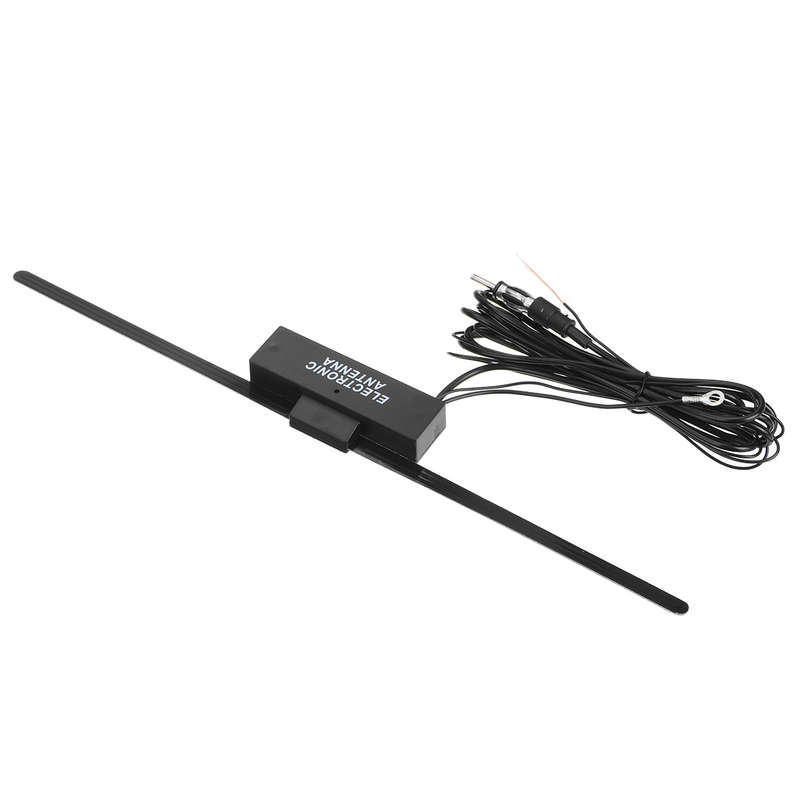

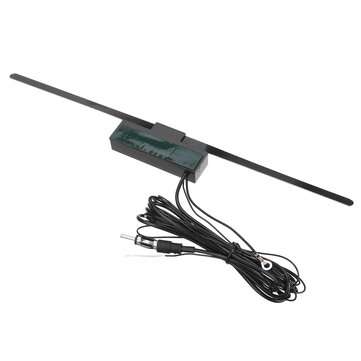

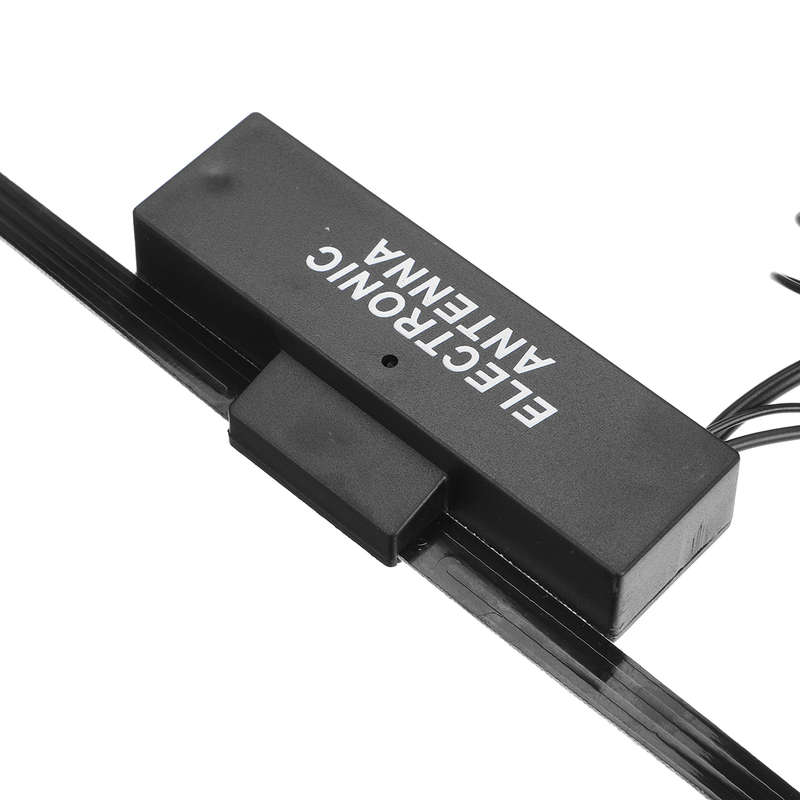

Active window antenna including integrated amplifier.

Significantly improves radio reception.

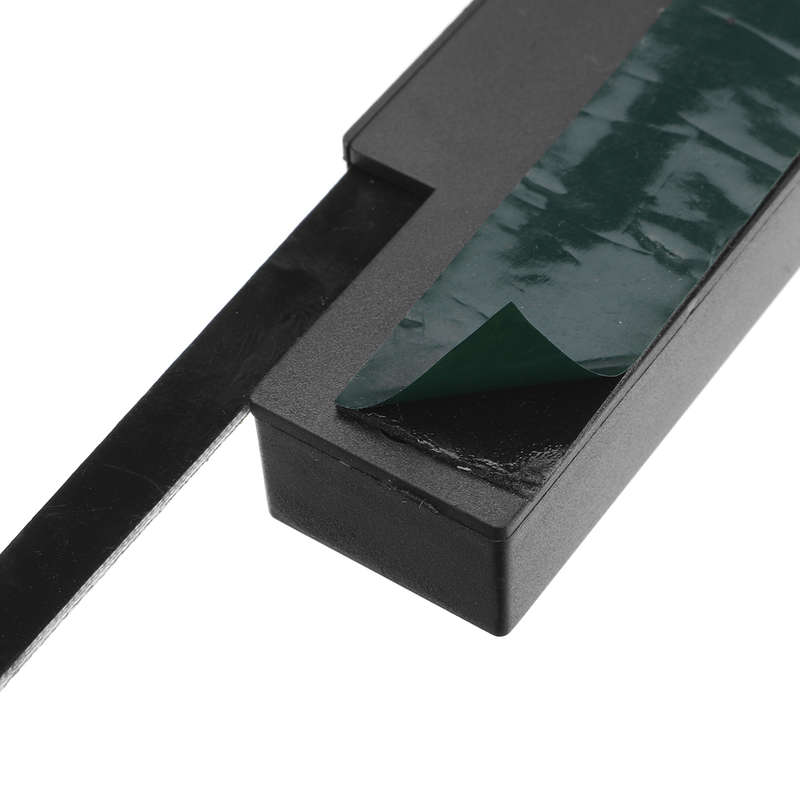

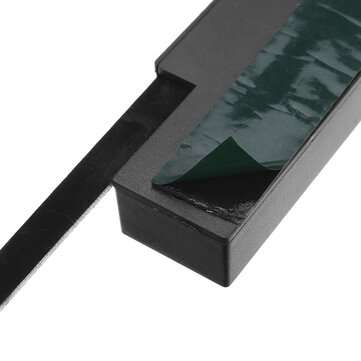

Assembly with double-sided adhesive tape.

Specification:

Color	Black
Impedance	75 ohm
DIN antenna connector	150 ohm
Gain	up to 25dB±3dB
Frequency range	FM 76-110MHz / AM 525-1700Kh
Power supply	10-14V(suitable for cars and trucks)
Cable length	about 2.20m, with amplifier power supply
Use a ground cable of	about 15 cm to ground directly to the antenna

Assembly:

Glue the antenna to the desired position.

Route the antenna cable.

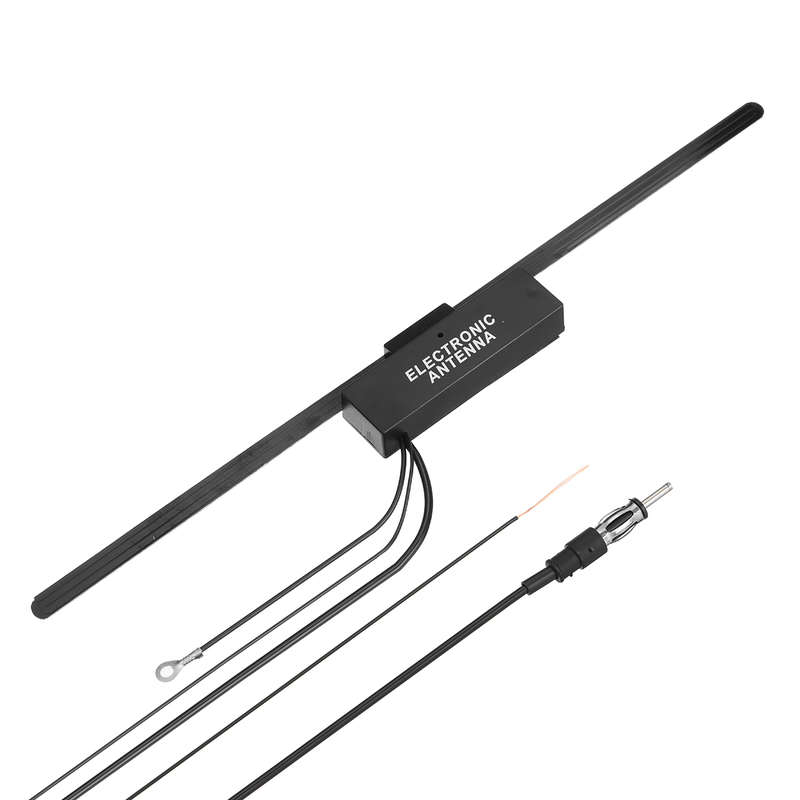

Connect the antenna connector and the power supply to the radio.

Please do not access the power supply at the active antenna output (remote) from the radio!

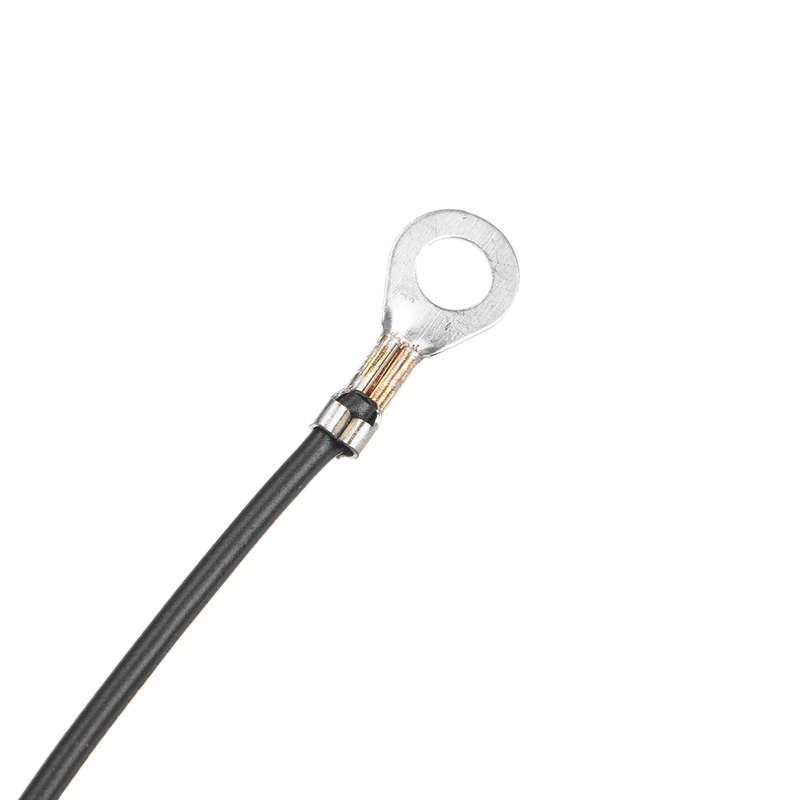

Connect the ring eyelet on the earth cable (earth connection) to a suitable earth point on a screw or the body, preferably on the back of the radio.

Package Included:

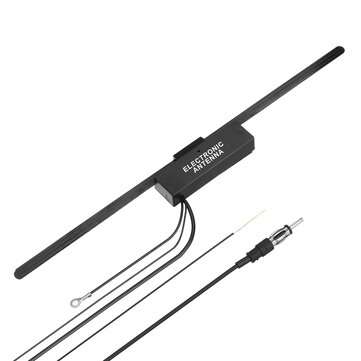

1 X	Car Radio Window Antenna
