About:

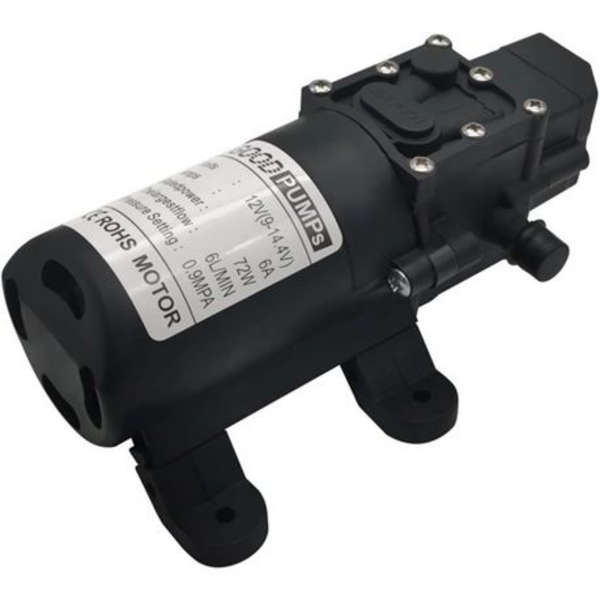

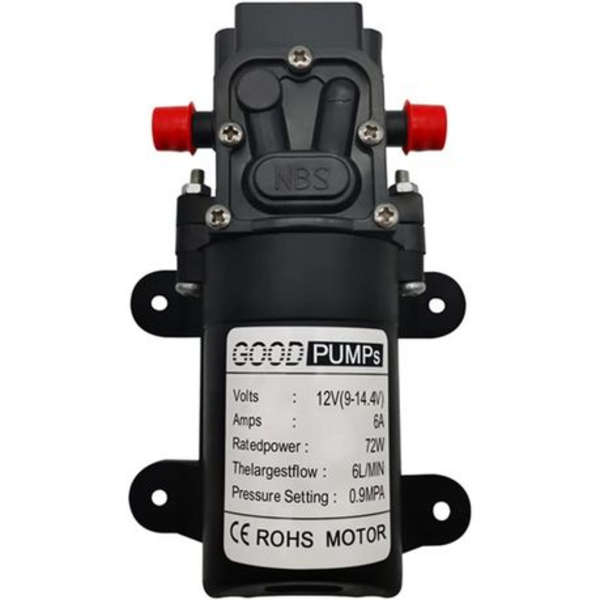

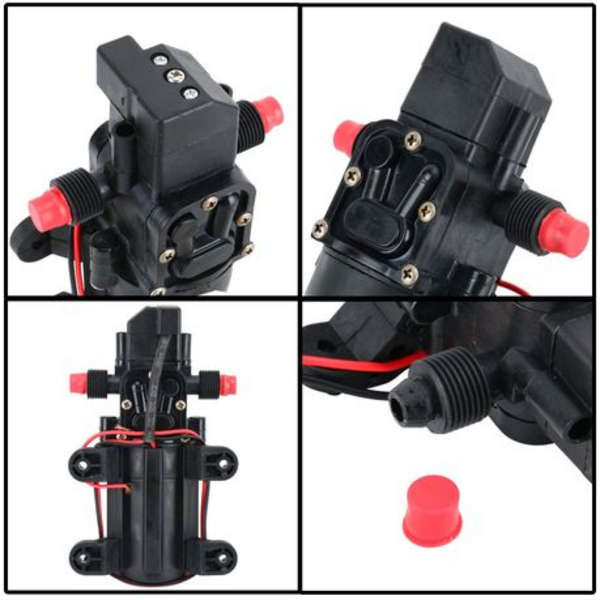

This 12V water pump is self-priming, draws 6 amps, and features a built-in pressure switch set to 9 bar. In South Africa, it is commonly used for off-grid applications such as water storage, caravan or camper van water supply, boating, and as a pressure booster pump. It is also suitable for portable solutions like car wash sprayers and DIY projects requiring water transfer. For applications like portable gas geysers, caravan/camper van plumbing, or drip irrigation systems that need a maximum pressure lower than 9 bar, we recommend considering this 12V water pump.
Key Features:
- Automatic pump pressure switch set at 6 bar (130 PSI)
- Operates on 6A current, ideal for 12V batteries
- Sealed pump body and switch to prevent moisture and dust ingress, with electro-coating for corrosion resistance
- Versatile applications: freshwater circulation in campers, solar water systems, drip irrigation, fish tanks, hydroponics, and aquaponics
- Reliable operation in wet environments when installed correctly
- Can be installed above the water tank (self-priming)
- Not recommended for continuous operation for several hours
Specifications:
-Type: Self-priming water pump with 2-chamber diaphragm
- Working voltage: 12V DC
- Maximum flow: 6.0L/min
- Rated current: 6A
- Rated power: 72W
- Pump pressure switch: 9 bar (130 PSI)
- Inlet & outlet diameter: 10mm Hose Barb
- Maximum liquid temperature: 60 C
- Run dry: Not recommended
- Motor: Permanent magnet, intermittent
- Duty protection: Thermal overload, automatic restart
Instructions:
- Open the outlet line before starting the pump to prevent airlock.
- The pressure switch will automatically shut off the pump when the outlet line is closed and pressure reaches 5.5 bar.
- The pump pressure switch will restart the pump when the outlet pressure drops.
- Designed to work with a 12V battery and/or a solar panel connected through a 12V solar controller.
What's in the box
1x 12V Water Pressure Pump with 9bar Pressure Switch (6.0L/min, 12V DC)
