12V Water Pump, Built in Pressure Switch, 4.5L/min, 9 BarSelf-Priming

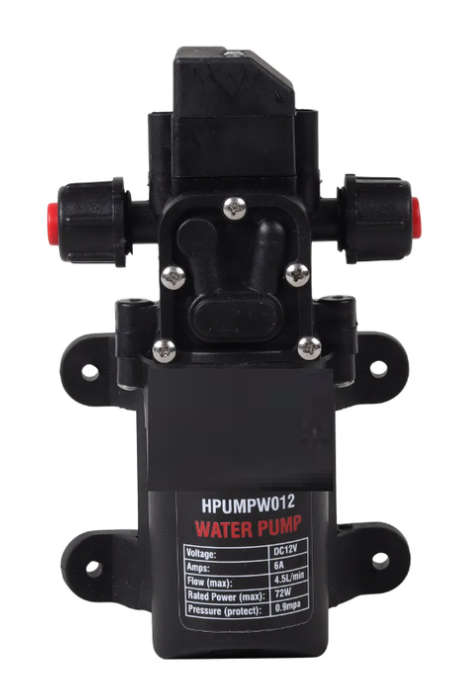

12V DC Self-Priming Water Pump

Discover our versatile water pump designed for various off-grid and portable applications in South Africa, from camping and boating to irrigation and car washing. This pump ensures quiet operation and reliable performance when installed correctly.

Features:

• Automatic pressure switch set at 9bar (0.9MPa)
• Ideal for freshwater circulation, solar water systems, drip irrigation, and more
• Sealed switches and electro-coating prevent corrosion
• Soft rubber mounting tabs reduce vibrations

How to Use:

• Ensure the discharge line is open to prime the pump
• Automatically shuts off at 9bar pressure and restarts when pressure drops
• Compatible with 12V battery or solar panel via a 12V solar charge controller
• Secure 10mm pipe connections with clamps or cable ties

Specifications:

• Type: Self-Priming Water Pump, 2 chamber diaphragm
• Working Voltage: 12V DC
• Maximum Flow: 4.5L/min
• Rated Current: 6A
• Pressure Switch: 9bar (0.9MPa)
• Inlet & Outlet Diameter: 9.5mm (3/8") hose barb, suitable for 10mm pipe
• Max. Liquid Temperature: 60°C
• Self-Priming Vertical Suction Lift: Up to 1.2m
• Run Dry: Not recommended
• Motor: Permanent magnet, Intermittent duty protection
• Dimensions: 17 x 10 x 6cm (length x width x height)

What's in the Box:

• 1 x 12V DC Self-Priming Water Pump
