12VDC 1/2inch Magnetic Valve Electric Solenoid Valve for Water Air N/C
New
30 were available
Indicative market price:
R299.00
R116.99
61% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

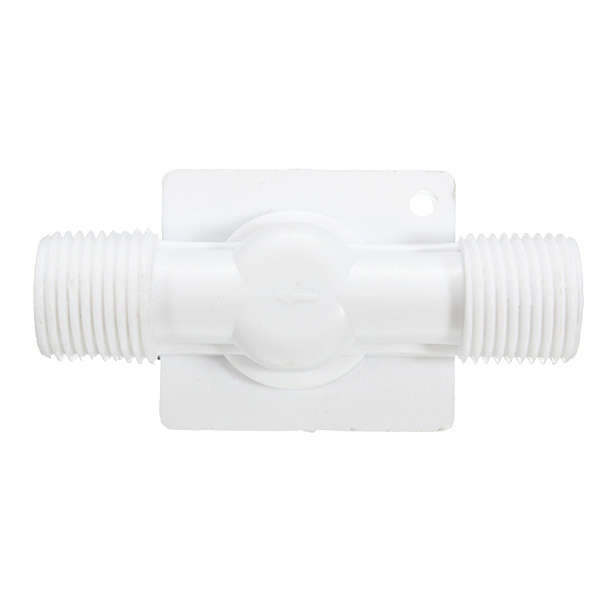

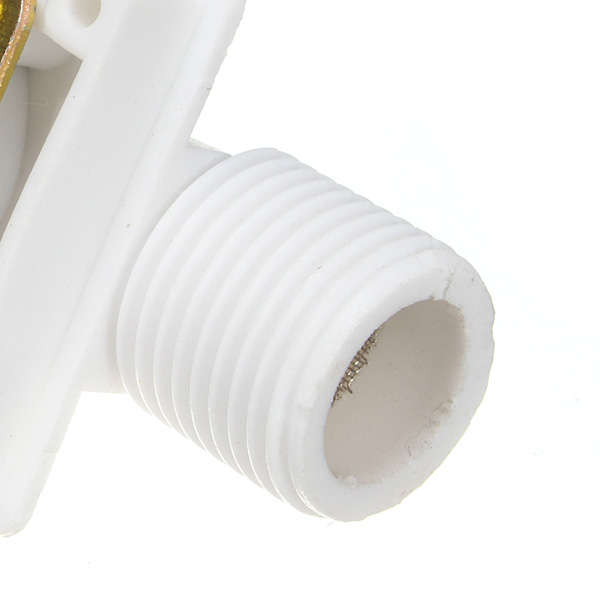

Description : 12V DC 1/2" Durable Magnetic Valve Electric Solenoid Valve for Water Air N/C Suitable for use in water and low viscosity fluid applications Specifications : Voltage : 12V DC Coil resistance : 37Ω±0.25Ω (when 20¿¿¿) Working pressure : 0.02 - 0.8MPa Medium temperature : 1¿¿¿ - 75¿¿¿ Operation mode : normally closed Valve type : diaphragm (operated by Servo) Respond time : open≤0.15s, off≤0.3s Flow property : 0.02Mpa≥3 L/min,0.1Mpa≥12 L/min, 0.8Mpa≥35 L/min Service time : ≥100 myriad time Maximum size : 84mm x 53mm x 41mm Diameter of screw : 19mm Diameter of connector : 14mm Length of screw : 17mm Package included : 1 x 12V DC 1/2" Electric Solenoid Valve Details pictures :
