12VDC digital temperature controller

12VDC digital temperature controller

New 47 available
R82.50
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
BotShop3163
97.83 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-241
Bob Shop ID
615309446

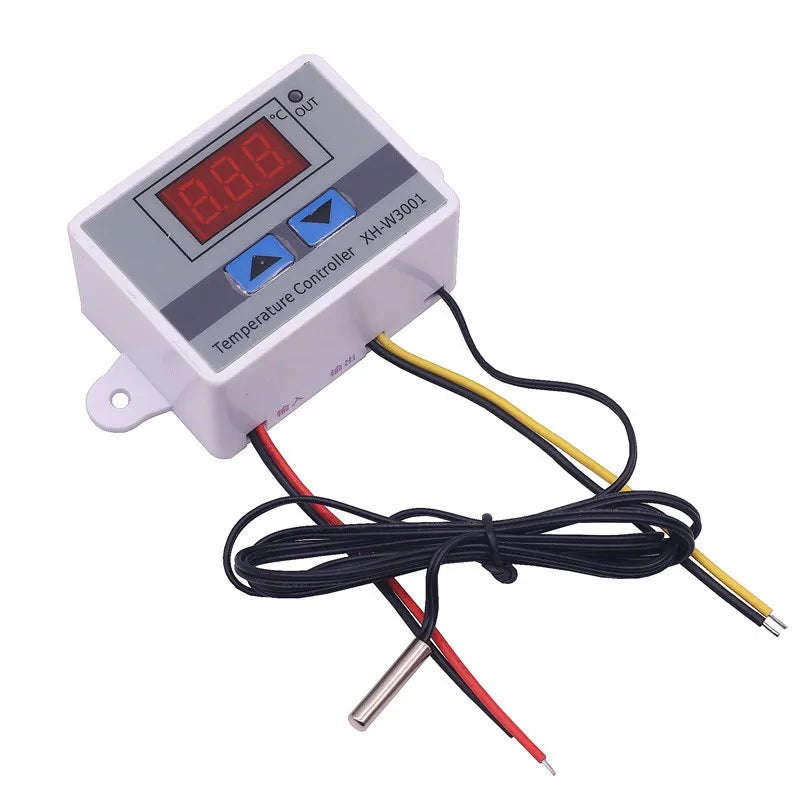

W3001 Temperature controller.

The W3001 Mini thermostat Temperature controller is a 12-volt Temperature controller with a 7-segment display and 2-switch keypad for setting temperature and other parameters. An NTC thermistor is used for temperature sensing and has an accuracy of 0.1 C. Ideal for controlling a heating element at a specific set temperature.

W3001 Temperature Controller Specification:

Supply voltage: DC 12V (MAX) if spikes higher than 12V add an extra Buck converter for smoothing.
Static current: 35MA, attract current 65MA
Output power: 10A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60°C, Humidity 20% ~ 85%
Dimensions: 60 x 45 x 31mm
Cable length: About 52 cm
Temperature control mode: ON / OFF
Temperature range: -50 ~ +110°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5S
High-temperature protection: 0 ~ 110°C
Resolution: When the temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C

How to program unit:

  • Introduction to code and features
    • PO: Set the start temperature
      • Press the Setup button to enter the internal menu
      • The default display is PO
      • Press the Setup button again to set the required start temperature with the up and down buttons
    • P1: Set the stop temperature
      • Press the Setup button to enter the internal menu
      • The display is P0, switch to P1 with the up and down keys
      • Press the Setup button again to set the required stop temperature with the up and down buttons
    • P2: Set the temperature correction
      • Press the Setup button to enter the internal menu
      • Switch to P2 by pressing the up and down buttons
      • Press the Setup button again to set the required calibration temperature with the up and down buttons
      • Note: The calibration temperature is the difference between the detected temperature and the actual temperature
        • For example, if the detected temperature is 0.5°C higher than the actual temperature, the calibration temperature is -0.5°C
        • The formula is: detected temperature + calibration temperature = actual temperature
    • P3: Set the delay start
      • Press the Setup button to enter the internal menu
      • Switch to P3 by pressing the up and down buttons
      • Press the Setup button again to set the required delay time with the up and down buttons
      • The unit is a minute
      • Note: The delay start is used for compressor refrigeration
        • If it is used in a refrigerator freezer, this value needs to be set according to the compressor back pressure
        • The general setting is 3-6 minutes
        • If you are not using it for control or no delay function is required, skip it directly
    • Note: The appearance of the product may vary depending on the production lot, but the performance is the same.

If you like to see the video LINK: W3001 Programming
