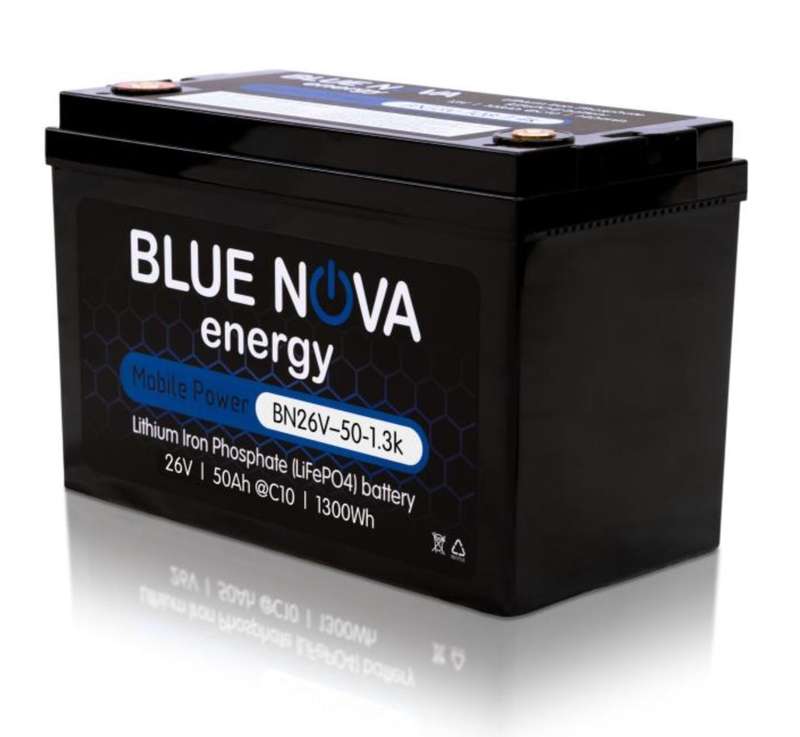

Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Compatible with leading 24V inverters & chargers
GENERAL INFORMATION
Battery Type
Nominal Voltage
Operating Temperature Range
Cycle Life @ 80% DoD
Dimensions (mm)
Warranty Period Terminal
CHARGE / DISCHARGE
Bulk Voltage
Discharge Voltage (min.)
Discharge Current (max.) Charge & Discharge Efficiency
LiFePO4 (Lithium Iron Phosphate)
26 VDC
Charge: 0C — 45C | Discharge: -20C — 55C
> 3000 cycles (1040 Wh @C10, 25C)
327 x 172 x 218mm (W x D x H)
3 Years
M8 (female)
28.4 VDC 24.0 V
Recommended: 10A | Maximum: 50A continuous | Peak: 100A (<5 seconds)
Usable Capacity
1300 Wh @C10, 25C
Operating Voltage Range
24.0 VDC — 28.4 VDC
Cycle Life @ 100% DoD
> 2000 cycles (1300 Wh @C10, 25C)
Cycle Life @ 50% DoD
> 5000 cycles (650 Wh @C10, 25C)
Weight (kg)
13.5 kg
Float Voltage
27.6 VDC
Charge Current (max.)
Recommended: 10A | Maximum: 37A continuous
Self-discharge Rate
< 3% per month
96% - 99% @C1
PROTECTION
Environmental Protection
IP56
Over-current Protection
100 A
Over-voltage Cut-out
31.2 V
Under-voltage Cut-out
20.0
