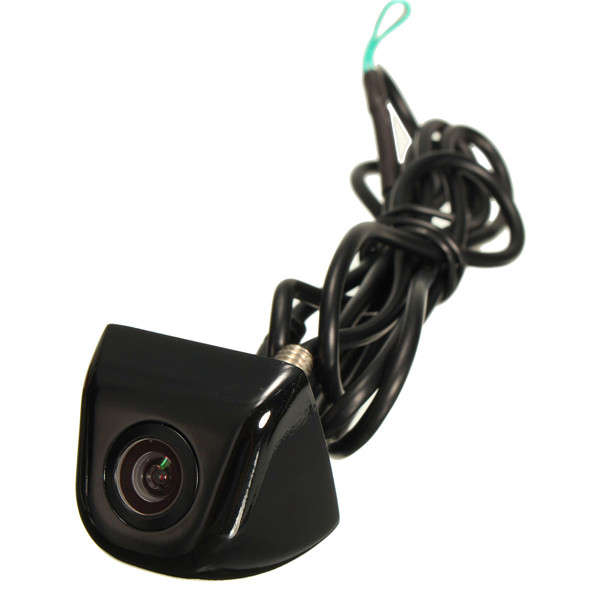

135 Degree Car Rear View CMOS Front Back View Forward Camera Reverse Backup Parking Feature: 1. Support NTSC video system.
2. Embedded mounting in rear bumper.
3. Snap-in design, it is easy to install.
4. High sensitivity and low power consumption.
5. High-definition and 135 degree wide viewing angle.
6. Water-proof, shock-proof and anti-jamming functions.
7. Applicable to variety of vehicles: car, truck, RV, etc.
8. It helps to avoid incidents and accidents abrasion well.
9. Its simple and modest design and small size won't draw any attention.
10. This camera can give you a full sight of the back of your car when you are driving.
Specification: 1. Image Device: 1/4 inch color CMOS
2. TV system: PAL/.NTSC
3. Effective pixels: 628 x 582 Pixels
4. Sensing area: 5.78 x 4.19mm
5. Minimum illumination: 0.3Lux/F1.2
6. Lens angle: 135ﾣ
7. S/N ratio more than 48db(AGC-OFF)

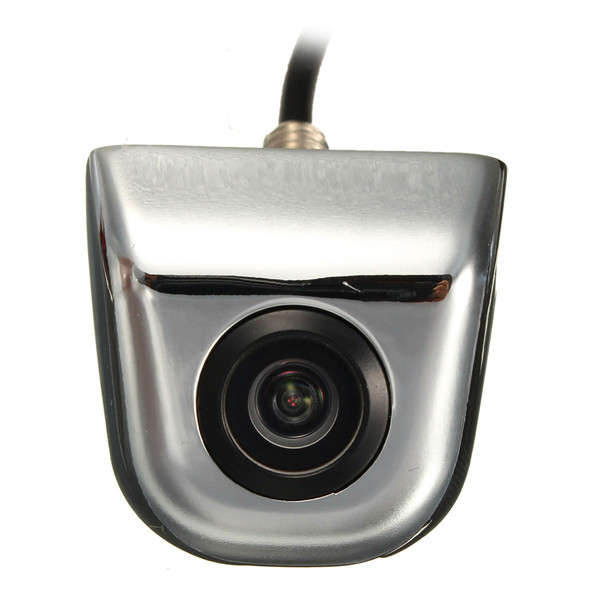

8. Color: Black,White, Chrome, Silver
9. Video output: RCA CONNECTOR, 1.0VP-P, 75ohm
10. Current Consumption: a150mA
11. Power supply: DC 12V
12. Operating Temperature: -30ﾣC to +50ﾣC, RH95%
13. Storage temperature: -40ﾣC to +60ﾣC, RH95% Max.
14. Video cable length: 6m
15. Power supply cable length: 1.2m

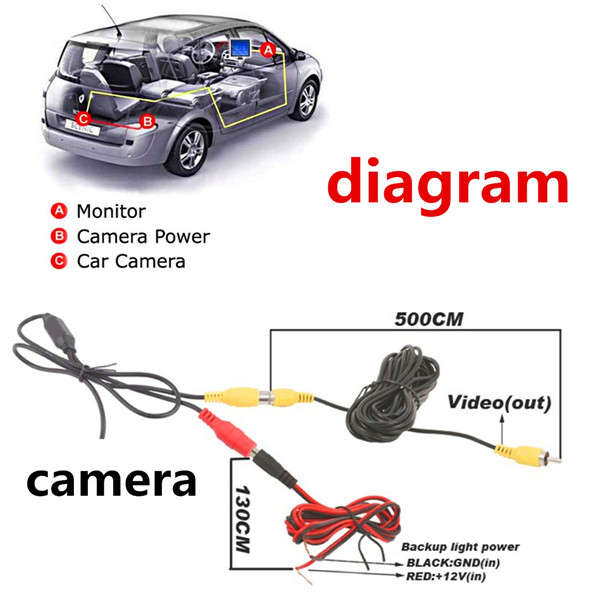

Installation: Take out your stock license plate light at the back of your car.
b. Fix the camera to where the stock license plate light was.
c. Connect the built-in license plate light of the camera to where the stock license
plate light was connected to get the power
d. Connect the power of the camera to your Reverse lights - red wire to positive and black wire to negative.
e. Connect the video cable of the camera to the extension cord.
f. Connect the extension cord to your car monitor.
g. You will see the images when your car is in reverse shift.
Note: If it is possible we suggest that you should go to the 4S store for installing the kits.
Package Included: 1 X Car Rear View Camera
1 X Video Cable
1 X Power Cable
1 X User Manual
