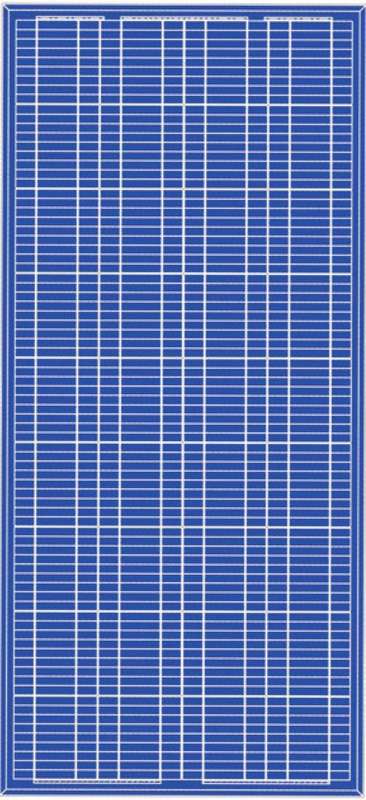

135w SOLAR PANEL POLYCRYSTALLINE ECO-PLUS SOLAIRE (12v -135Wp)

 POLYCRYSTALLINE ECO-PLUS SOLAIRE 135Wp SOLAR PANEL

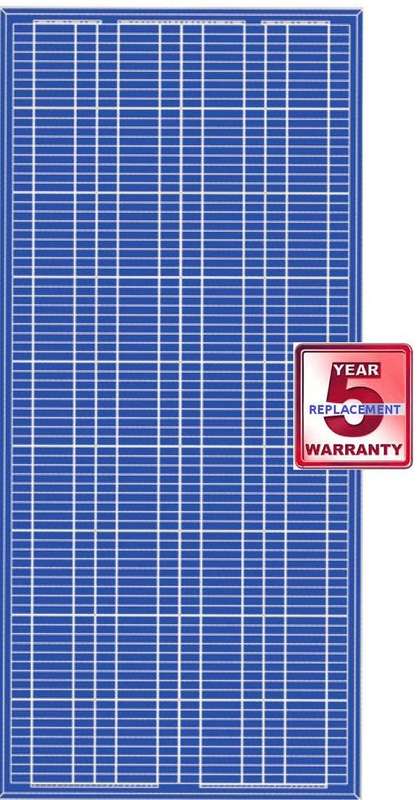

                                                            This product carries a 5 year carry-in replacement warranty.

                                                         Any faulty module gets replaced; send unit back to supplier and replacement will be sent.

                                                                           Power Life expectancy of panel:20 years 80% yield.

Specifications:

No.of cells and connections 36(4 X 9)

Cell: Polycrystalline solar cell 156mm X 156mm

MODULE SIZE (mm): 1480 x 680 x 35

Weight: 11.6 kg

 Product characteristics:

Open circuit voltage (Voc) 22.2V

Optimum operating voltage (Vmp) 18.5V

Short circuit current (Isc) 8.43A

Optimum operating current (Imp) 7.30A

Maximum power at STC (Pm) 135Wp (Watts peak)

STC: Irrandiance 1000W/m2, Module temperature 25°C, AM=1.5

Limits:

Operating temperature: -40°C to + 85°C

Maximum system voltage: 1000V DC

Temperature and Coefficients:

Nominal cell operation temperature (NOCT) 48°C +/- 2°C

Current temperature %K 0.033

Voltage temperature coefficient MV/K -0.36

Power temperature coefficient %K -0.47
