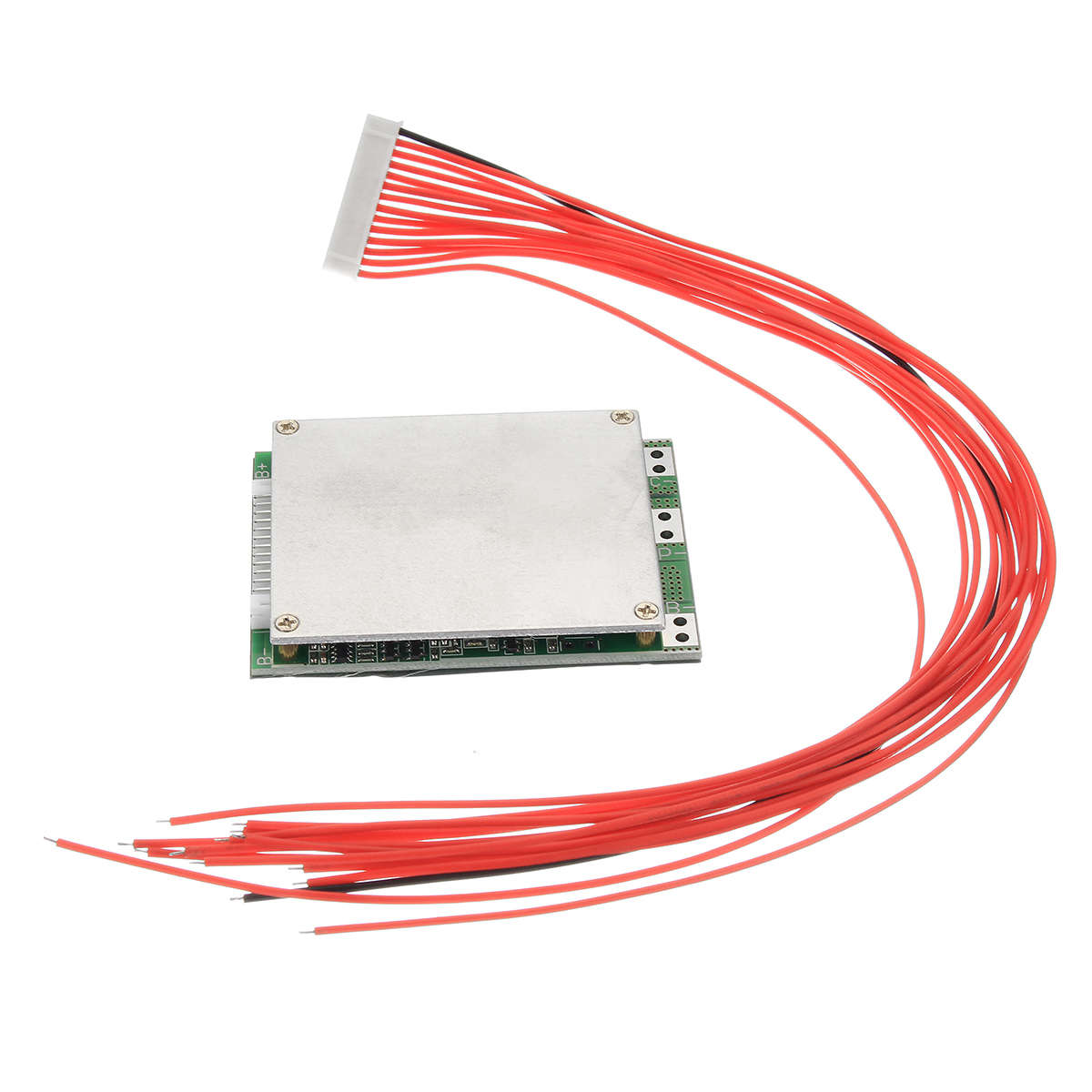

Name: 13S 35A 48V Li-ion Battery Protection Board BMS PCB with Balance For E-bike Sco
SKU: 1286039
Price: 373.79 ZAR
Availability: SoldOut

13S 35A 48V Li-ion Battery Protection Board BMS PCB with Balance For E-bike Sco

30 were available / new

Indicative market price: R699.00

R373.79

47% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Get it now, pay later

Condition

New

Location

International

Product code

1286039

Bob Shop ID

466578131

13S 35A 48V Li-ion Battery Protection Board BMS PCB with Balance For E-bike Sco

Package weight: 0.05 kg

Description:

With a balanced

Overcharge protection

Over discharge protection

Over current protection

Short circuit protection

Temperature protection

Specification:
Name: 13S 35A 48V Protection Board with Balance

Size: 69*51*8mm

Cable Length: 300mm

Charging current: ≤8A

Electrical parameters: As shown in following table

Electrical Parameters: (13 string split-mouth)

Detail	Specifications	Tipical	Unit
Discharge	Continuous Discharging Current	35(Max)	A
Discharge	Instantaneous Discharge Current	100	A
Charge	Charging Voltage	54.6	V
Charge	Charging Current	8(Max)	A
Overcharge Protect	Over-charge Detect	4.28±0.05	V
	Protect Delay	100	mS
	Over-charge release	4.08±0.05	V
Balance	Detect Voltage	4.2±0.025	V
	Release Voltage	4.2±0.05	V
	Balance Current	60±5	mA
Over-discharge Protect	Over-discharge Detect	2.55±0.08	V
	Over-discharge Detect delay	50	mS
	Release Voltage	3.0±0.1	V
Over-current Protect	Detect Voltage	150	mV
	Detect Delay	15	mS
	Current Detect	120±0.5	A
	Release Condition	Cut Load
Short-circuit Protect	Protect Condition	External load short circuit
	Detect Delay	200	uS
	Release Condition	Cut Load
Temperature Protect	Temperature Protect	/	￢ﾄﾃ
Resistance	Inner	≤15	mΩ
Self-Consumption	Working Current	≤50	uA
