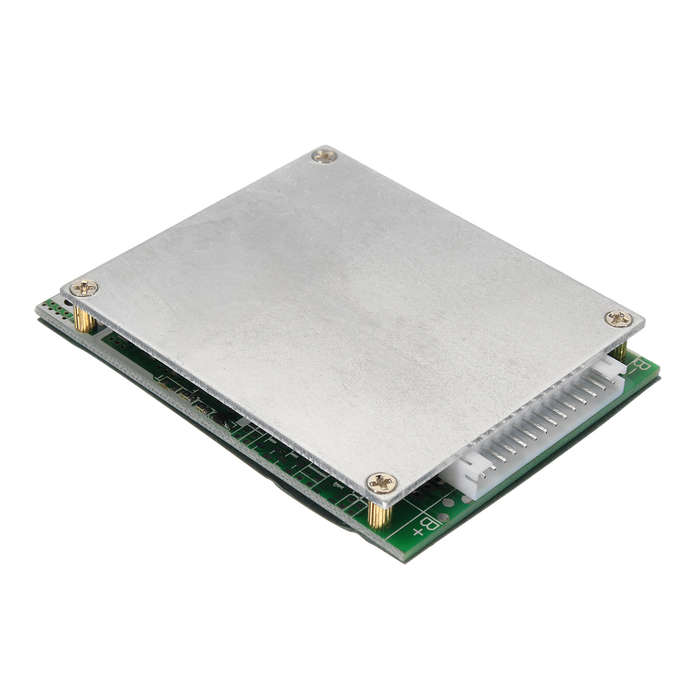

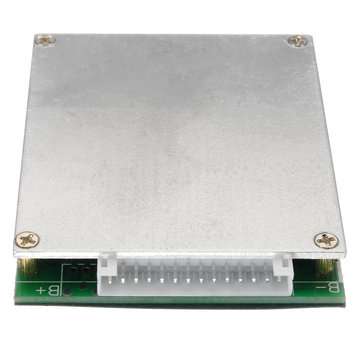

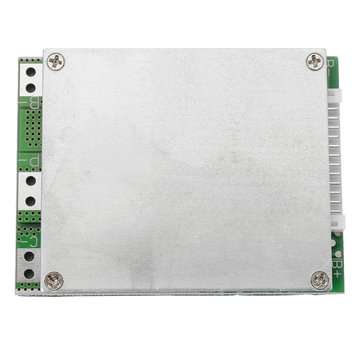

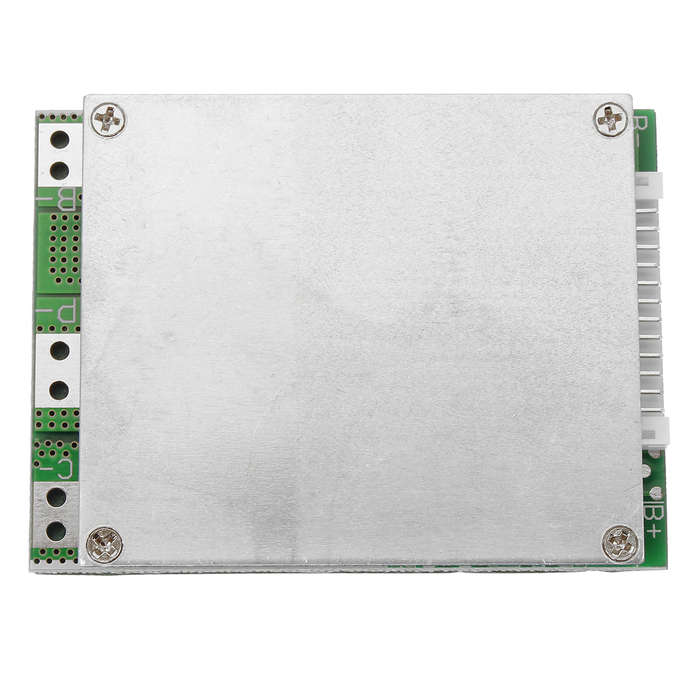

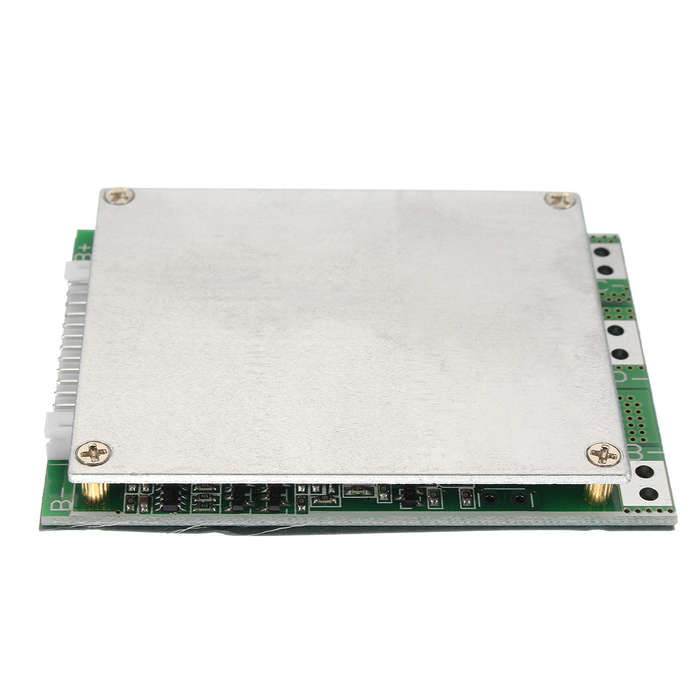

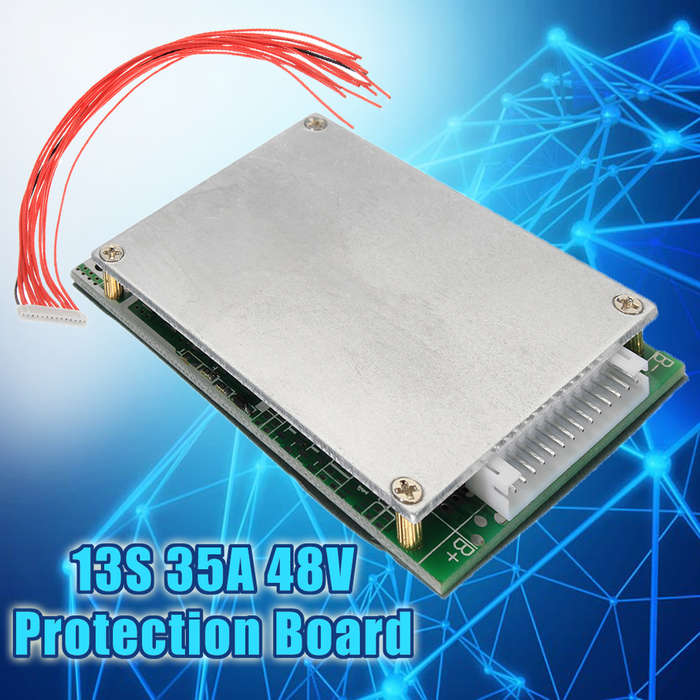

13S 35A 48V Li-ion Battery Protection Board BMS PCB with Balance For E-bike Scooter

Description: With a balanced Overcharge protection Over discharge protection Over current protection Short circuit protection Temperature protection
Specification:

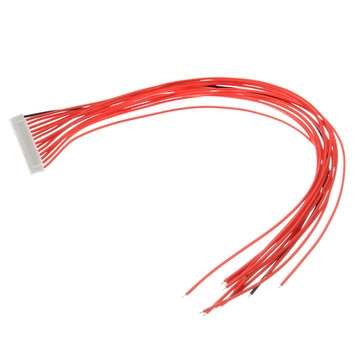

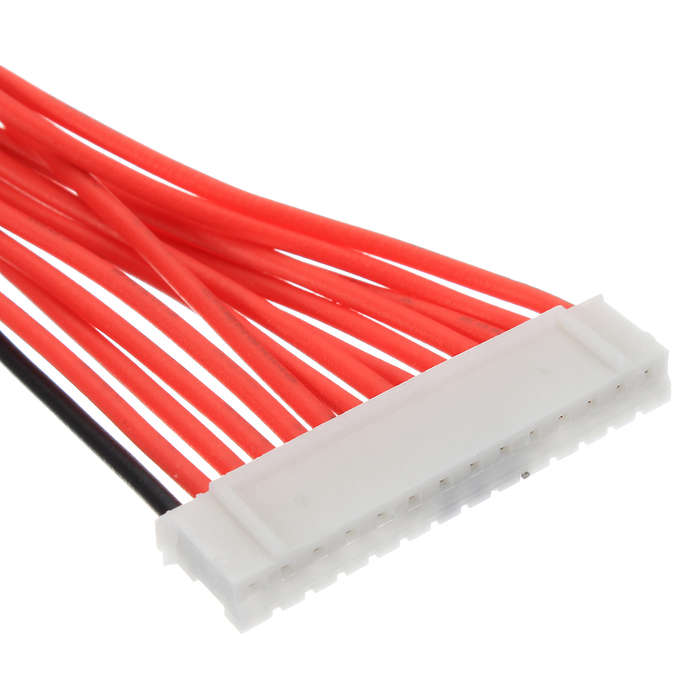

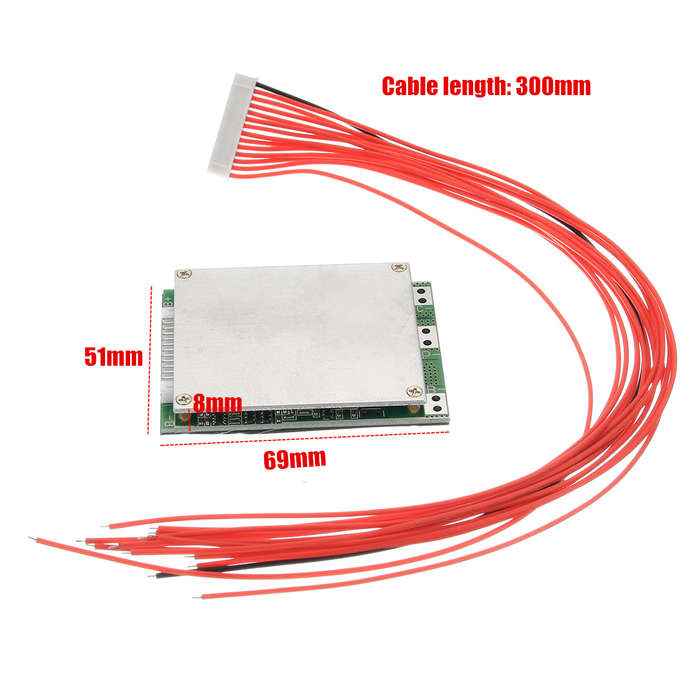

Name: 13S 35A 48V Protection Board with Balance Size: 69*51*8mm Cable Length: 300mm Charging current: a8A Electrical parameters: As shown in following table

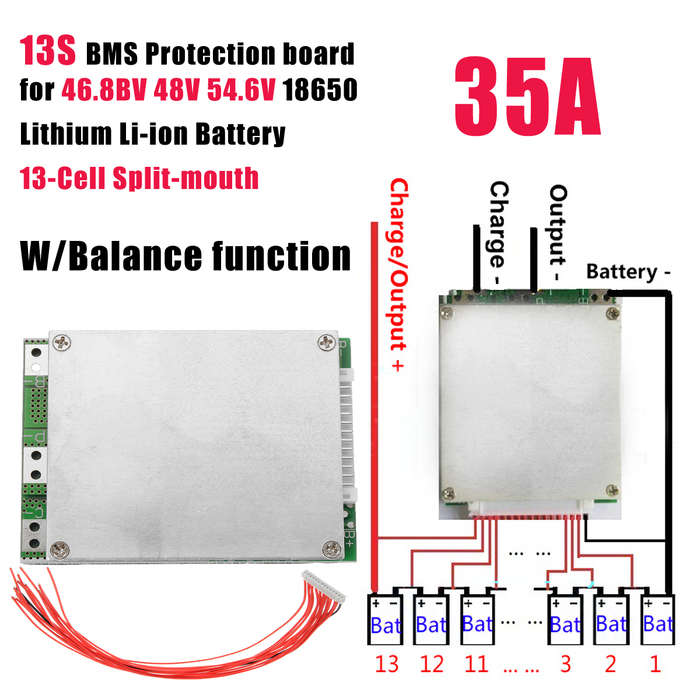

Electrical Parameters: (13 string split-mouth)

Detail	Specifications	Tipical	Unit
Discharge	Continuous Discharging Current	35(Max)	A
	Instantaneous Discharge Current	100	A
Charge	Charging Voltage	54.6	V
	Charging Current	8(Max)	A
Overcharge Protect	Over-charge Detect	4.28±0.05	V
	Protect Delay	100	mS
	Over-charge release	4.08±0.05	V
Balance	Detect Voltage	4.2±0.025	V
	Release Voltage	4.2±0.05	V
	Balance Current	60±5	mA
Over-discharge Protect	Over-discharge Detect	2.55±0.08	V
	Over-discharge Detect delay	50	mS
	Release Voltage	3.0±0.1	V
Over-current Protect	Detect Voltage	150	mV
	Detect Delay	15	mS
	Current Detect	120±0.5	A
	Release Condition	Cut Load
Short-circuit Protect	Protect Condition	External load short circuit
	Detect Delay	200	uS
	Release Condition	Cut Load
Temperature Protect	Temperature Protect	/	a
Resistance	Inner	a15	m
Self-Consumption	Working Current	a50	uA
	Sleep Current (when Over-discharge)	a10	uA
Working Temperature	Range	-30/+80	a

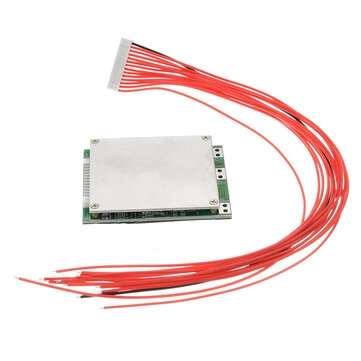

Package Included: 1 XBattery Protection Board



















, , , , , , , , ,
