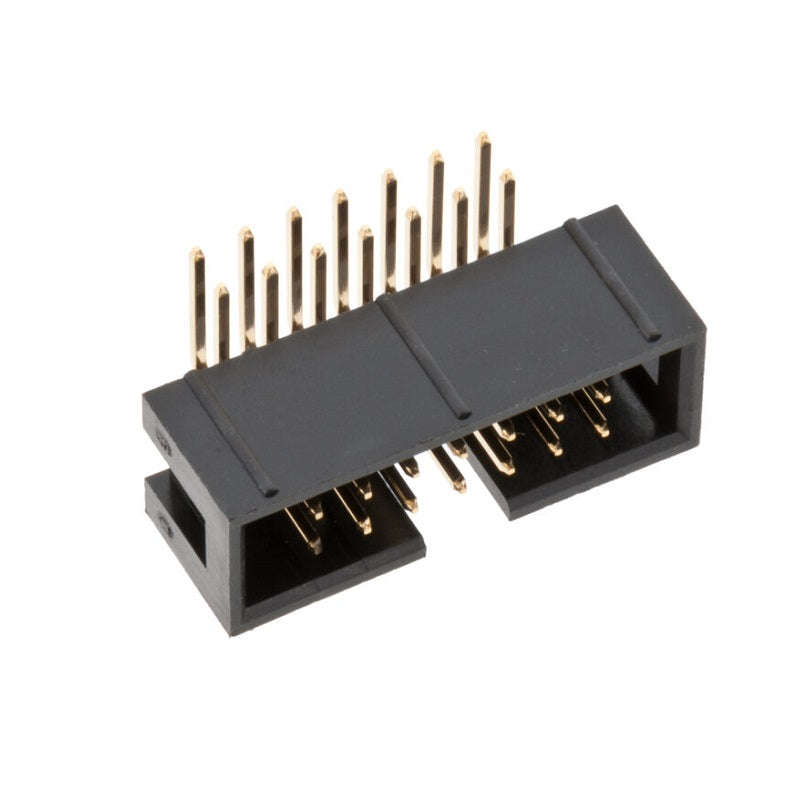

14-pin IDC Male Connector(Angled)

Are you looking for a reliable connector that's suitable for all your hobbyist needs? Look no further than our angled 14-pin IDC Male Connector. It's perfect for any project, big or small, as it has the right features to give you a secure connection.

Angled 14-pin IDC Male Connector is an IDC socket connector used to make physical connections in a variety of applications. They are common in industrial applications, where the accuracy of connections, the ability to make them reliable, and where there may be many wires that need to be connected at once are all vital considerations. This IDC product technology allows cost-effective connections between circuit boards based on a permanent connection (using transition connector) or removable connection (using IDC flat cable connectors).

Because these devices make such reliable connections, they are also ideally suited for environments where dust and other hazards may pose significant threats to electronic equipment. In situations where such equipment needs to be repaired, these connectors can drastically reduce the amount of time required to make those repairs, often reducing repairs to a simple swapping out of cables.

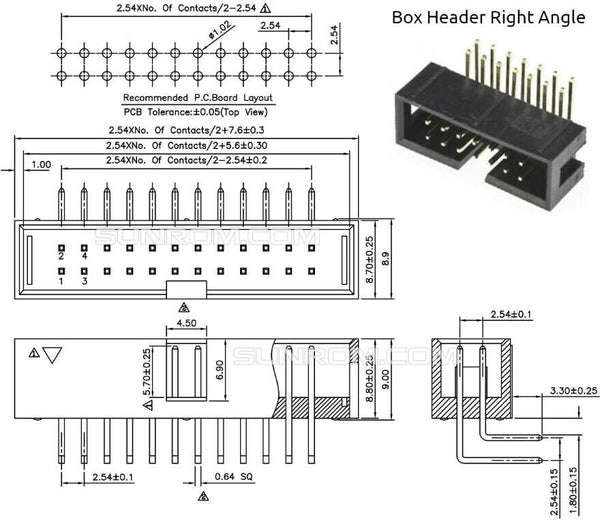

Dimensions

14-pin IDC Male Connector Specification

• Gender: Male
• Connector Type: IDC
• Current Rating: 2A
• Mounting Type: Cable Mount
• Number Of Contacts: 14
• Number Of Rows: 2
• Pitch: 2.54mm
• Contact Material: Phosphor Bronze
• Minimum Operating Temperature: -65°C
• Maximum Operating Temperature: +105°C
• Housing Material: Thermoplastic
• Contact Plating: Nickel-plated terminals
• Color: Black

Documentation

• DataSheet
