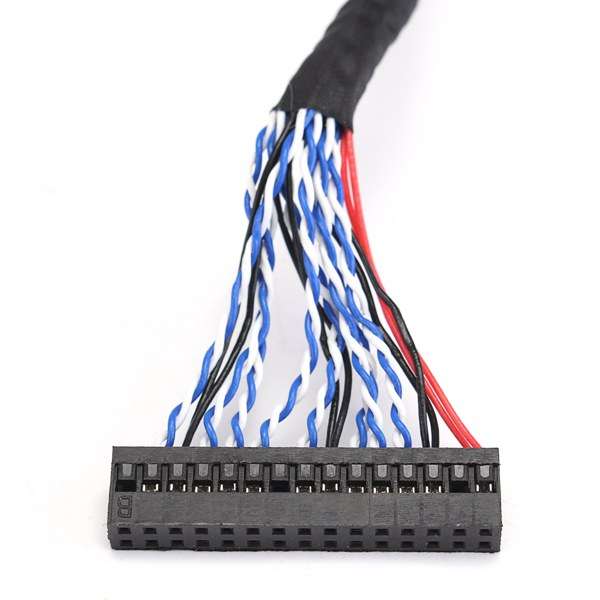

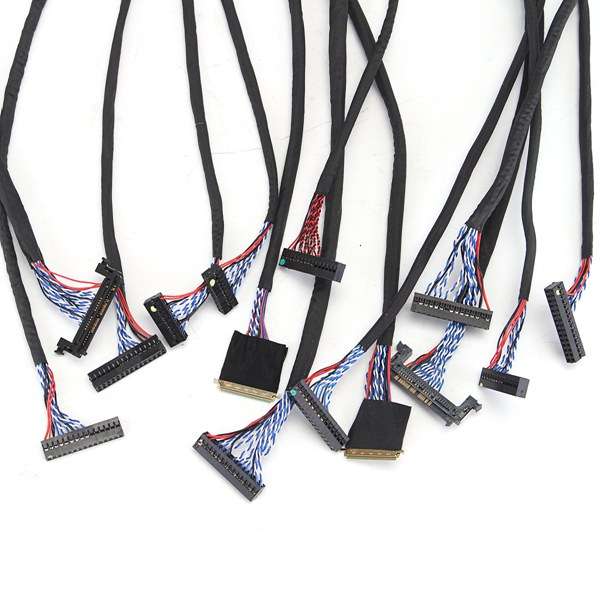

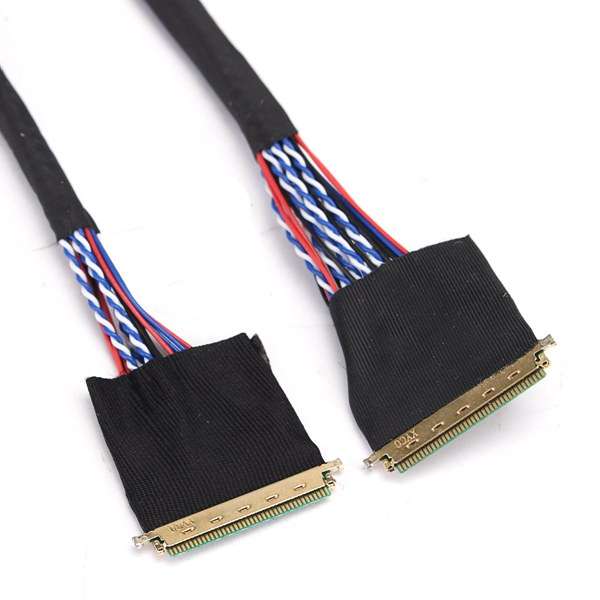

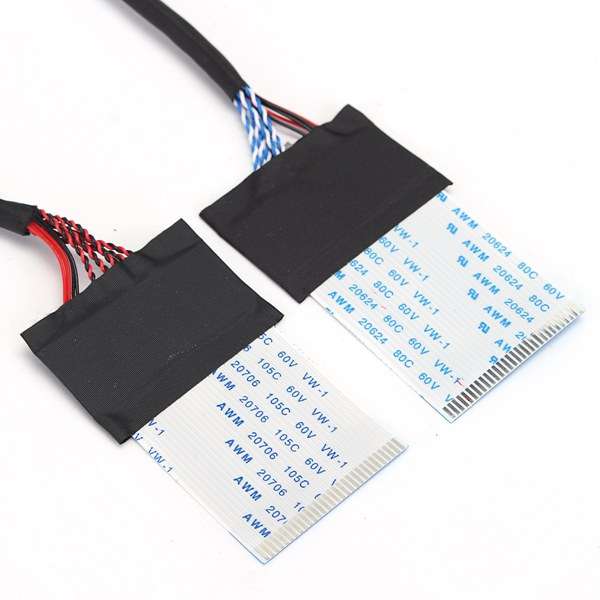

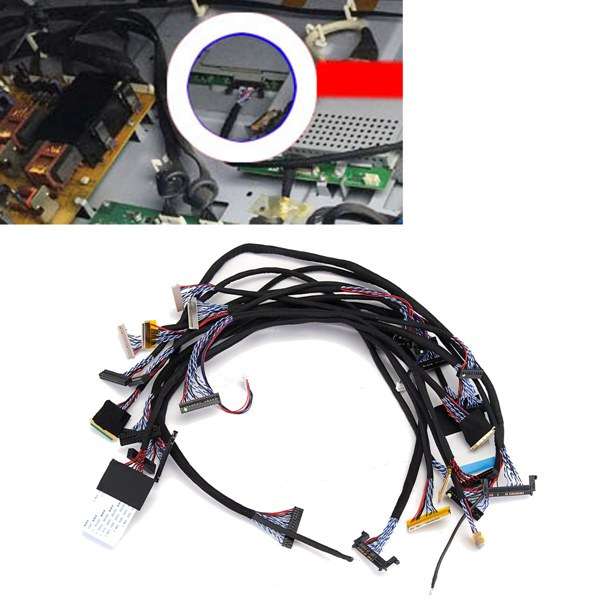

14Pcs Universal FPC/LVDS Display Cable Support For 10-65 Inch Screen LCD Controller Board

20 available / new

R534.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641101882

Specifications:

Fit For: 10-65 inch screen
Color: as pictures
Socket Length: 20mm, 30mm
Name: Screen cable
Model: 602368

Features:

1. Drive board common, support 10-65 inch screen monitor repair, commonly used LCD LVDS screen line.
2. The general board LVDS interface 30 pin is basically defined as follows:
1 2 3 power supply
4 5 6 ground wire
7 8 9 10 11 12 Three sets of data lines (00- 00+ 01- 01+ 02- 02+)
13 14 ground line
15 16 clock lines (0C- 0C +)
17 18 (03 - 03+)
Here is a single 8 commonly used five groups.
19 20 21 22 23 24 Three sets of data lines (0E- 0E + E1-E + E2- E2 +)
25 26 ground wire
27 28 clock line (EC-EC +)
29 30 data lines (E3- E3 +)

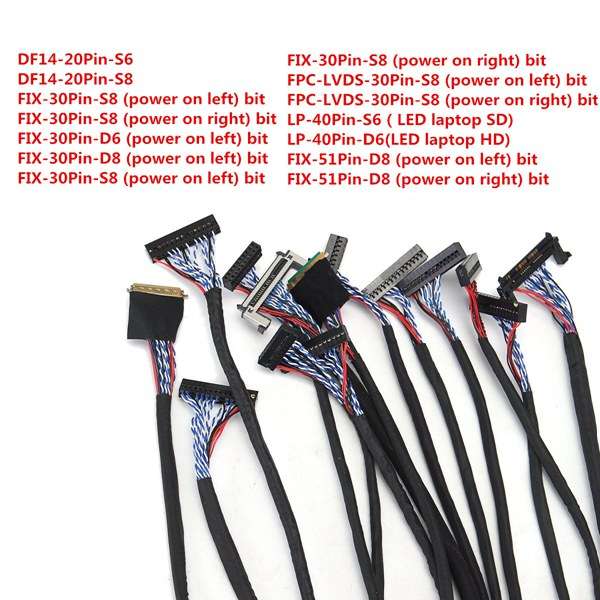

Model:

1 x DF14-20Pin-S6
1 x DF14-20Pin-S8
1 x FIX-30Pin-S8 (power on left) bit
1 x FIX-30Pin-S8 (power on right) bit
1 x FIX-30Pin-D6 (power on left) bit
1 x FIX-30Pin-D8 (power on left) bit
1 x FIX-30Pin-S8 (power on left) bit (for 17''-42'' screen)
1 x FIX-30Pin-S8 (power on right) bit (for 17''-42'' screen)
1 x FPC-LVDS-30Pin-S8 (power on left) bit
1 x FPC-LVDS-30Pin-S8 (power on right) bit
1 x LP-40Pin-S6 ( LED laptop SD)
1 x LP-40Pin-D6 (LED laptop HD)
1 x FIX-51Pin-D8 (power on left) bit (Most universal LVDS cable for 32''-65'' screen)
1 x FIX-51Pin-D8 (power on right) bit (Most universal LVDS cable for 32''-65'' screen)

Note: Due to the manual measurement, there might be some error.

Package included:

14 x screen cable
