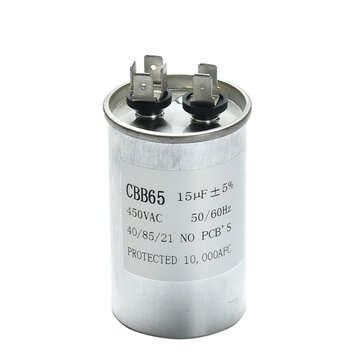

15-50uF Motor Capacitor CBB65 450VAC Air Conditioner Compressor Start Capacitor (TYPE: A)

12 were available / new

R341.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3617

93.01 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

606942868

SELECTED OPTION:
TYPE: A

Introduction:

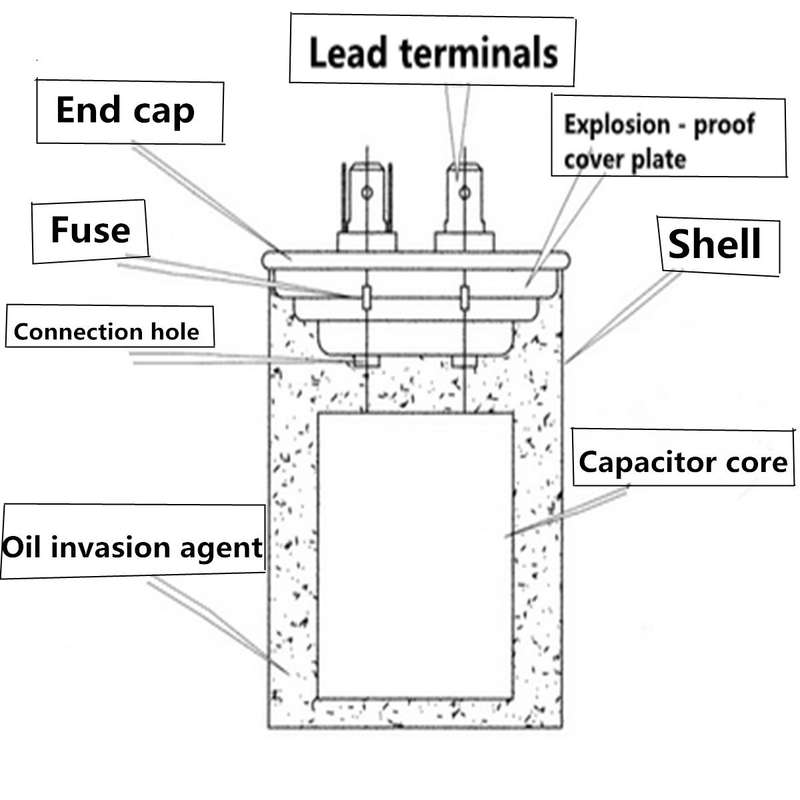

The edge of the capacitor thickening of the metal zinc aluminum film as electrodes and media. The film was taken up in an aluminum casing after being wound up by a winding machine. And then in the shell into high purity castor oil to keep the vacuum state, and can make the product high temperature.

This product's performance is better, longer life. This product also uses the second generation of mechanical explosion-proof design as an explosion-proof means, so the performance of the product has a great guarantee.

Specification:

Ambient temperature: -25a?? to + 70a??

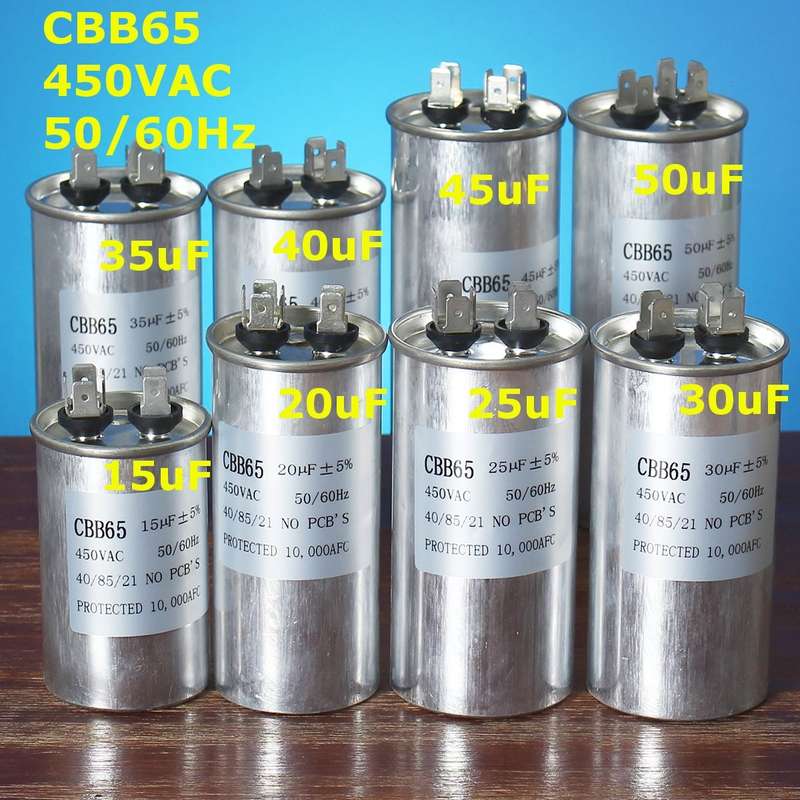

Capacitance range: 15uF/20uF/25uF/30uF/35uF/40uF/45uF/50uF +/- 5%
Rated voltage: 450V AC 50/60HZ
Capacity: precision: J:&pm;5% K:&pm;10%
Insulation resistance: T-Ta???3000M??Uf(20a??,100VDC)
Tg loss tangent value: tg??ﾩWa???0.002(100HZ,20a??)
Withstand voltage: 2.0Un 3S

Dimensions:?(Diameter x Height)

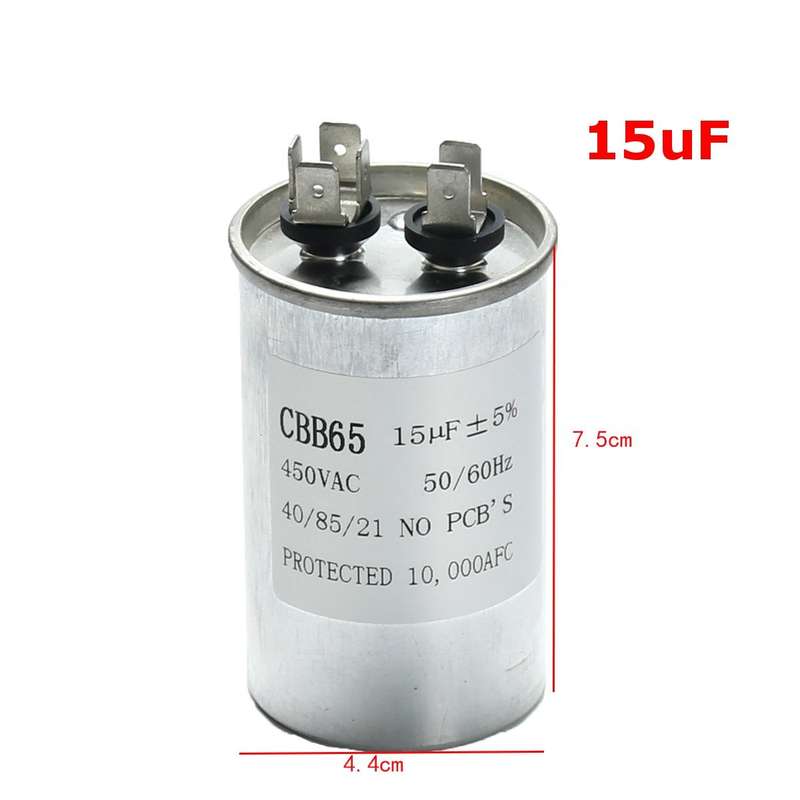

TypeA: 15uF- 4.4 x 7.5cm

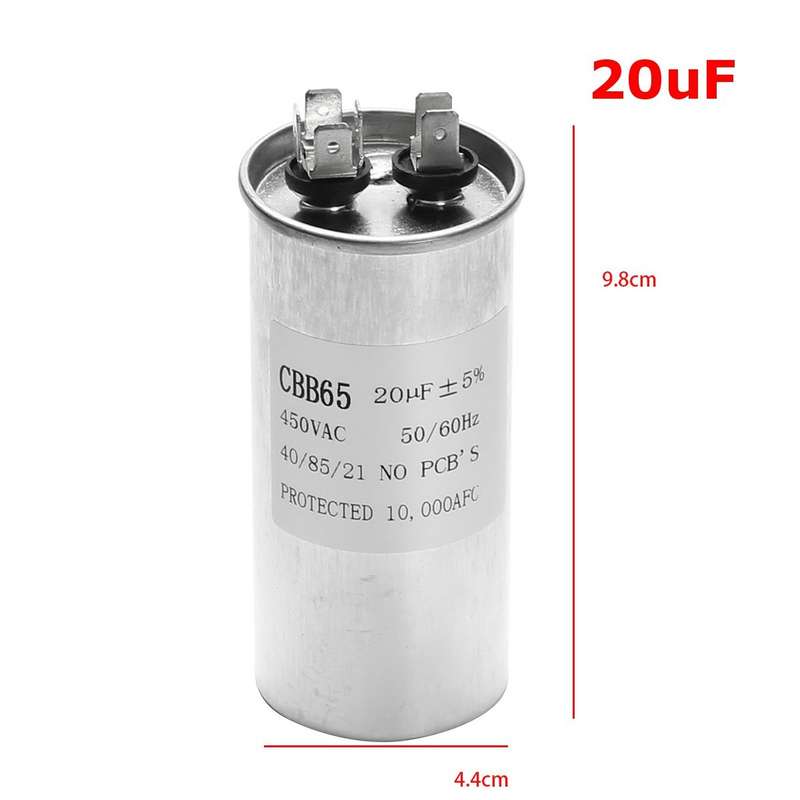

TypeB: 20uF- 4.4 x 9.8cm

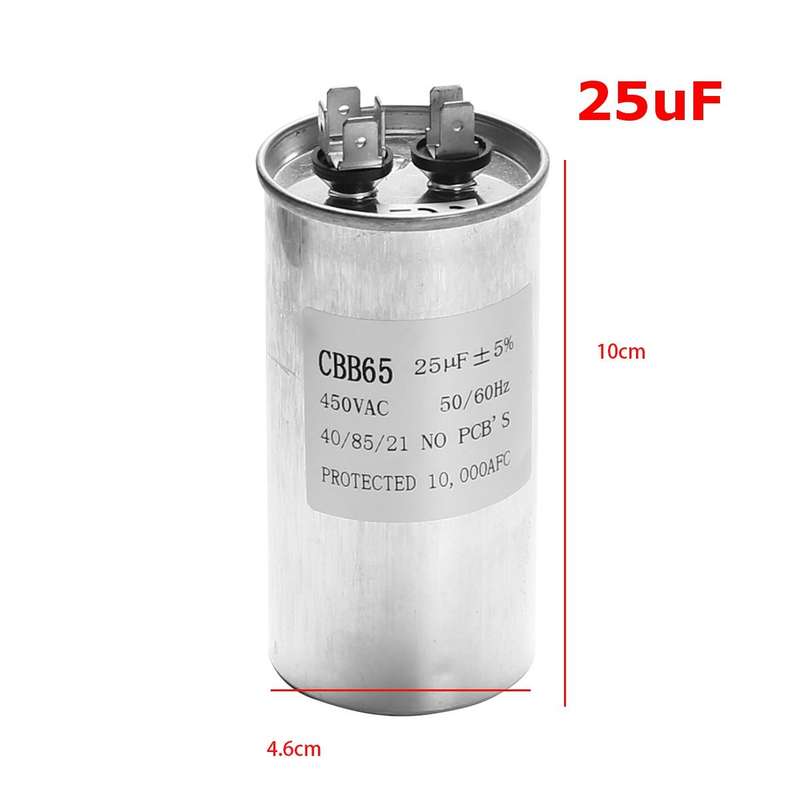

TypeC: 25uF- 4.6 x 10cm
TypeD: 30uF- 4.8 x 9.9cm

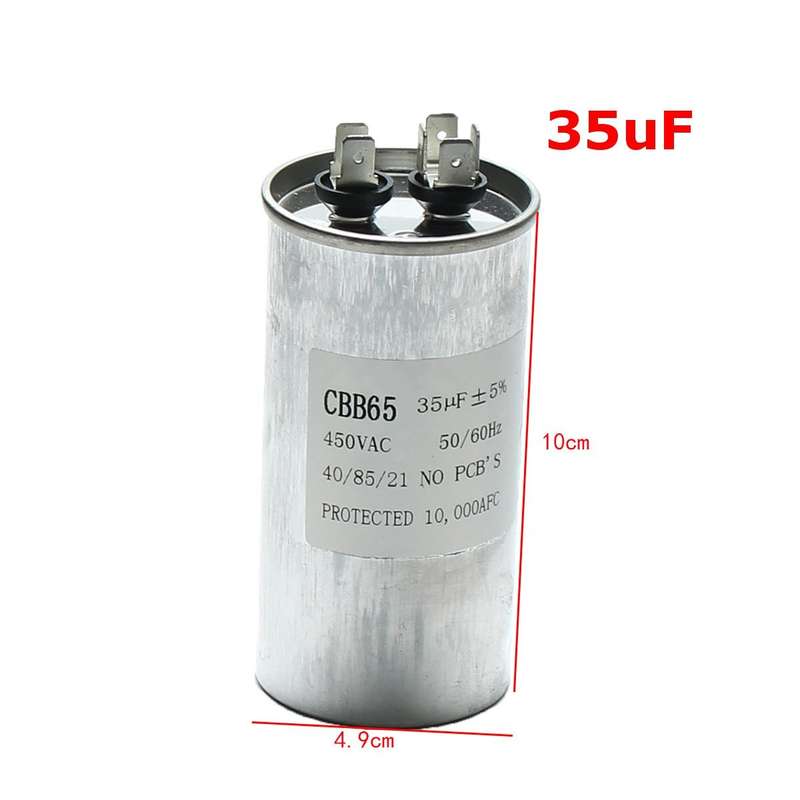

TypeE: 35uF- 4.9 x 10cm
TypeF: 40uF- 4.9 x 12.5cm

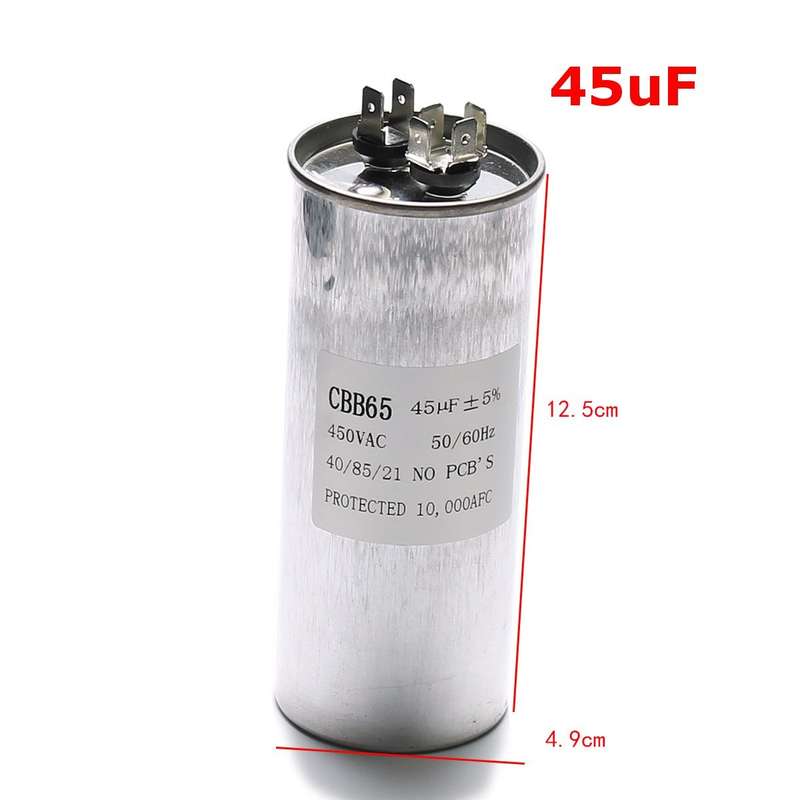

TypeG: 45uF- 4.9 x 12.5cm

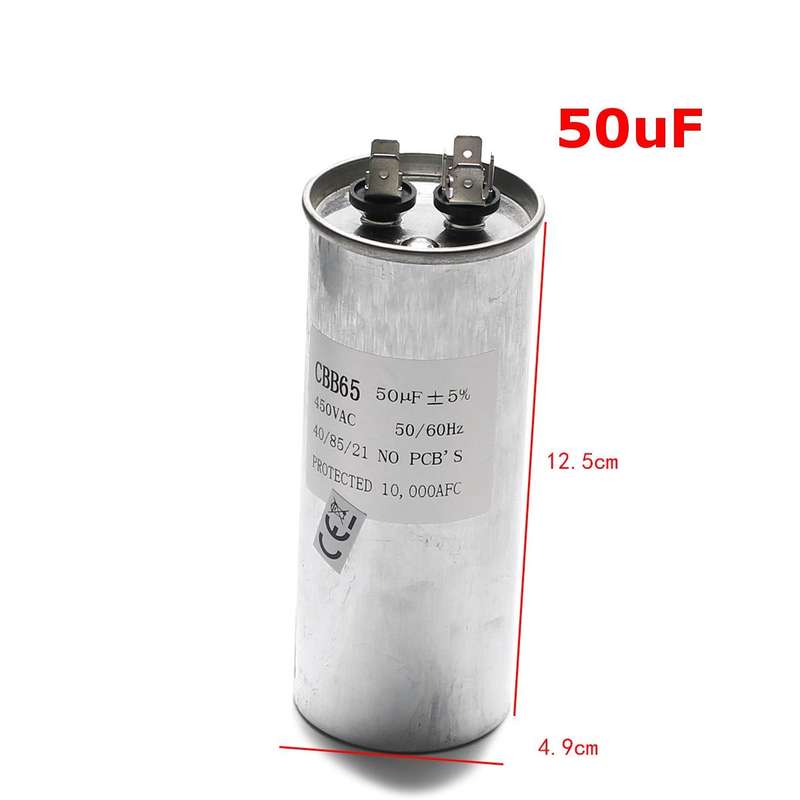

TypeH: 50uF- 4.9 x 12.5cm

Applications:

Air conditioning
Refrigerator
Washing machine
Electric fan
Oven

Features:

No sense of detention type winding metallized polypropylene film structure
The plastic round shell, plastic seal or resin encapsulation seal
Small volume, light weight, low loss, excellent self-healing property
Applicable to the frequency of 50 hz, 60 hz single-phase motor start and running
Suitable for micro motor, water pump, fan, single-phase motor, etc

Notice:

Please confirm the size of the capacitor before you bid.

Package Included:

1 x Capacitor
