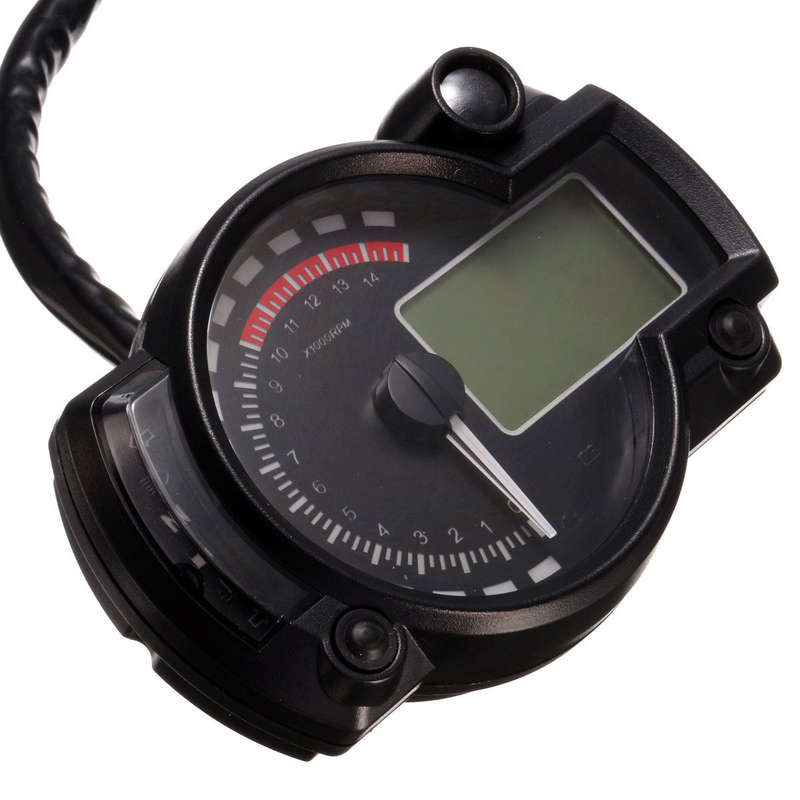

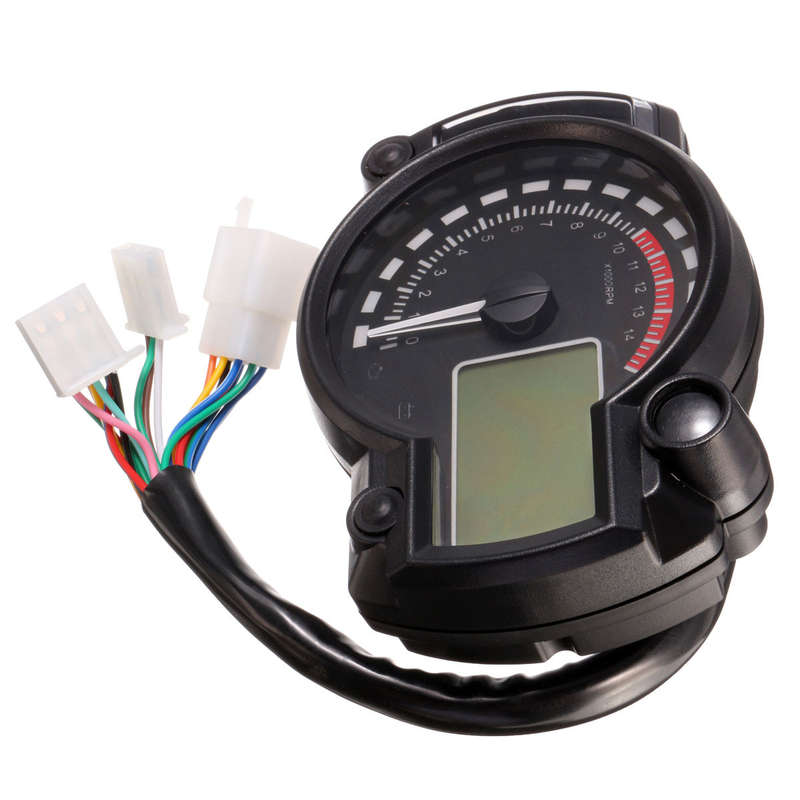

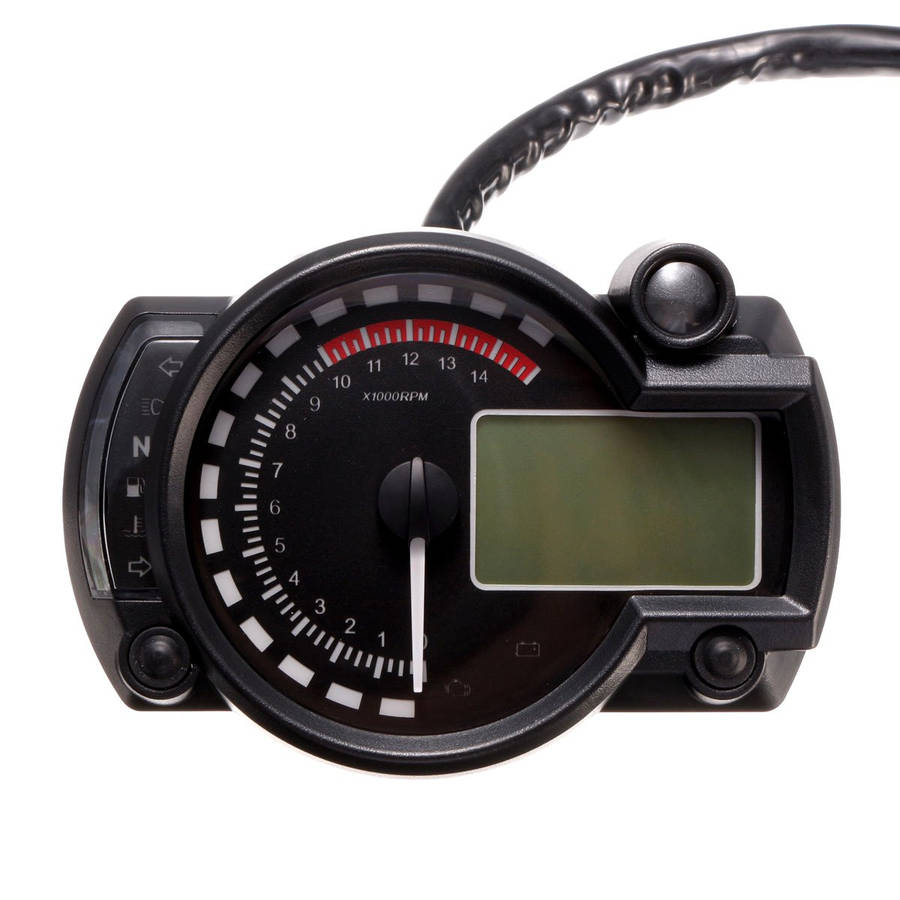

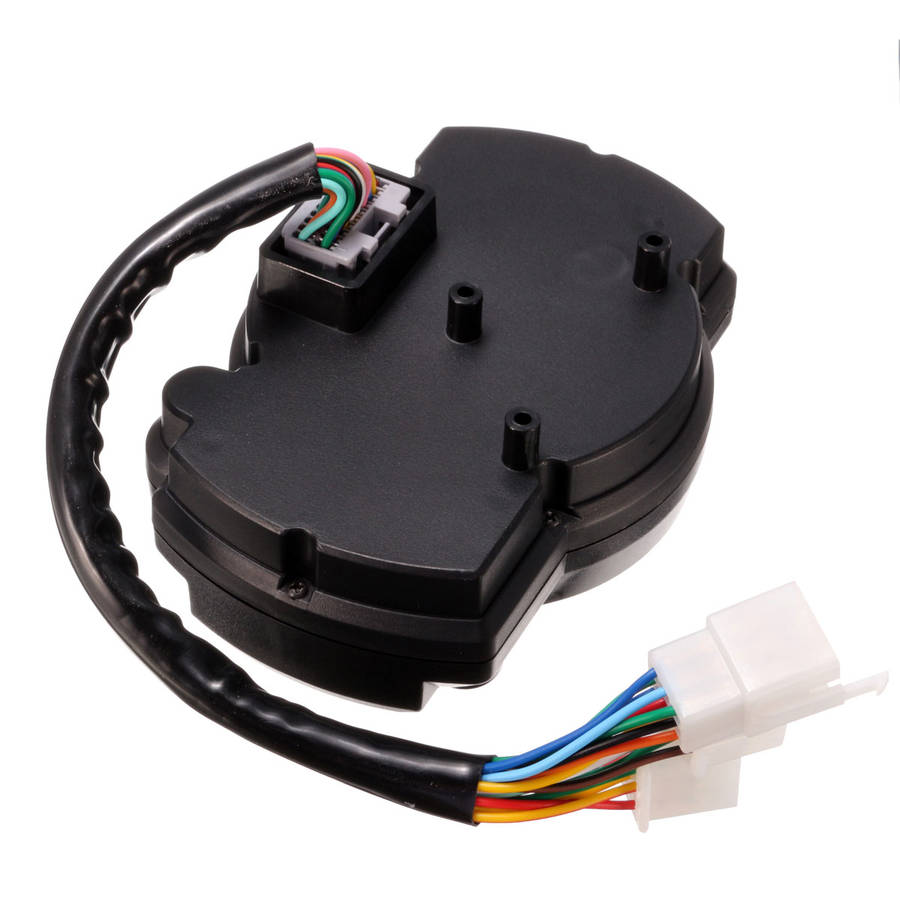

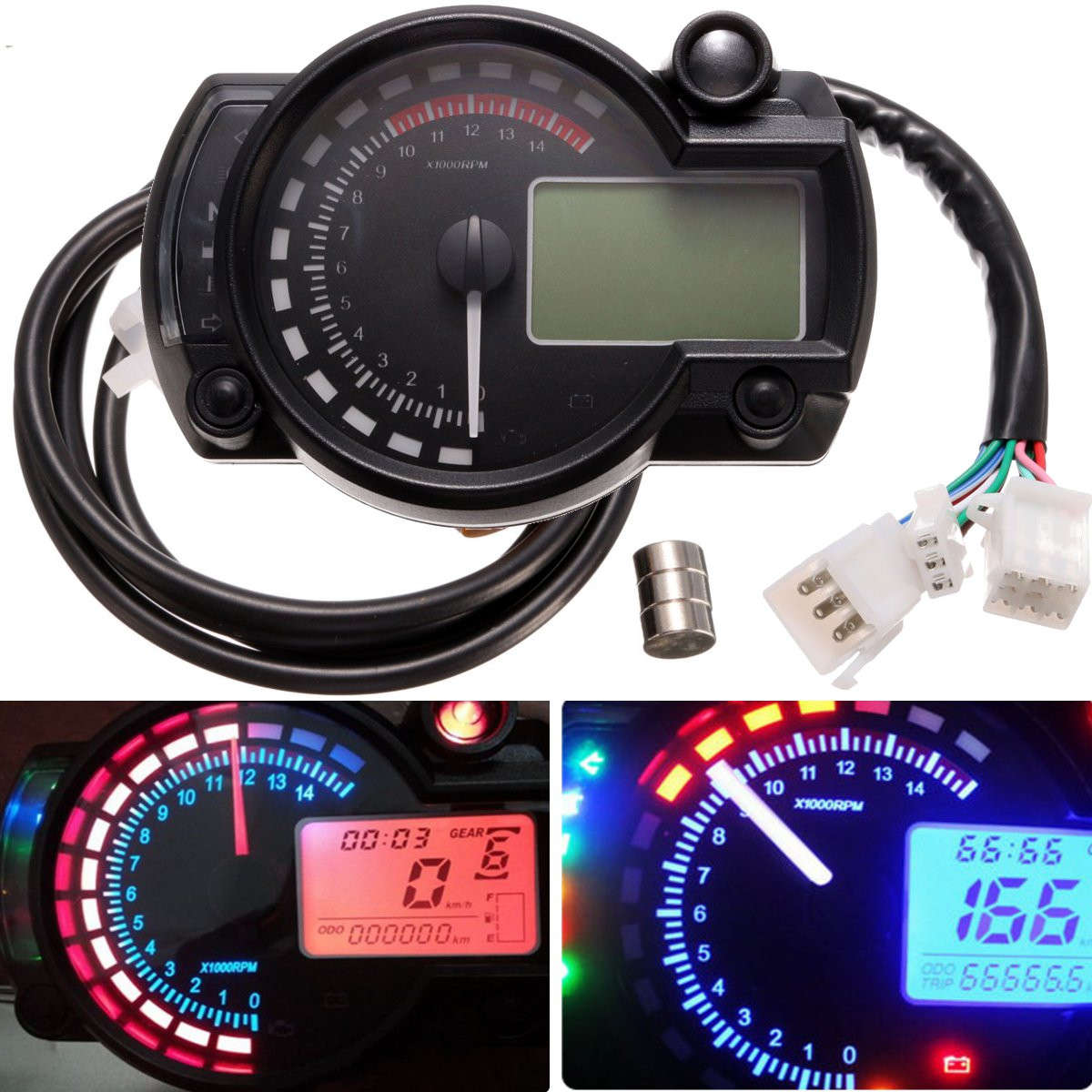

15000RPM Dual Blackcolor Adjustable Motorcycle LCD Digital Speedometer Odometer
Description:
Blacklight color is adjustable,two color: Orange and Blue
Easy install, we provide install manual. You can also click into this link to read the English Manual
http://img.Racer Gadgets.com/file/products/20150226035204English Manual of SKU192807.doc

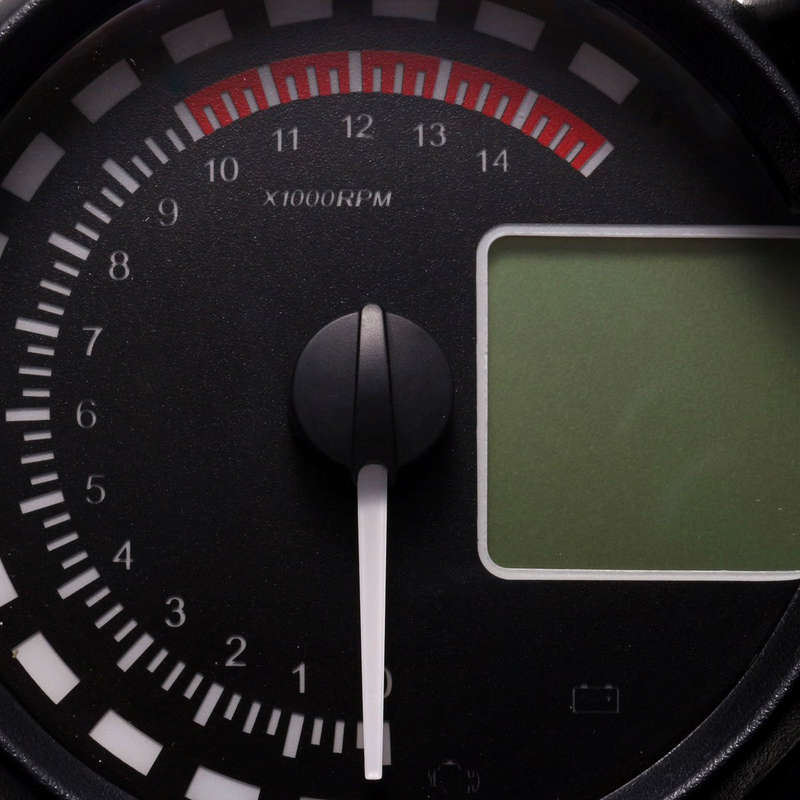

Stepper motor+pointer: Tacho
LCD display: Speed, Odometer, Trip, Meter ,Gear position, Fuel level and Real-time clock.
Button controlled shift between Odometer and Trip meter, Km/h and Mp/h, and Trip meter resetting is also available.
It can be apply to different vehicles with different diameter;
It can be apply to different displacement vehicles;

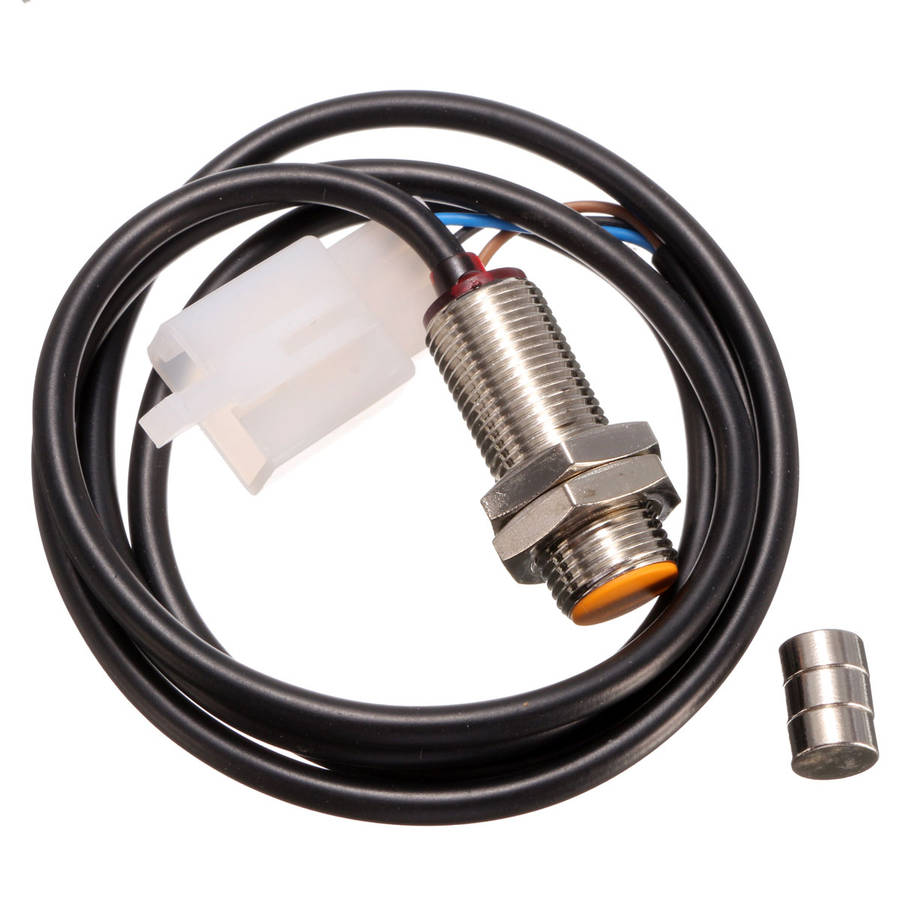

This speedometer send together with a speed sensor length about 950mm (Speedometer is hall effect, universal one)
Specification:Cylinder:1-8 CylinderSpeed: Max Display 199km/h
ODO Distance: Max Display 99999.9km
Trip Meter: 999.9km (can be reset)
24-hour real-time clock
(can be adjusted by the functioning knob)
Rev (Max 15000r/min)
Alarming: Over10000r/min
Size:130x95mm
Release button for a short press, the button is not more than 3 seconds for long press:
1, the total mileage, total mileage (ODO) (TRIP) and voltage switch display:
In the normal display state, the short press the left button to display the ODO, TRIP, and voltage in turn.
2, total mileage (TRIP) cleared:
In the normal display state, and the total mileage of the display TRIP, long press the right button, you can clear the TRIP.
3, time adjusting state and metric switching state:
Long press the left button and enter the time to adjust the state, this can be through short press the left button in order
to enter the time, the British public switching and normal display state
4, clock adjustment:
In time, adjust the state, press the button on the right, add a number of clock.
The regulation of state in time, press the right button to add a digital clock, minute hand
In the British public switching state, short press the right button, can realize the imperial switch
5, backlight color selection
In the normal display state, the short press the right button, you can switch back the backlight color (blue or orange color)Note:
The rpm could not work if your motorcycle is "Kawasaki" and "Regal Raptor" with Electronic injection engine.
The blue white wire of this item is the rpm wire, it should be connected with the positive rigger line of the igniter.
Take the digital English Manual for reference, if you do not understand to install the Motorcycle Digital Speedometer LCD Digital Odometer.
We suggest you to find the professional people to help you to install.
Package included:
1 x Speedometer

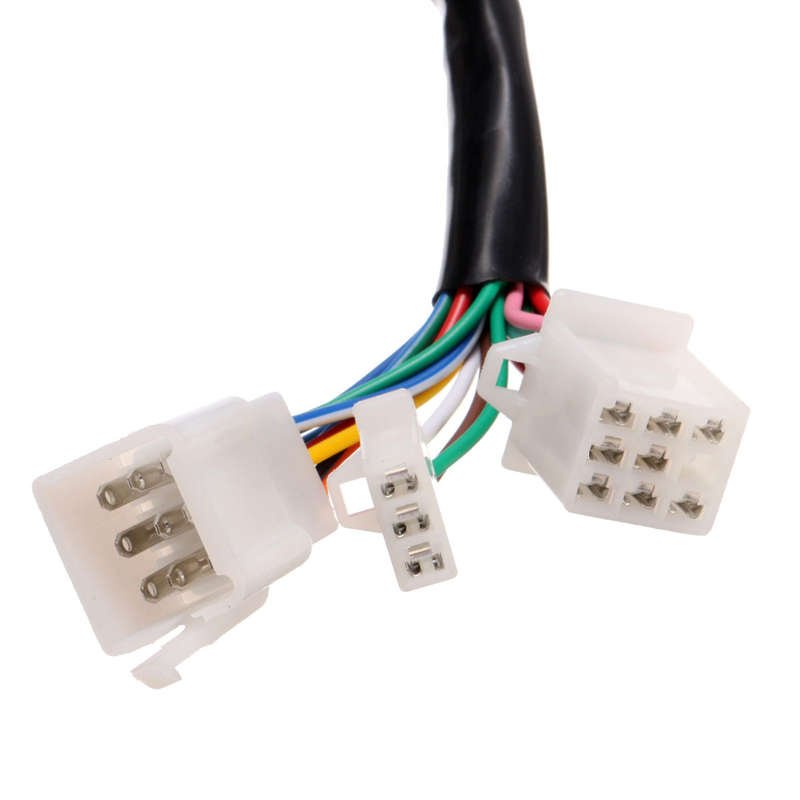

1 x A set of sensor wires
