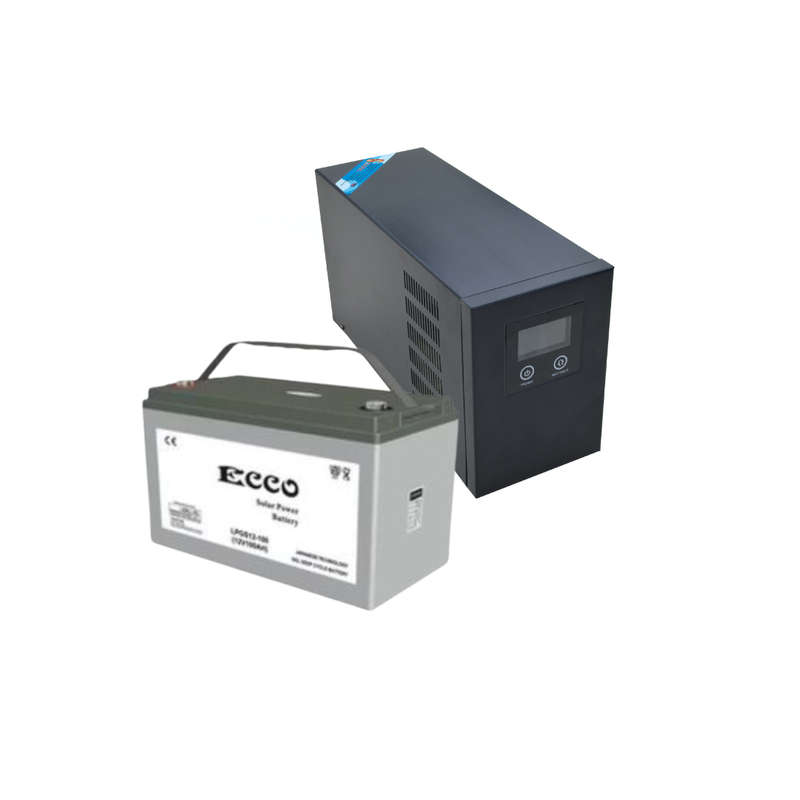

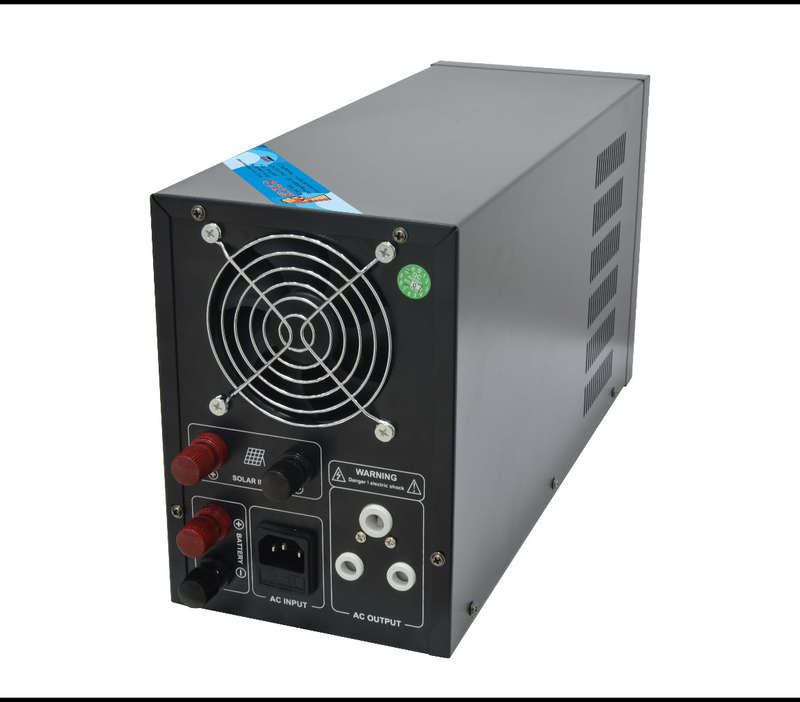

Ecco 1500W Pure Sine Wave Solar Inverter UPS 12V DC, 220V AC Output
Description:
Reliable Solar-Ready Power Solution
The Ecco 1500W Pure Sine Wave Solar Inverter UPS provides seamless backup power for homes, offices, and small backup power applications. Designed to convert 12V DC to stable 220V AC output, it supports both mains and solar charging, making it ideal for hybrid solar power systems, battery backup, and emergency power supply.
Key Features:
- Pure Sine Wave Output Delivers clean and stable power, safe for sensitive electronics.
- 1500W Continuous Power Suitable for TVs, computers, lights, and small household appliances.
- UPS Functionality Ensures uninterrupted power with a fast transfer time (~4ms).
- Battery Charging Options:
- Built-in 15A Battery Charger Charges 12V batteries from 220V mains power.
- Optional Solar Charging Compatible with a solar charge controller for renewable energy use.
- Multi-Mode Operation:
- Battery First Mode Prioritizes battery power.
- AC First Mode Uses mains power before switching to battery.
- Energy-Saving Mode Reduces power consumption when demand is low.
- High Efficiency (~85%) Reduces energy loss for better system performance.
- Advanced Cooling System Intelligent fan control adjusts speed based on temperature.
- Robust Protection Features:
- Overload warning and automatic shutdown.
- Short-circuit protection with alarm and auto shutdown.
- High/low battery voltage detection and protection.
- Reverse polarity protection.
Technical Specifications:
- Input Voltage: 12V DC
- Output Voltage: 220V AC
- Waveform: Pure Sine Wave
- Rated Power: 1500W
- Transfer Time: ~4ms
- Battery Charger: 15A Max (Built-in)
- Frequency: Low Frequency
- Efficiency: ~85%
- Total Harmonic Distortion: 3%
- Noise Level: 55dB
- Operating Temperature: -10°C to +40°C
- Humidity Tolerance: 0%-95% (non-condensing)
- Dimensions: 400mm (L) × 180mm (W) × 320mm (H)
- Weight: 18kg
Battery Performance Note:
The inverter's battery bars decrease incrementally, even with a 1% drop in battery level. For accurate voltage readings, use a multimeter.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 4-5 Hours.
Please note :
If it is a Gel/AGM VRLA deep cycle battery it is recommended that you do not discharge the battery to less than 50% of its capacity to ensure long capacity life.
What's Included:
- 1 × Ecco 1500W Pure Sine Wave Inverter UPS
- 1 × Battery Link Cables
- 1 × User Manual
Warranty & Installation Requirements:
- 1-Year Warranty against manufacturing defects.
- Professional installation required to comply with SANS regulations.
- A valid Certificate of Compliance (COC) must be issued after installation.
