1500W Pure Sine Wave Solar Ready Inverter 12V-Ecco

 1500W Pure Sine Wave Solar Ready Inverter 12V-Ecco

Technical specification
Model: NS-1500
Rated Power 1500W
Battery Voltage 12VDC
Size(L*W*Hmm) 360*143*210

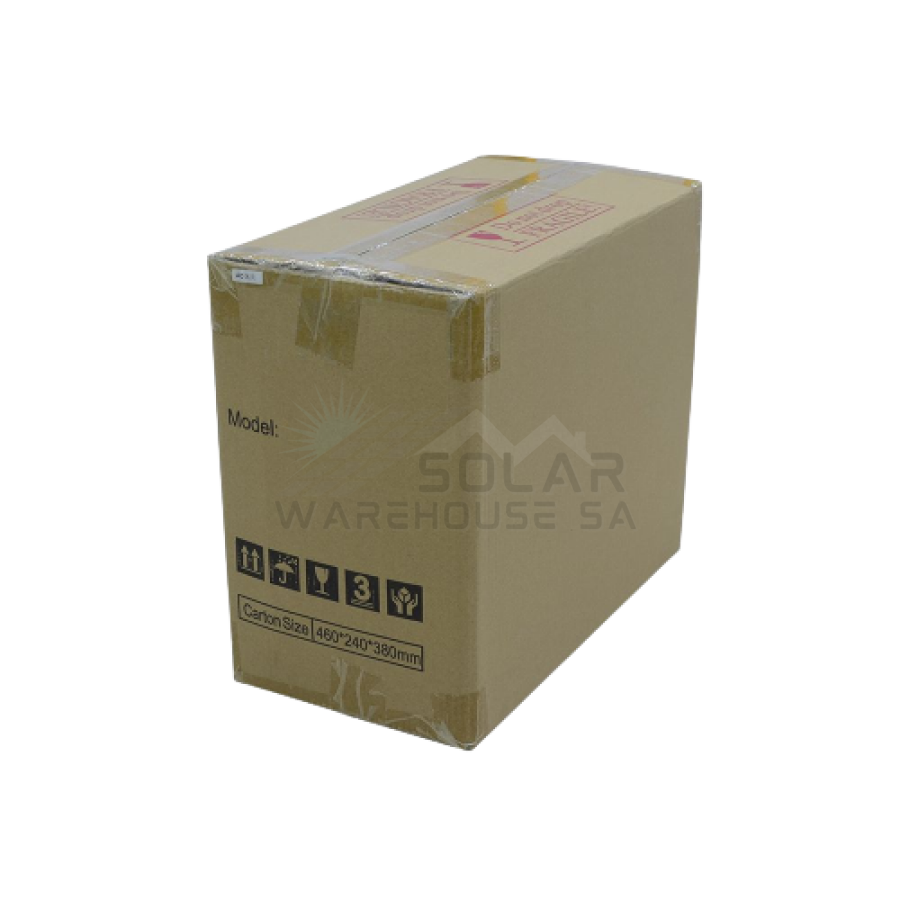

Package Size(L*W*Hmm) 410 x 200 x 270
N.W.(kg) 11kg
Charging Mode PWM
Charging Current 30A
PV Input Voltage Range 15V-44V
Max PV Input Voltage (At the lowest temperature) 50V
PV Array Maximum Power 420W

Battery Type Gel ,Lead Acid & Lithium

Protection
Battery low voltage alarm 11V(Single battery voltage)
Battery low voltage protection 10.5V(Single battery voltage)
Battery overvoltage alarm 15V(Single battery voltage)
Battery overvoltage protection 17V(Single battery voltage)
Battery overvoltage recovery voltage 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Temperature protection Automatic protection (battery mode), circuit breaker or insurance (AC mode) >90°C(Shut down output)

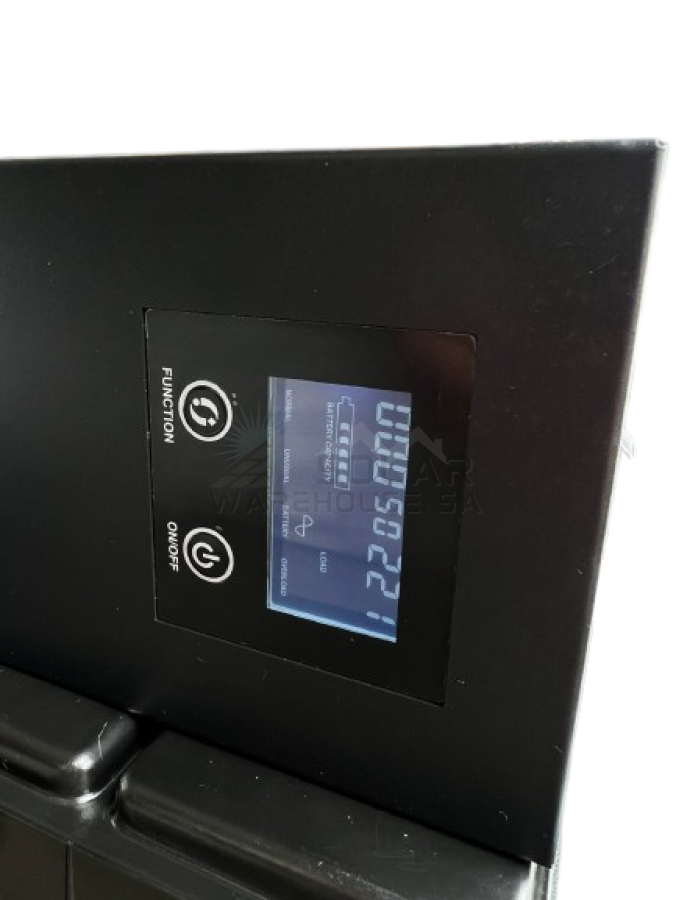

Please note the battery bars on the inverter display will even drop one bar if the battery level drops by 1% , In order to calculate your battery voltage precisely please use a multimeter.

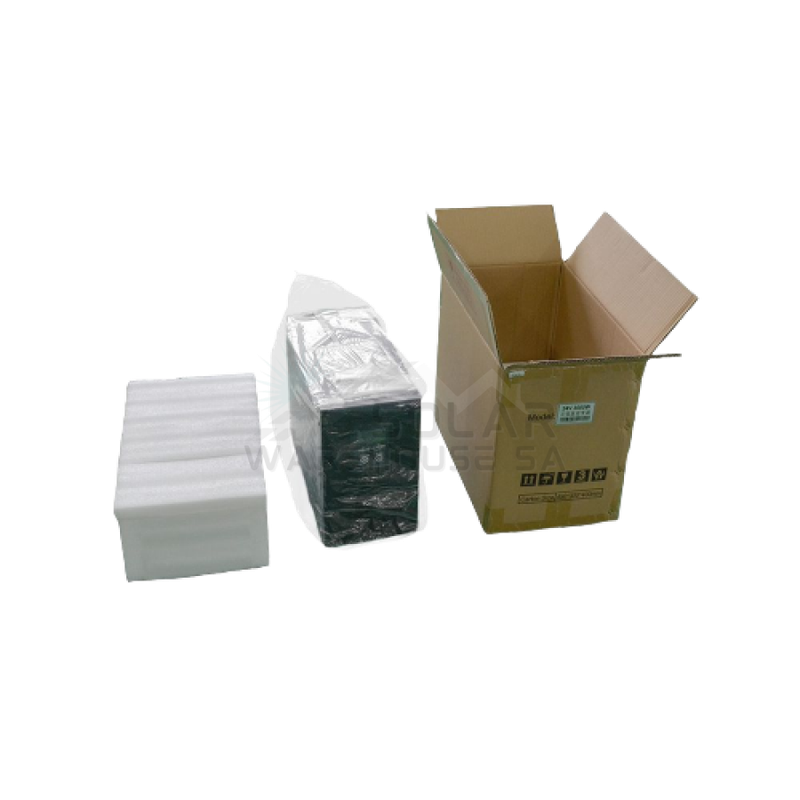

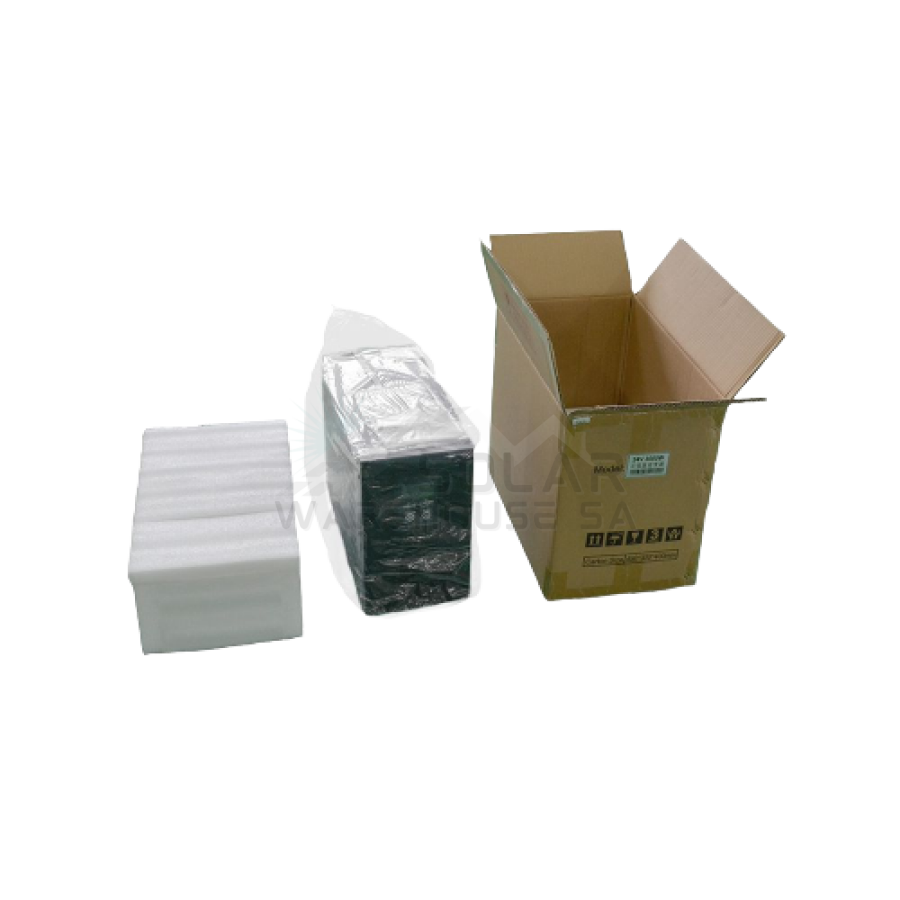

Package Include:

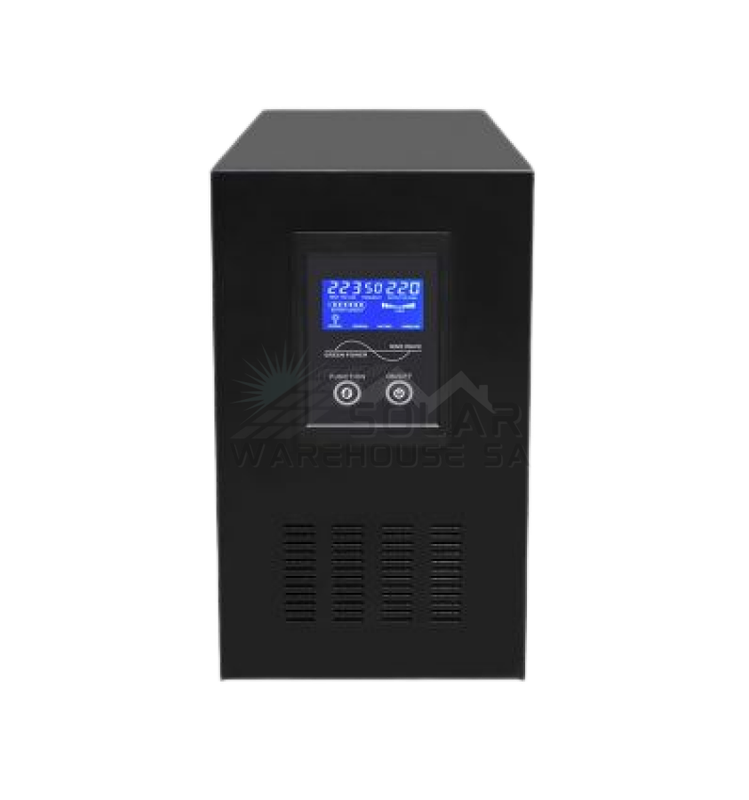

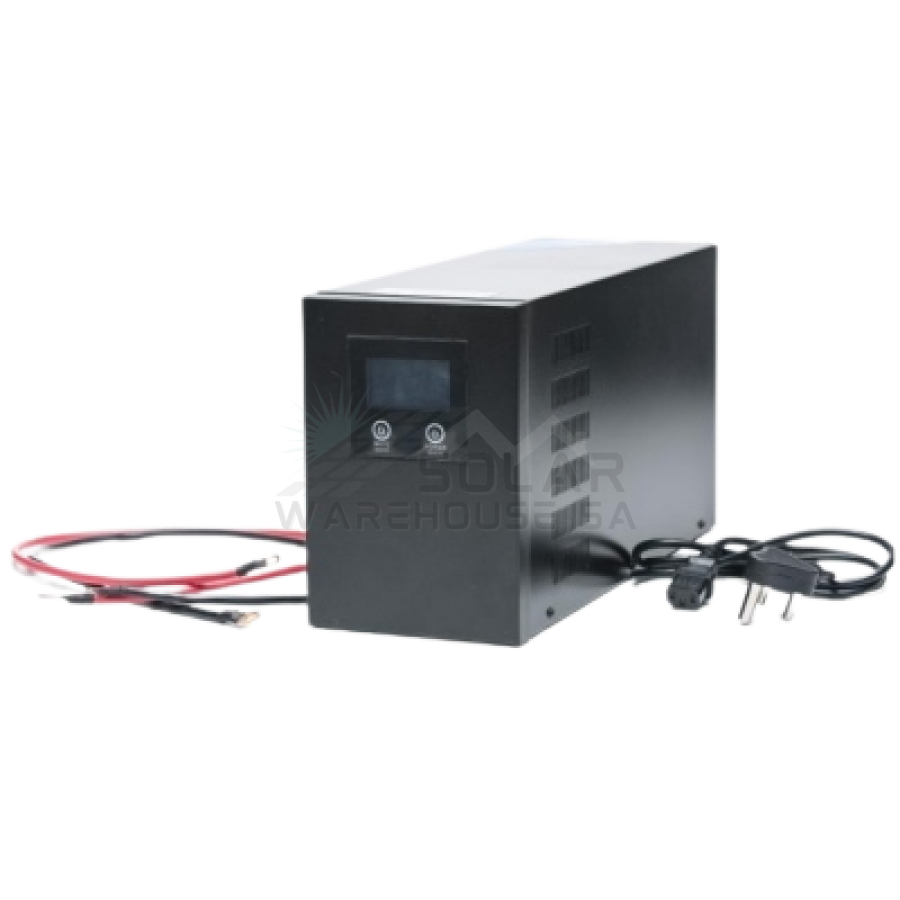

1x IN1500 ECCO 12V Pure Sine Wave Solar Inverter
2x Battery Cables
1x Kettle Plug
1 Year Warranty Card
