150m HDMI EXTENDER over CAT5e / CAT6 via TCP/IP
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Frankenwald, Sandton
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Thursday, 23 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code

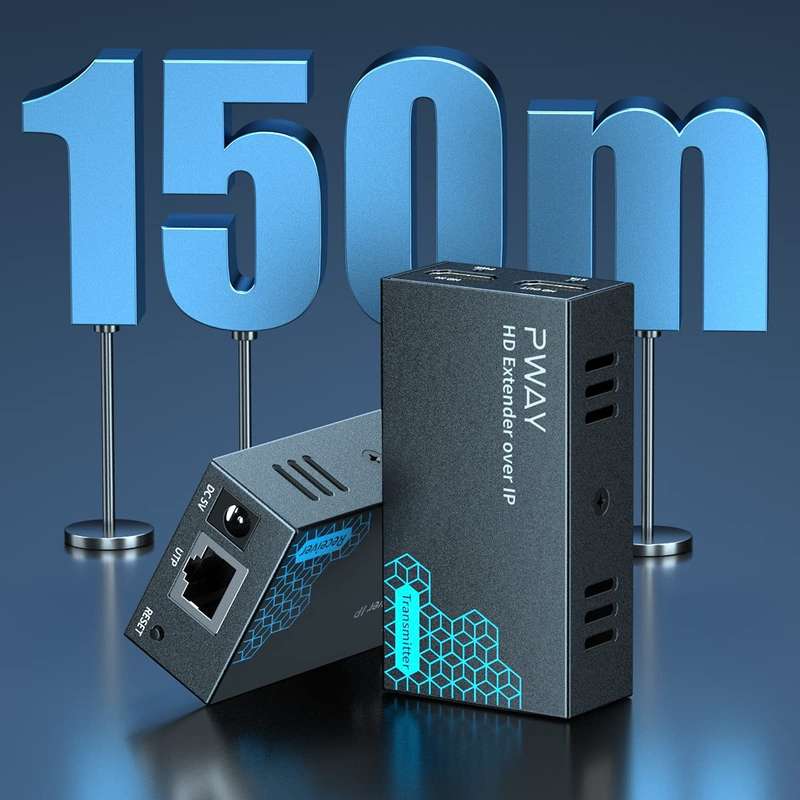

GW-A-PW-DT243 150m HDMI Extender Kit
Bob Shop ID
609556755
NOTE: Item to be used with high quality solid copper cable only.
PRODUCT DESCRIPTION
The H.264 HDMI extender transmit HD video and audio over one cat5e/cat6 cable over TCP/IP standard, support one to many applications over Ethernet. The equipment has excellent image processing and transmission capacity which makes trasmission to be smooth and steady.

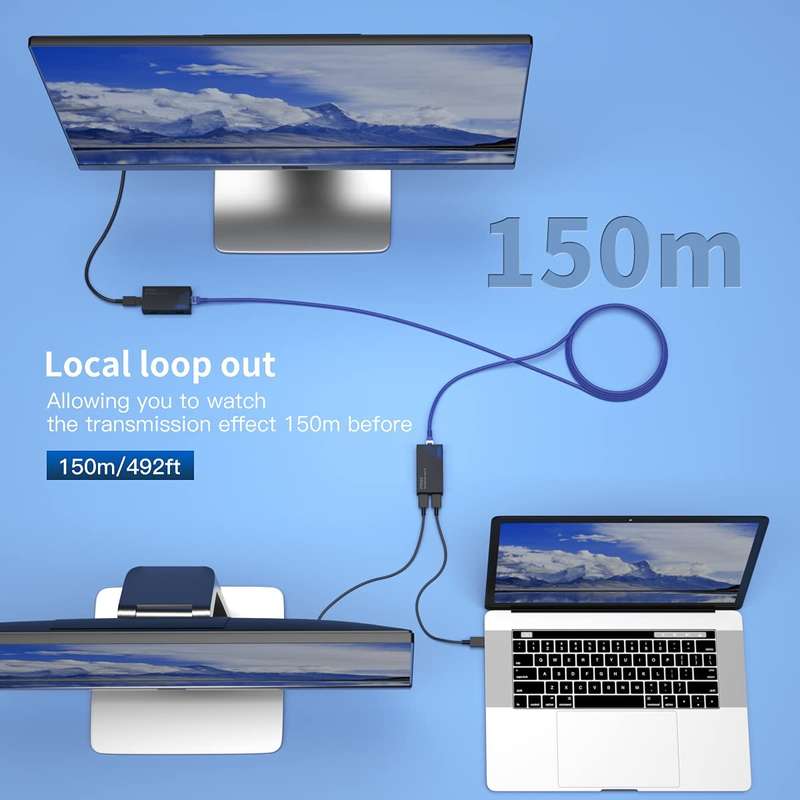

- Transmits HDMI video and audio signals up to 150M over a single CAT6 cable
- Support video resolution max up to 1080p@60Hz

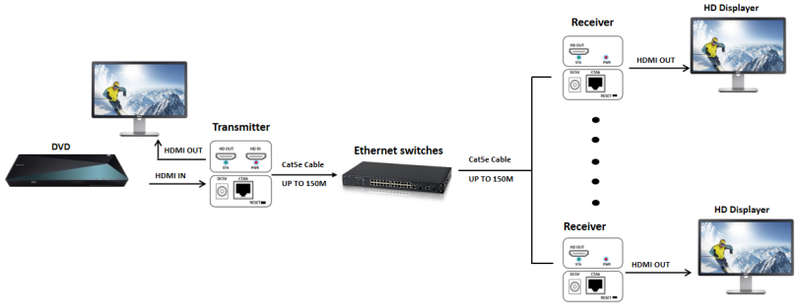

- Support iver TCP/IP, one to many application with Ethernet switch/router
- Compliance with HDMI 1.3 and HDCP 1.2 standard
- Built-in aoutomatic adjustment system, makes the image smooth, clear and stable
- Built-in ESD protection system
- Easy installation, plug and play
PRODUCT SPECIFICATIONS
| VIDEO | |
| Standards | HDMI 1.3, HDCP 1.2 |
| Compressd Format | H.264 |
| Max. pixel clock | 165MHz |
| Max. data rate | 6.75Gbps |
| Resolution | Max 1920 x 1080p@60Hz |
| Connector | HDMI-A |
| Impendance | 100Ω |
| ETHERNET | |
| Interface | RJ45 |
| Transmission Distance | CAT6 - 150M |
| OTHER | |
| Power Supply | DC 5V |
| Power dissipation | Max 6W |
| Temperature | Operating 5c ~ +70C |
| Humidity | Operating 5% ~ 90% |
| Dimensions | 94 x 89 x 17mm |
| Package List |
|
