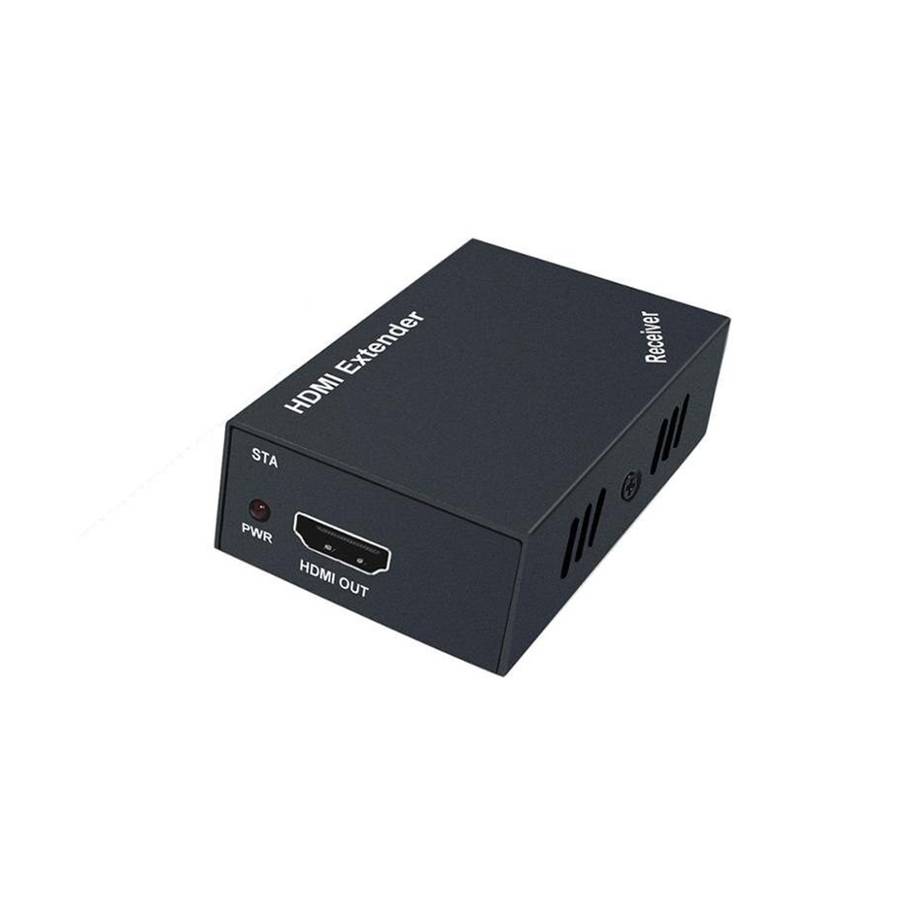

150m HDMI over CAT5e / CAT6 via TCP/IP *RECEIVER ONLY*

*RECEIVER ONLY* - To be used with https://www.geewiz.co.za/hdmi/140337-150m-hdmi-extender-over-cat5e-cat6-via-tcpip.html

Please note: Item to be used with high quality solid copper cable only.

The H.264 HDMI extender transmit HD video and audio over one cat5e/cat6 cable over TCP/IP standard, support one to many applications over Ethernet.
The equipment has excellent image processing and transmission capacity which makes transmission to be smooth and steady.

- Receives HDMI video and audio signals up to 150M over a single CAT6 cable
- Support video resolution max up to 1080p@60Hz

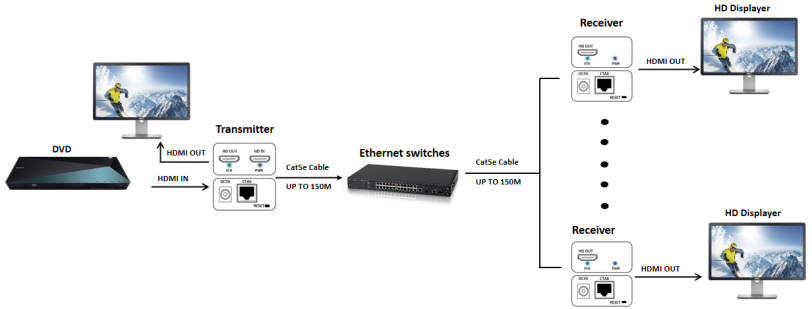

- Support over TCP/IP, one to many application with Ethernet switch/router
- Compliance with HDMI 1.3 and HDCP 1.2 standard
- Built-in automatic adjustment system, makes the image smooth, clear and stable
- Built-in ESD protection system
- Easy installation, plug and play

Specifications

VIDEO

- Standards HDMI 1.3, HDCP 1.2
- Compressed Format H.264
- Max. pixel clock 165MHz
- Max. data rate 6.75Gbps
- Resolution Max 1920 x 1080p@60Hz
- Connector HDMI-A
- Impendence: 100

ETHERNET

- Interface RJ45
- Receiver Distance: 150M

OTHER

- Power Supply: DC 5V
- Power dissipation: Max 6W
- Temperature: Operating 5c ~ +70C
- Humidity: Operating 5% ~ 90%
- Dimensions: 94 x 89 x 17mm

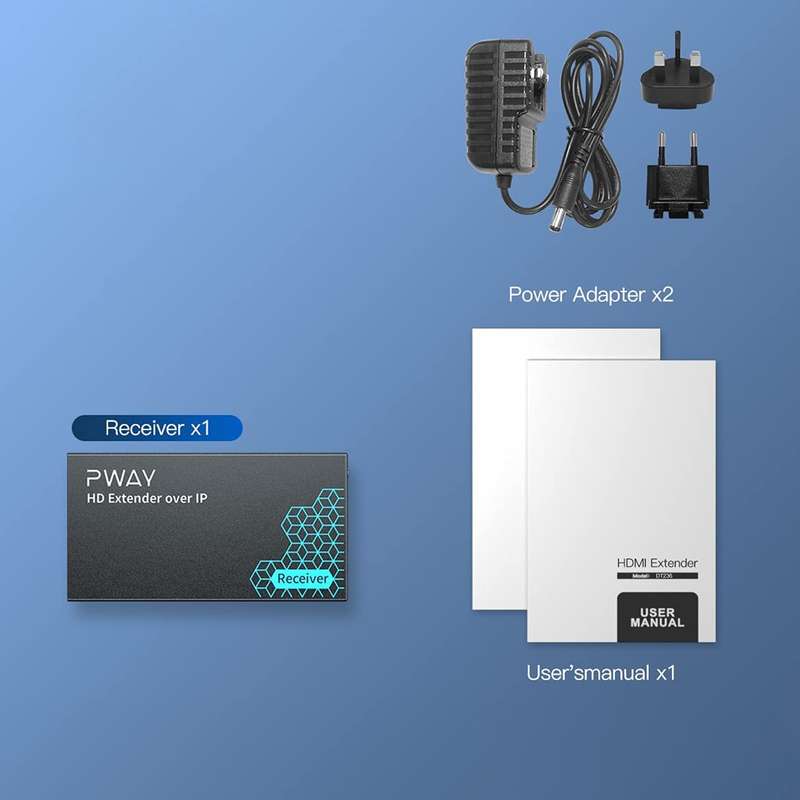

What's in the box

- 1x HDMI Receiver
- 1x Power Adapter
- 1x User Manual
