please notice : after we test out this product , the WAN does not have dail up setting, the WAN must set auto connect. the USB router must not have password protect the sim card. this product is specially designed for travelling.

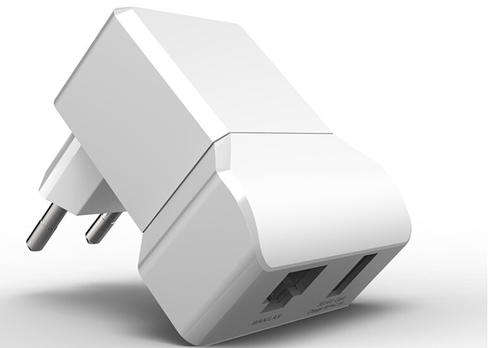

This is a professional 150Mbps Hotel Wired to Wireless&3G/4Gwireless router, the original creation D/A temperature compensated auto frequency control technology(TAFC), it has solved the common failing of the traditional wifi signal and other wifi products that easily drop the network, make sure the lasting stability to ensure that the WiFi signal is not dropped. It is also a plug and play 3G/4G WiFi router, through an external USB 3G/4G network card, automatically connects to the 3G/4G wireless data networks, which enables customers to create a 3G/4G to WiFi "hot spots", so that more than one person at the same time can enjoy the simple, convenient and efficient WiFi networks.
Features:
Professional Hotel WiFi equipment & 3G/4G Wireless Router.
Under wireless router mode, support wired to wireless Wifi.
Detachable design, suitable for various environment use such as home, car, travel.
USB power supply interface, very convenient to charge (e.g.to be charged by power bank).
With 2.1A USB charger, can be used for fast charge of most smart phones and Tablet PCs.
Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability and WiFi signal not dropped.
Support WEB remote firmware upgrade, it can get the latest firmware free.
Support local WEB management, Chinese and English configuration interface.
Original creation VDNS virtual domain configuration technology to solve the user's trouble of configuration.
Support connecting more than 20pcs WiFi terminal at the same time.
Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism.
Support 802.11n WiFi transmission protocol, 150Mbps rate of transmission.
The transmission distance (without obstacle) is up to 100m.
Environmental friendly, safe and secure, Mini and portable.
Specifications:
| Hardware Specifications: |
| Protocol Standard | IEEE 802.11g/IEEE 802.11b/IEEE 802.11n |
| Rate of transmission | 150Mbps |
| Interface | 1 * USB 2.0 port, connect USB 3G network cards or external charging;
1 * 10/100 M adaptive LAN/WAN Port |
| Button | Reset button (press 5 seconds) |
| LED | Status instruction:
WiFi Status lights(blue light);
3G connection status lights (green light means 3G dialed successfully);
WiFi connection state(light green for success);
Ethernet connection status ( green light after connected to ethernet cable) |
| Antenna | Built-in intelligent omnidirectional antenna |
| Item size | 63mm * 55mm * 26.7mm/ 2.5 * 2.2 * 1.1in (L x W x H) |
| Item weight | 20g/ 0.7oz |
| Package size | 13 * 9 * 4.5cm/ 5.1 * 3.5 * 1.8in |
| Package weight | 90g/ 3.2oz |
| Wireless Related: |
| Basic Functions | WiFi switch;
SSID hidden switch;
Channel option: 1-14;
Wifi mode option: 11b/g/n, 11b/g, 11b, 11n |
| Working Mode | WiFi router mode:
Hotel Wired to WiFi, plug and play;
3G/4G router mode: Plug and play, no need any configuration, automatically connect to 3G/4G wifi data network. |
| Wireless Security | 64/128/WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism |
| System Function | Reboot device
Reset factory
Administrate account and password revise
Firmware upgrade |
Package list:
1 * Wireless Router
1 * Power Adapter
1 * User Manual
