Product details

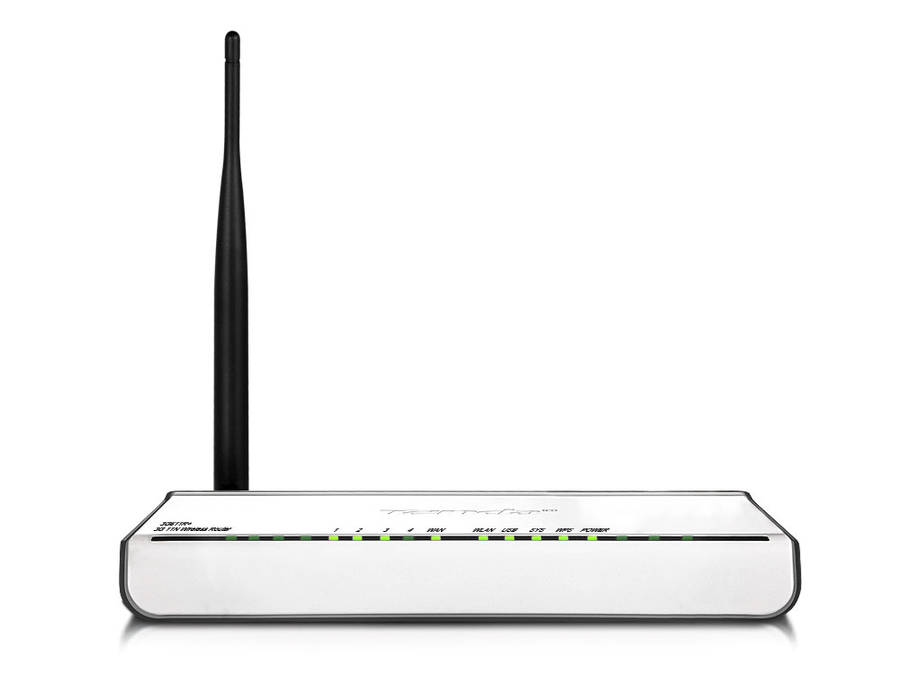

150Mbps Wireless N 3G Router - Tenda Technology
3G611R+ is a 802.11n compliant 3G router that allows users to access 3G networks. Simply insert a compatible UMTS/HSPA/EVDO USB adapter into the router to share your mobile broadband Internet connection through a secure, high-speed 802.11n wireless network. A 10/100 Ethernet WAN port allows you to access a DSL/Cable modem as the primary backup connection.
Equipped with one external 5dBi antennas, this router performs faster file transfers and farther coverage enabling greater wireless signals across your home. The 3G611R+ also includes a 4-port 10/100Mbps Ethernet switch for extra users.
In addition, the wireless adapter supports advanced WEP, WPA and WPA2 security modes that ensure you will be able to share files and surf Internet within a secured connection. The Wi-Fi Protected Setup? (WPS) feature enables devices to quickly establish a secure connection to an access point or wireless router, eliminating complex encryption codes.
This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is available. It also can be installed on buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting
Always Connected
Create instant WiFi hotspots at remote locations, virtually anywhere DSL and cable aren't available
Compatibility
Compatible with most major UMTS/HSPA/EVDO USB modems, over 150 types
Wired or Wireless Internet Access
Enables internet access through 3G wireless broadband networks, existing WiFi (WISP), or Ethernet -based data services ( Cable / DSL )
WiFi AS WAN
Receives a public WiFi signal and uses it to create internet access, allowing you to securely share among multiple users
N Speed
Delivers up to 150Mbps wireless speed, 4X faster than ordinary wireless G devices
Better Wireless Range
Coverage of up to 100 meters indoor and 300 meters outdoor ,3X farther than ordinary wireless G devices
Advanced Security
Prevents unwanted access to connected computers with WPA/WPA2
Easy To Use
Connects all your WiFi enabled devices by simply plugging in your activated USB data modem
3G / HSDPA USB Modem Compatibility List
| Hardware Features | ||
| Standards | 802.11n, 802.11g, 802.11b, 802.3, 802.3u,802.1p | |
| Band | 2.4GHz | |
| Wireless Rate | 150Mbps | |
| Interface | 1 10/100M auto-negotiation RJ45 WAN port (Auto MDI/MDIX) 4 10/100M auto-negotiation RJ45 LAN ports (Auto MDI/MDIX) | |
| Button | Reset | |
| LED | 3G Router/AP/Wireless Router/LAN/WAN/WPS | |
| Antenna | Detachable 3dBi antenna | |
| Power | AC 110~240V DC 12V 1.5A | |
| Dimensions (LxWxH,mm) | 190mm×122.2mm×32.9mm | |
| Wireless Features | ||
| Basic Features | Channel | 11 channels |
| Channel Width | 20Mhz, 40Mhz | |
| Transmit Power | Max. 20dbm | |
| Working Modes | 3G wireless Router, AP, wireless signal amplifier and wireless Router | |
| Wireless Security | WEP,WPA-PSK,WPA2-PSK,WPA,WPA2 | |
| Software Features | ||
| Internet Connection Type | 3G/ Dynamic/Static IP/PPPoE | |
| DHCP | DHCP server | |
| Security | LAN access control; MAC address-based access control; Built-in firewall; URL Monitor | |
| Bandwidth Control | QoS (Quality of Service); WMM | |
| DDNS | Yes | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0â ~ 40â |
| Storage Temperature | -40oC ~ 70oC | |
| Operating Humidity | 10% ~ 90% RH non-condensing | |
| Storage Humidity | 5% ~ 90% RH non-condensing | |
| Minimum System Requirement | Computer with: Internet Explorer 5.5 or Firefox 1.0 Higher CD Drive Network Adapter | |
| Package Contents | 3G611R+ 11N Wireless Router with Detachable Antenna Power Adapter Quick Installation Guide Software CD (User Guide included) | |
| Certificates | FCC,RoHS,CE(Wireless),WEEE | |
