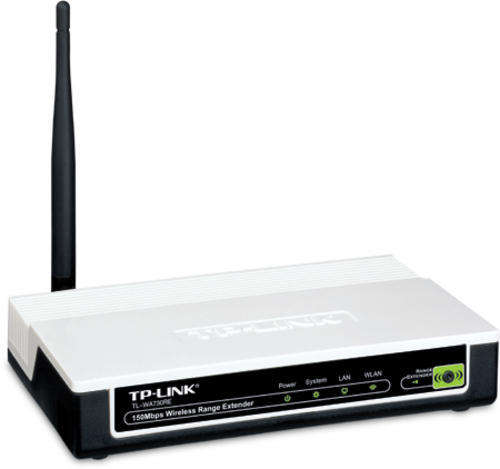

150Mbps Wireless Range Extender
HARDWARE FEATURES | |
---|---|
Interface | 1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX) |
Button | Reset Button Range Extender Button |
External Power Supply | 9VDC / 0.85A |
Wireless Standards | IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) | 5.9 x 3.9 x 1.1 in. (150 x 100x 28mm) |
Antenna Type | 4dBi, Detachable Omni Directional (RP-SMA) |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
EIRP | <20dBm (EIRP) |
Reception Sensitivity | 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Wireless Modes | Range Extender / AP Mode |
Wireless Functions | WDS Bridge, Wireless Statistics |
Wireless Security | SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption |
Advanced Functions | Throughput Monitor, DHCP Server |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-WA730RE 1 detachable Omni directional antenna Power supply unit Resource CD Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC OS, NetWare, UNIX or Linux. |
Environment | Operating Temperature: 0âÂÂÂÂ~40â (32âÂÂÂÂ~104âÂÂÂÂ) Storage Temperature: -40âÂÂÂÂ~70â (-40âÂÂÂÂ~158âÂÂÂÂ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
