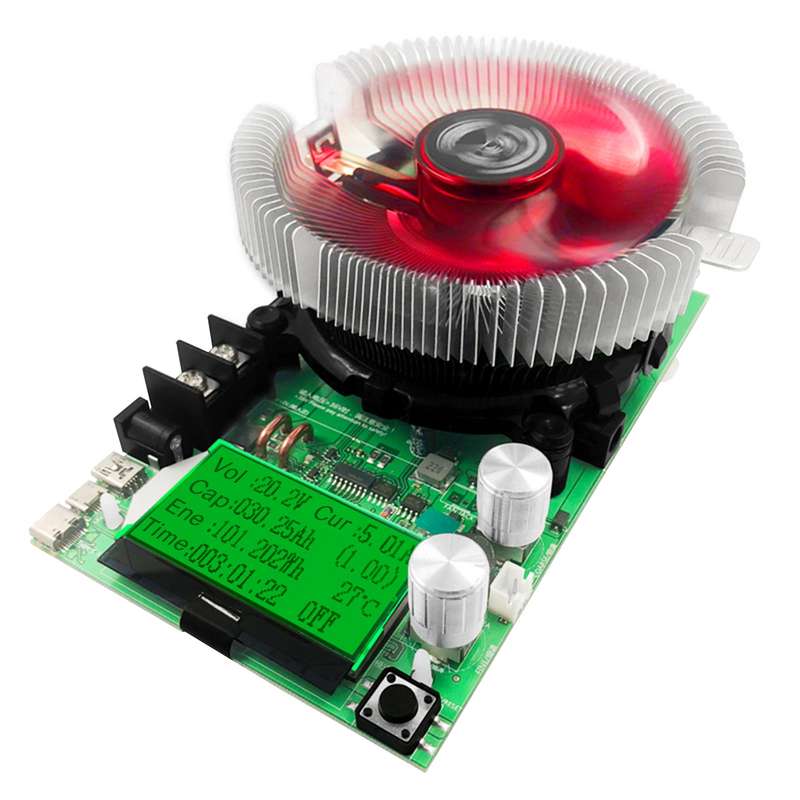

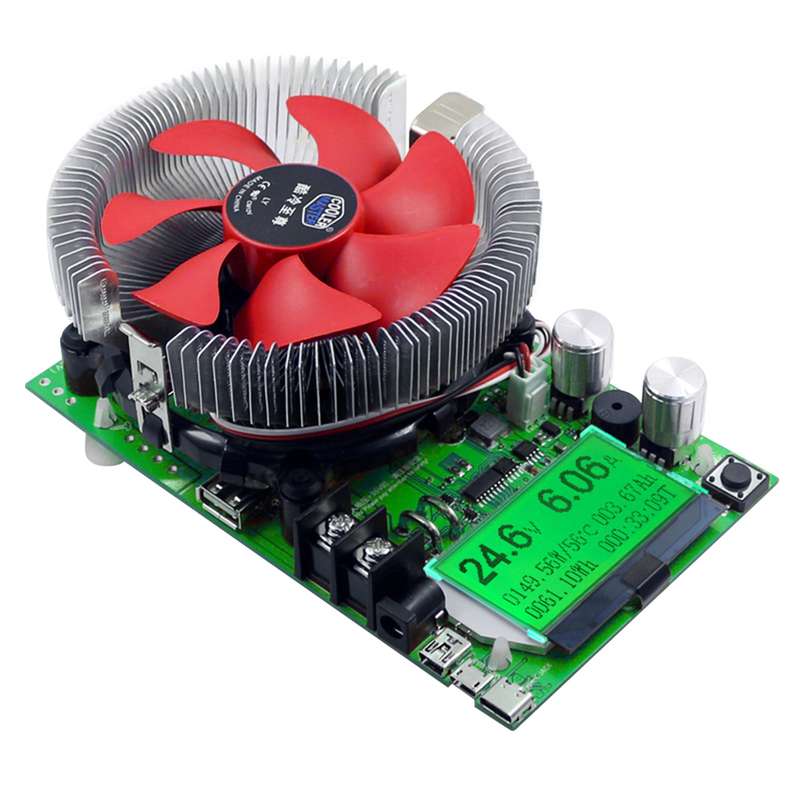

150W 200V 20A Electronic Load Tester Digital LCD Screen Electronic Adjustment Constant Load Me

Electronic load tester can monitor voltage, current and other data of DC power adapters, USB and Type C devices. It can also complete discharging and aging, and test the capacity of the power bank. With cooling fan, it has rapid heat dissipationￂﾠ and can be used for a long time.

Features:
[Electronic Load Tester] -- 200V wide voltage, 20A large curren, 150W or 180W discharging power for option. It can monitor Voltage, Current, Capacity, Electric Energy, Temperature, Discharging Time and other data of the DC power adapters, USB and Type C devices.
[Multifunction] -- It can accomplish discharging and aging, and test the capacity of the power bank.
[2-Wire Connection] -- Comes with a pair of alligator clip test line, easy to wire for testing.
[Digital LCD Screen] -- Large screen provides clear wide visual display, with green backlight for easy reading.

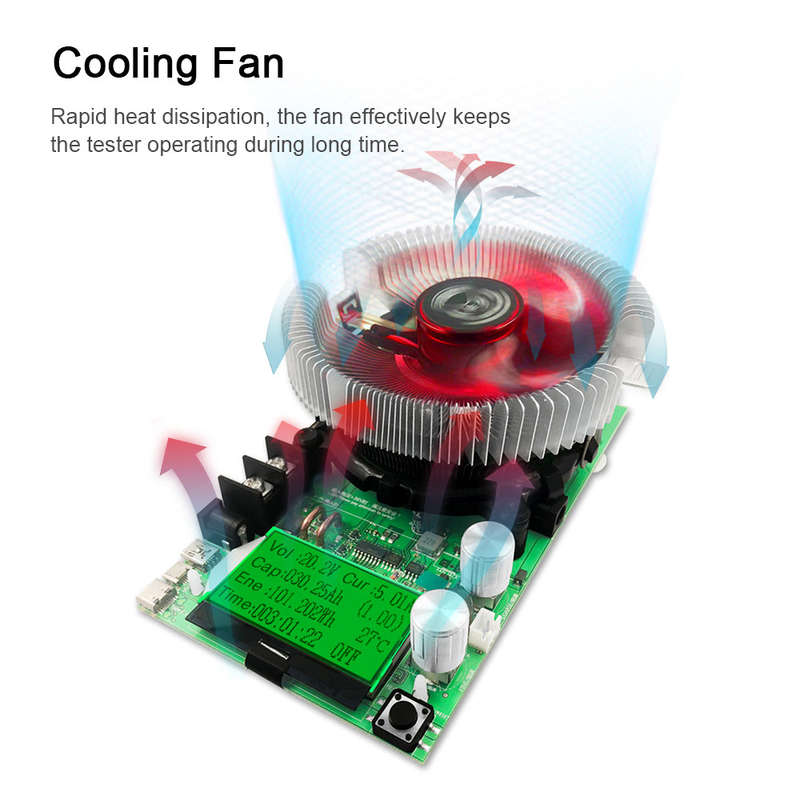

[Cooling Fan] -- Rapid heat dissipation, the fan effectively keeps the tester operating during long time.

Specifications:

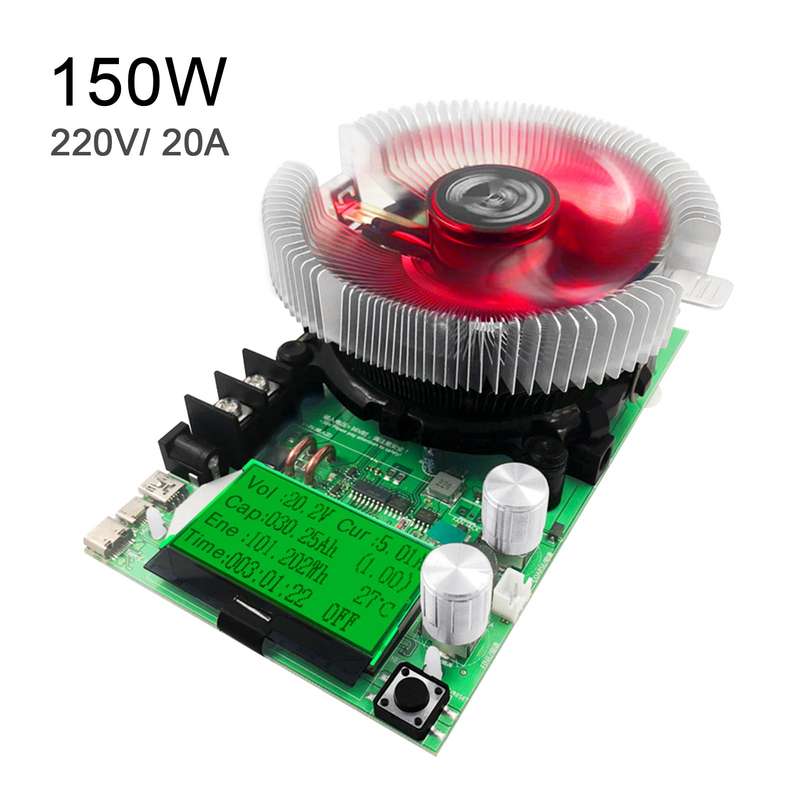

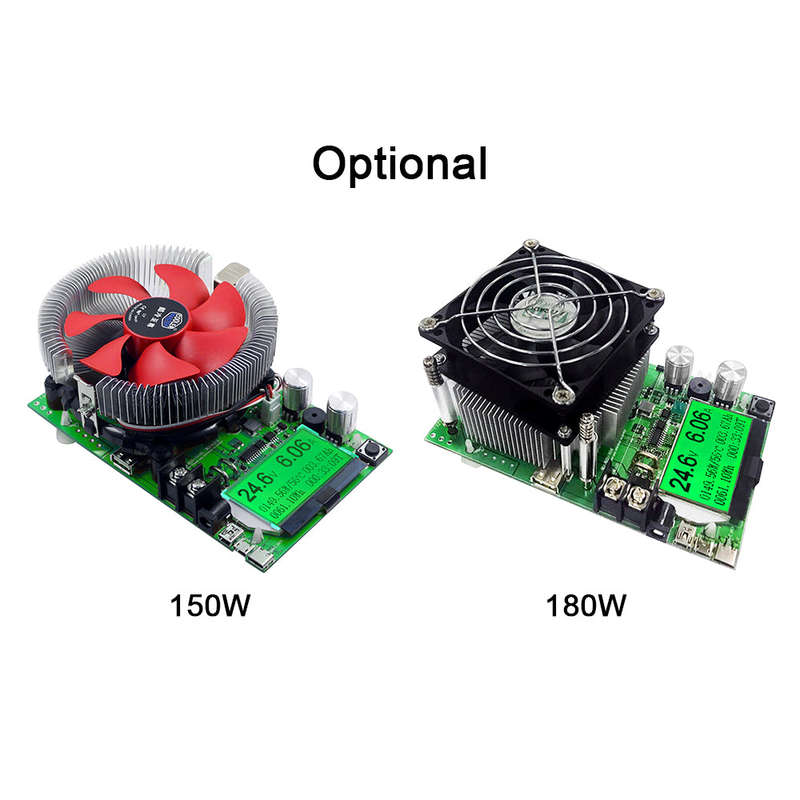

Power: 150W/ 180W (Optional)
Plug: US Plug + EU Connector
Material: PCB
Screen: Digital LCD Screen, Green Backlight
Input/ Output Interface: 100A Large Current Tightening-Type Terminal
Voltage Measuring Range: 0.00V~200V; Accuracy 0.01V
Current Measuring Range: 0.00~20A; Accuracy 0.01A
Capacity Range: 0~999.999Ah; Accuracy 0.01Ah
Electric Energy Range: 0~9999.9Wh; Accuracy 0.01Wh
Power Measuring Range: 0000.00~150W/ 180W; Accuracy 0.01W
Resistance Measuring Range: 1~999.9ￎﾩ; Accuracy 0.01ￎﾩ
Temperature Measuring Range: 0~99￢ﾄﾃ; Accuracy 1￢ﾄﾃ
Maximum Timing: 999h 59min 59s; Accuracy 1s
Countdown Timer: 0-24h (Settable)
Small Current Standby Prompt: ￯ﾼﾜ2W/0.5h; it starts to time when ￯ﾼﾞ0.5W
Power Supply: 4~30V DC Voltage
Refresh Time: ￯ﾼﾞ500ms/time
Measuring Rate: about 0.5time/s
Over-voltage Prompt Setting Range: 1~200V
Low-voltage Prompt Setting Range: 0~190V
Over-current Prompt Setting Range: 0.2~100A
Working Environment: -10~+60￢ﾄﾃ, 10%-80% non condensing, 80~106kPa
Item Size: 156.8 * 96.0 * 64.8mm / 6.17 * 3.78 * 2.55in (150W); 156.4 * 96 * 80mm / 6.16 * 3.78 * 3.15in (180W)
Item Weight: 514g / 18.17oz (150W); 500g / 17.64oz (180W)
Package Size: 20.0 * 18.5 * 10.2cm / 7.87 * 7.28 * 4.02in
Package Weight: 650g / 22.93oz

Package List:
1 * Electronic Load Tester
1 * 9V 1A DC Power Adapter (US)
1 * EU Connector
1 Pair of Alligator Clip Test Line
1 * User Manual
