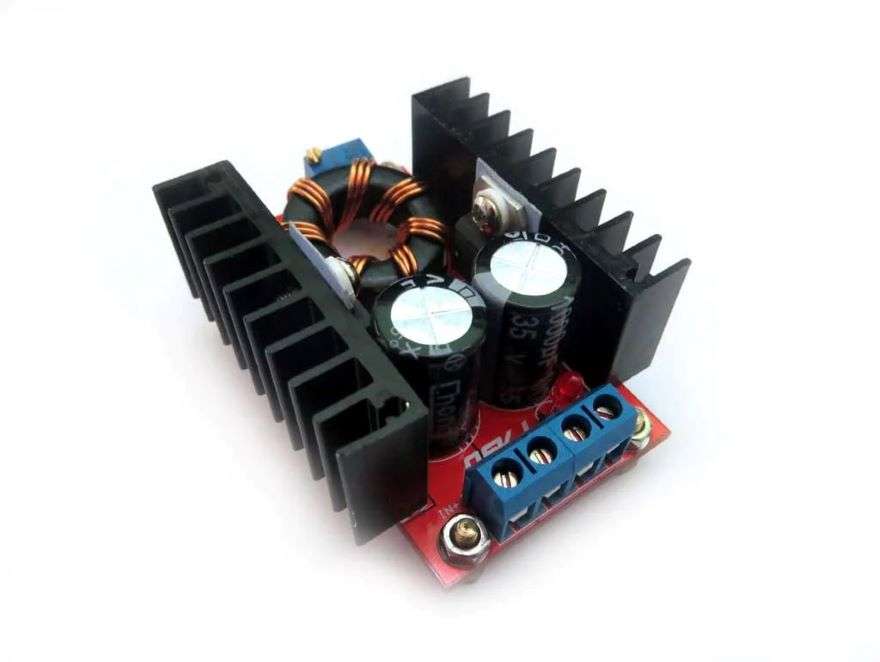

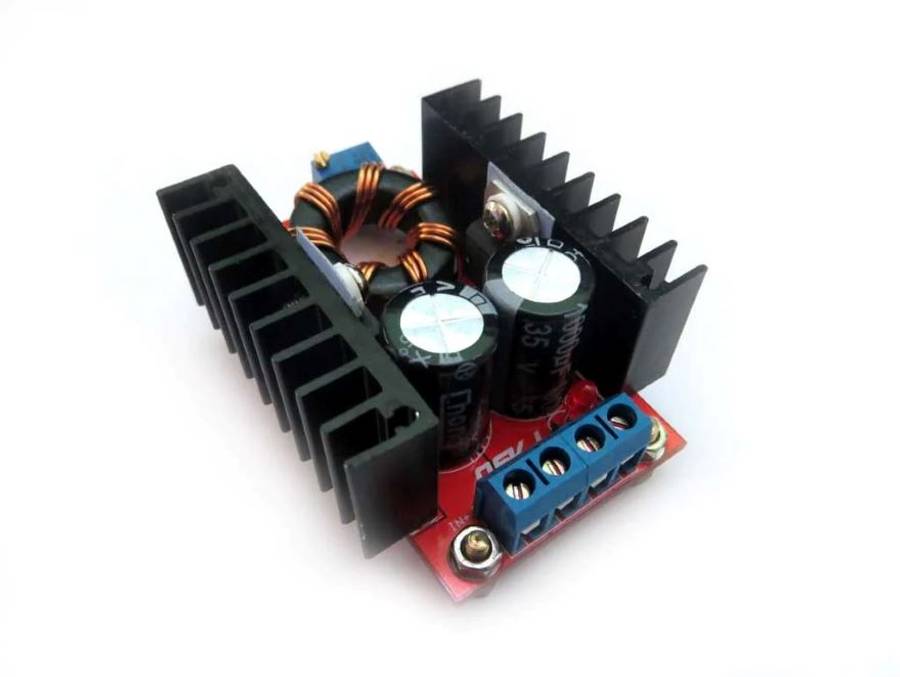

150W Boost Module.

Do you want to take your hobby projects to the next level? Check out our 150W Boost Module! It's perfect for DIY power supply projects that require high efficiency, low ripple regulation, and a wide output voltage range.

A boost module allows you to increase the volts. An example can be a DIY power supply, the input can be 12V and with this module, the output can be raised to 12-32V adjustable. With this unit, you can adjust the volts.

This unit is ideal to build a 19V laptop power supply (between 65W and 90W) that can be powered by a 12V car battery to charge your laptop's battery. The unit is easy to get a higher voltage level than your input voltage by making adjustments to the trim pot.

Please note that the trim pot that is used to adjust the output of the module needs to be turned quite a few times before you can see a change in the output.

Wiring Diagram
