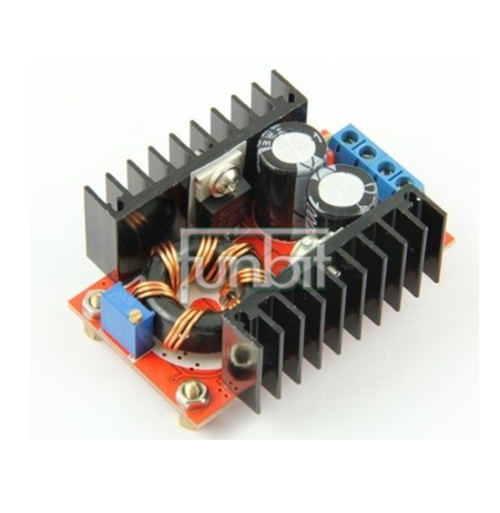

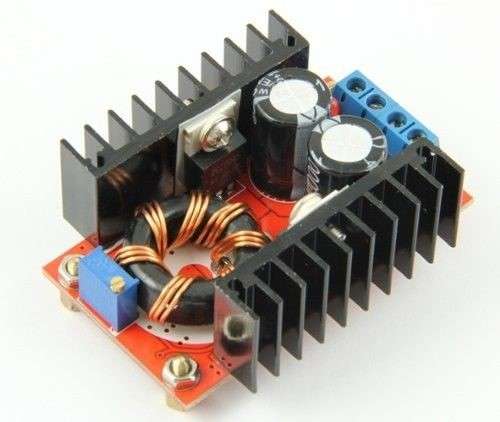

150W DC-DC BOOST CONVERTER 10-32V TO 12-35V 6A STEP UP
Product information
This boost converter is perfect for running and charging a 65W to 90W laptop from a 12V battery when a 220V power outlet is not within reach or when you are on the road. The output voltage is freely adjustable between 12 and 35V to match your laptop power pack. This module can also be used to power other devices.
Note! Please enhance cooling for power in excess of 100W either by fan cooling or swapping out the included heatsinks for larger heatsinks.
Specifications
Converter type: non-isolated step-up module (BOOST)
Input voltage: 10-32V DC
Input current: 10A (max) (Please enhance heat dissipation if more than 10A)
Output voltage: 12-35V (adjustable)
Output current: 6A (max)
Output power: natural cooling 100W (max), enhanced heat dissipation 150W (max)
Conversion efficiency: 94% (measured with Input@16V, Output 19V@2.5A)
Filter ripple: 2% (max) 20MHz bandwidth
Operating temperature: -40°C to +85°C
Full load temperature rise: 45°C
No-load current: 25mA typical
Voltage regulation: +/- 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please install fuse and protection circuits at Input)
Input Reverse Polarity Protection: None (Please install an 8A series diode at the Input)
Size: 65x56.5x23mm
Package includes
1 x 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step Up
