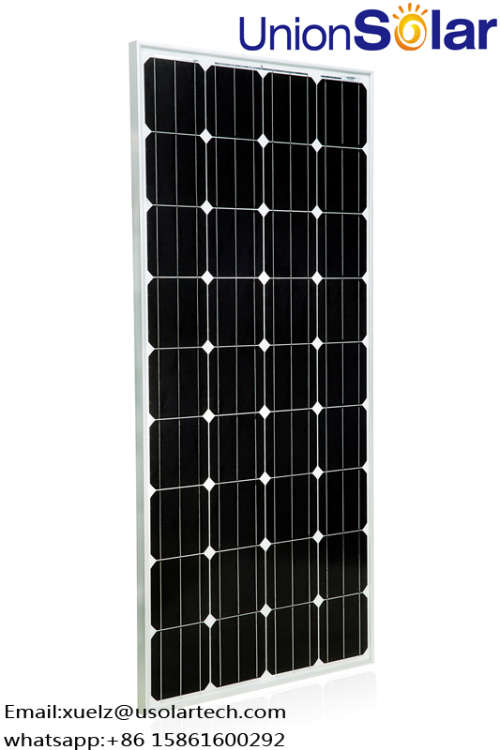

150w Mono Solar Panel
New
R1,200.00
Closed
21 Apr 17 15:42
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Buyer Protection
Product details
1. Electrical Characteristics
(STC:Irradiance 1000w/m2 module temperate 25ºC,AM=1.5)
| Maximum Power (Pmax) | 150w | 155w | 160w | 165w | 170w |
| Open Circuit Voltage (Voc) | 22.4V | 22.5V | 22.6V | 22.7V | 22.8V |
| Maximum Power Voltage (Vmp) | 17.5A | 17.6A | 17.7A | 17.8A | 17.9A |
| Short Circuit Current (Isc) | 9.05V | 9.28V | 9.52V | 9.71V | 9.93V |
| Maximum Power Current (Imp) | 8.63A | 8.81A | 9.04A | 9.27A | 9.50A |
| Module Efficiency (%) | 14.88 | 15.38 | 15.87 | 16.37 | 16.87 |
2 Temperature Coefficients
| Temperature Coefficient of Pmax | -0.4%/ºC |
| Temperature Coefficient of Voc | -0.38%/ºC |
| Temperature Coefficient of Isc | +0.04%/ºC |
