Specifications:

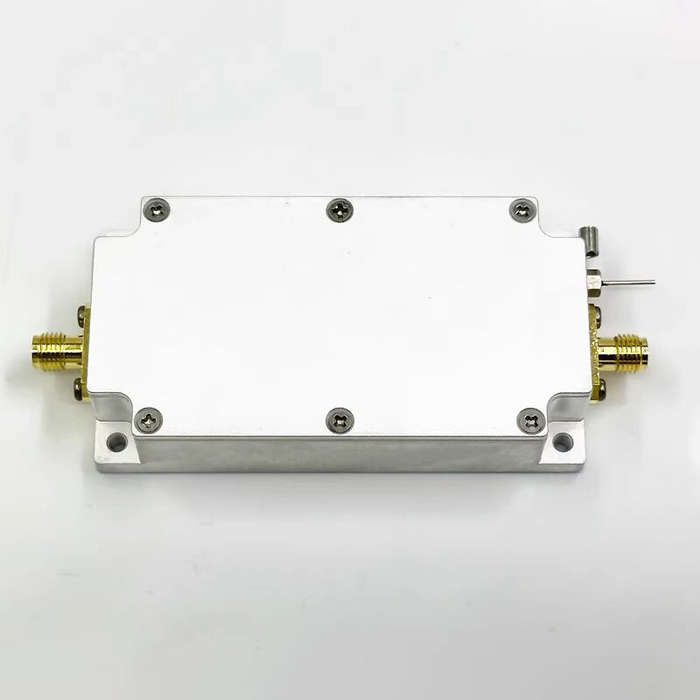

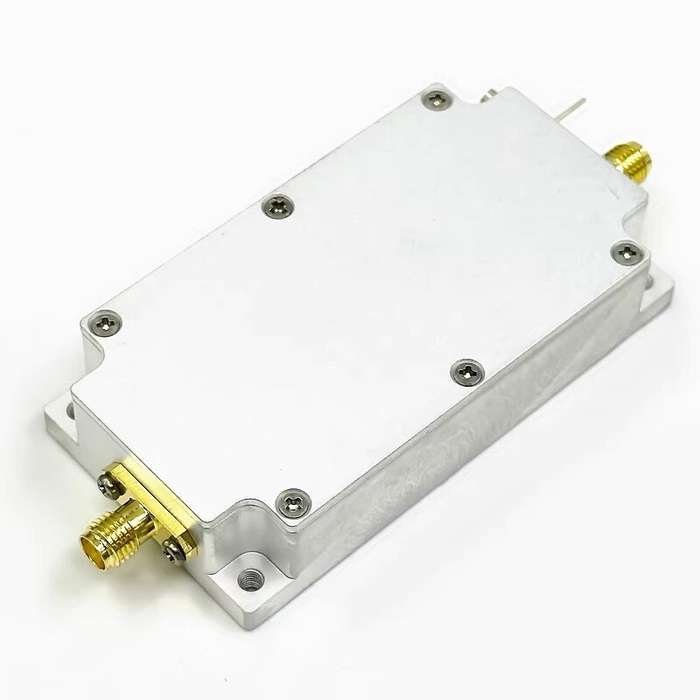

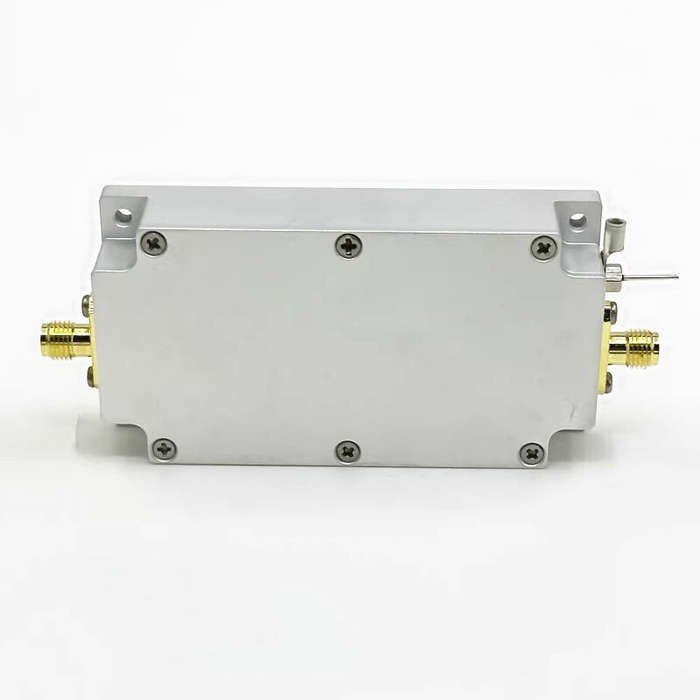

Model: RF Power Amplifier
Working Frequency: 1500-1600MHz (1561MHz, 1575MHz, 1604MHz)
Output Power:
13W (41dBm@24V, RFin=5dBm (3mW))
15W (42dBm@28V, RFin=5dBm (3mW))
20W (43dBm@28V, RFin=7dBm (5mW))
Working Voltage: 20-28V (recommended 24V)
Working Current: 1.7A (depending on the supply voltage)
System Impedance: 50 ohms
Dimensions: 76x40x16.5mm (excluding joints)
Product Weight: 95g
Connector Type: SMA female head (external screw and intern
